Memory Seat Switch Connector End View

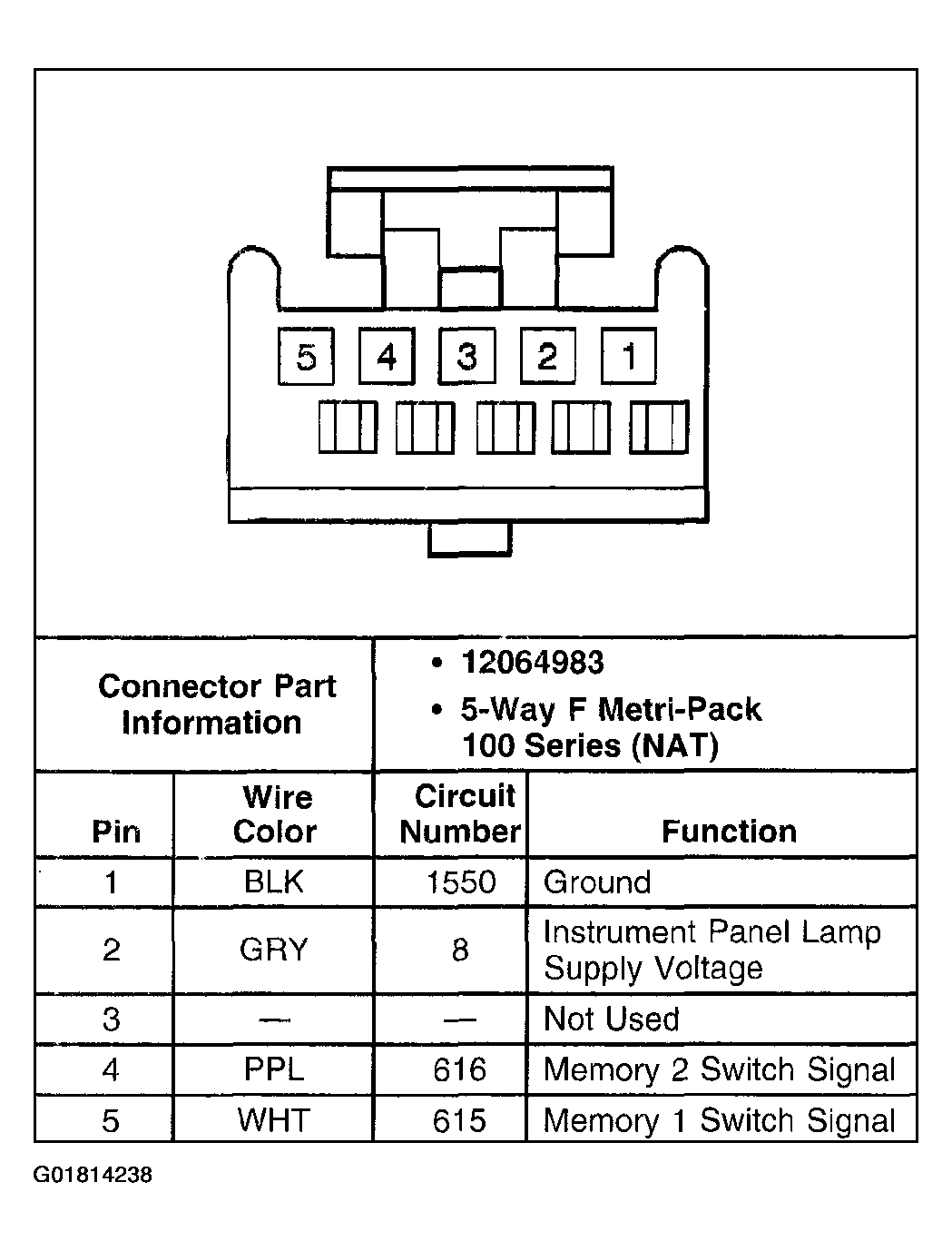

Fig 1: Memory Seat Switch
G01814238Courtesy of GENERAL MOTORS CORP.
