Installation Procedure
WARNING: This page is about a different variant/trim than selected.
NOTE:
Refer to FASTENER NOTICE
.

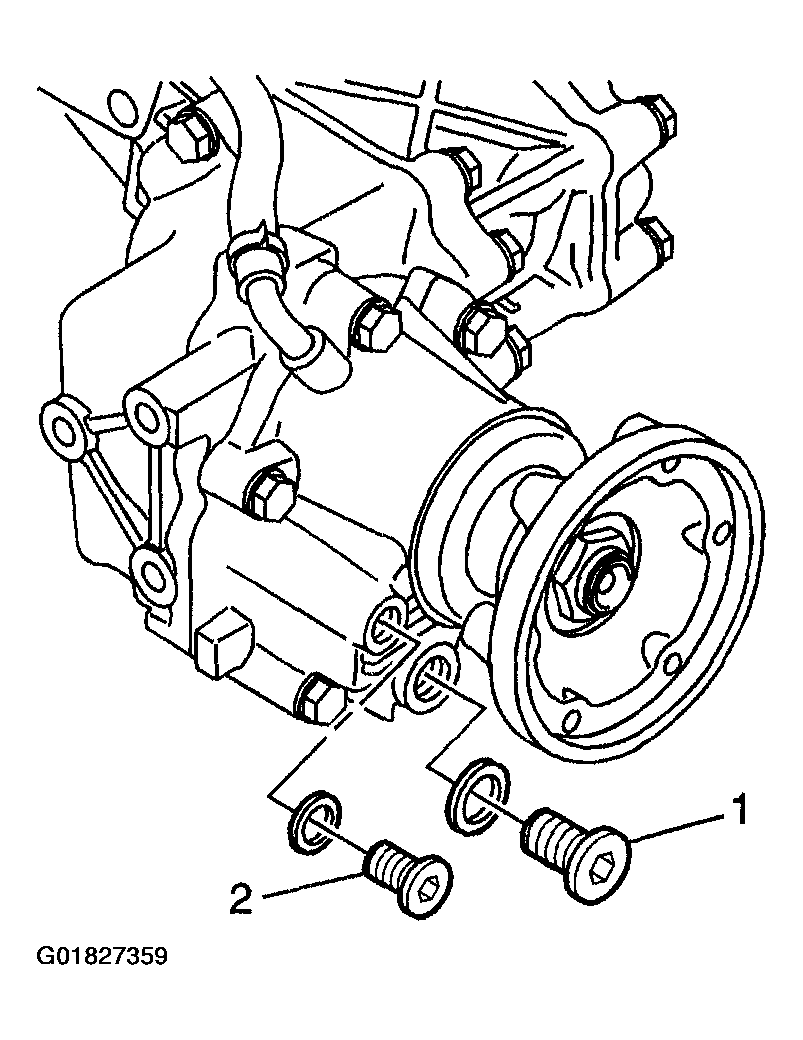

- Install the drain plug (1) and gasket.
Tighten
Tighten the drain plug to 32 N.m (24 lb ft).
- Fill the transfer case with synthetic gear oil GM P/N United States 12378514
Canada P/N 88901045, or equivalent.
- Fill the transfer case to the bottom of the oil fill plug hole.
- Install the oil fill plug (2) and gasket.
Tighten
Tighten the oil fill plug to 32 N.m (24 lb ft).
- Lower the vehicle.
