Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pry the trim cover outward in order to remove the cover from the rain sensor module.
  2. Remove the trim cover from the rain sensor module.

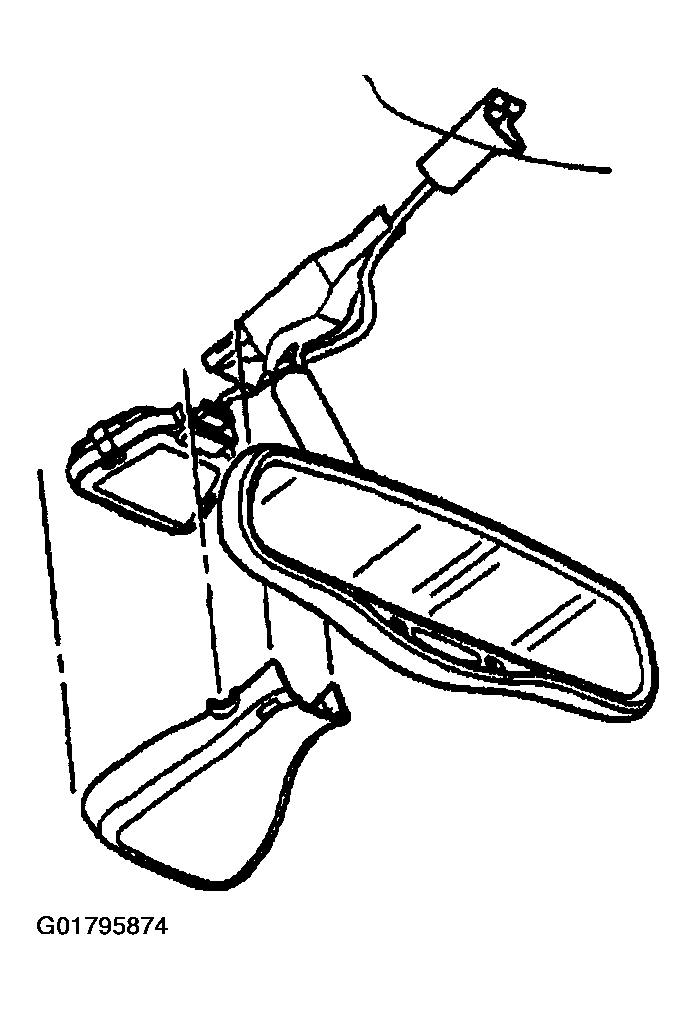

    Fig 1: Removing Trim Cover & Rain Sensor Module
    G01795874Courtesy of GENERAL MOTORS CORP.
  3. Release the windshield coupler retaining clips.
  4. Remove the rain sensor module.
  5. Disconnect the electrical connector from the rain sensor module.

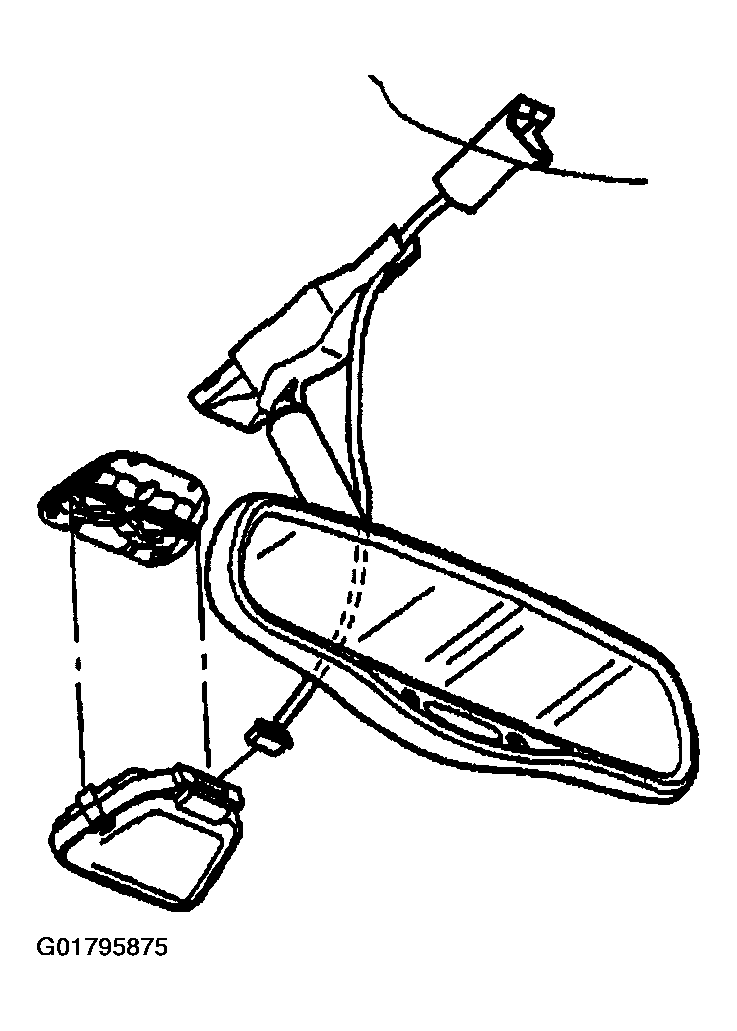

    Fig 2: Removing Windshield Coupler Retaining Clips & Rain Sensor Module
    G01795875Courtesy of GENERAL MOTORS CORP.
