Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headlamp bulb (2) into the headlamp assembly (1).

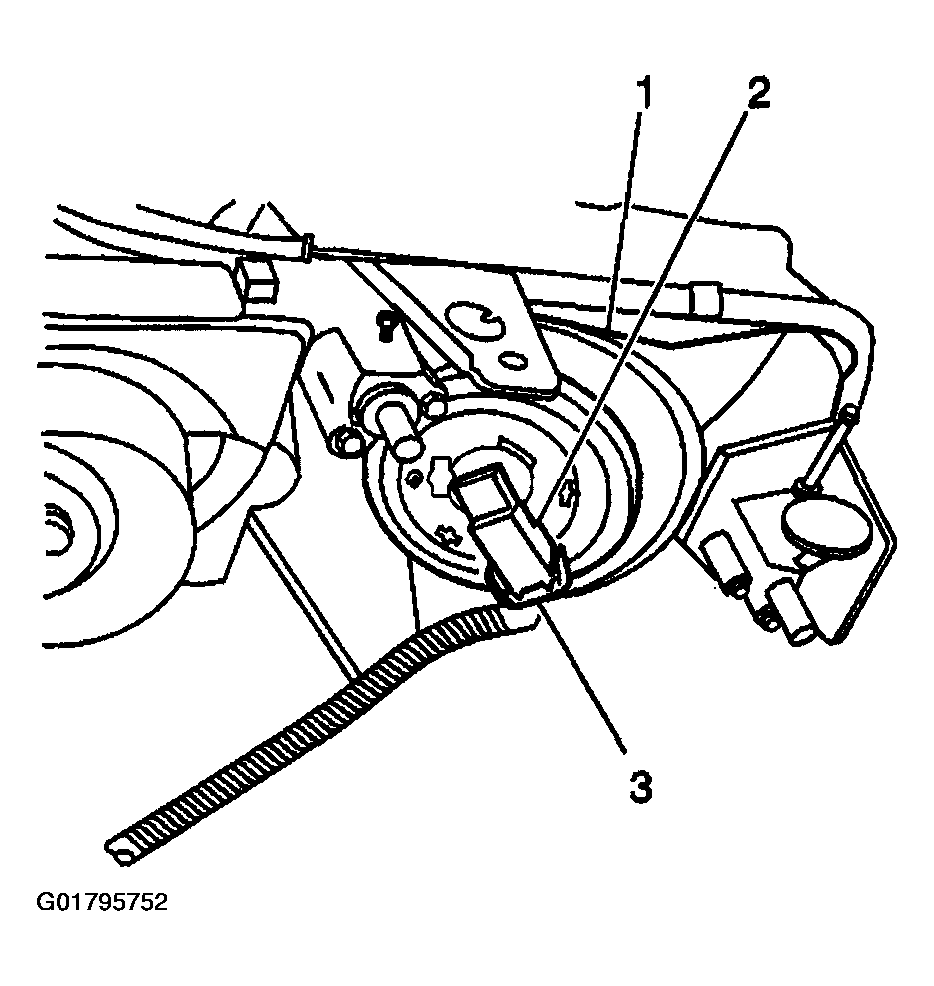

    Fig 1: Installing Headlamp Bulb
    G01795752Courtesy of GENERAL MOTORS CORP.
  2. Turn the headlamp bulb (2) clockwise in order to secure it to the headlamp assembly (1).
  3. Connect the electrical connector (3) to the headlamp bulb (2).
  4. Install the headlamp assembly to the vehicle. Refer to Headlamp Replacement (SLS, w/o TT6, TT7 or TT8)  or Headlamp Replacement (SLS and STS w/TT6, TT7 or TT8) .
