Scan Tool Data List

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

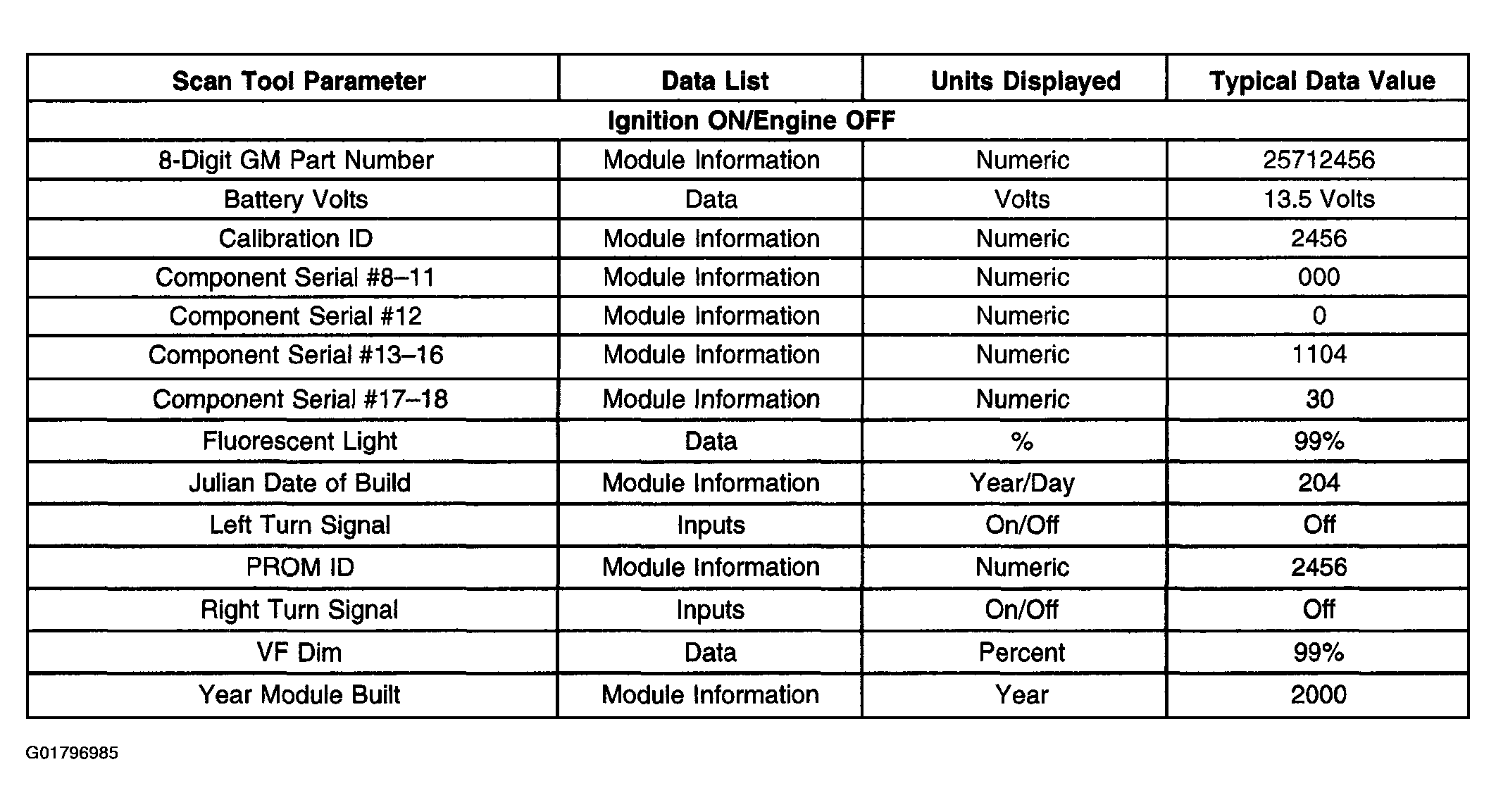

Fig 1: Identifying DIM Data List

Courtesy of GENERAL MOTORS CORP.

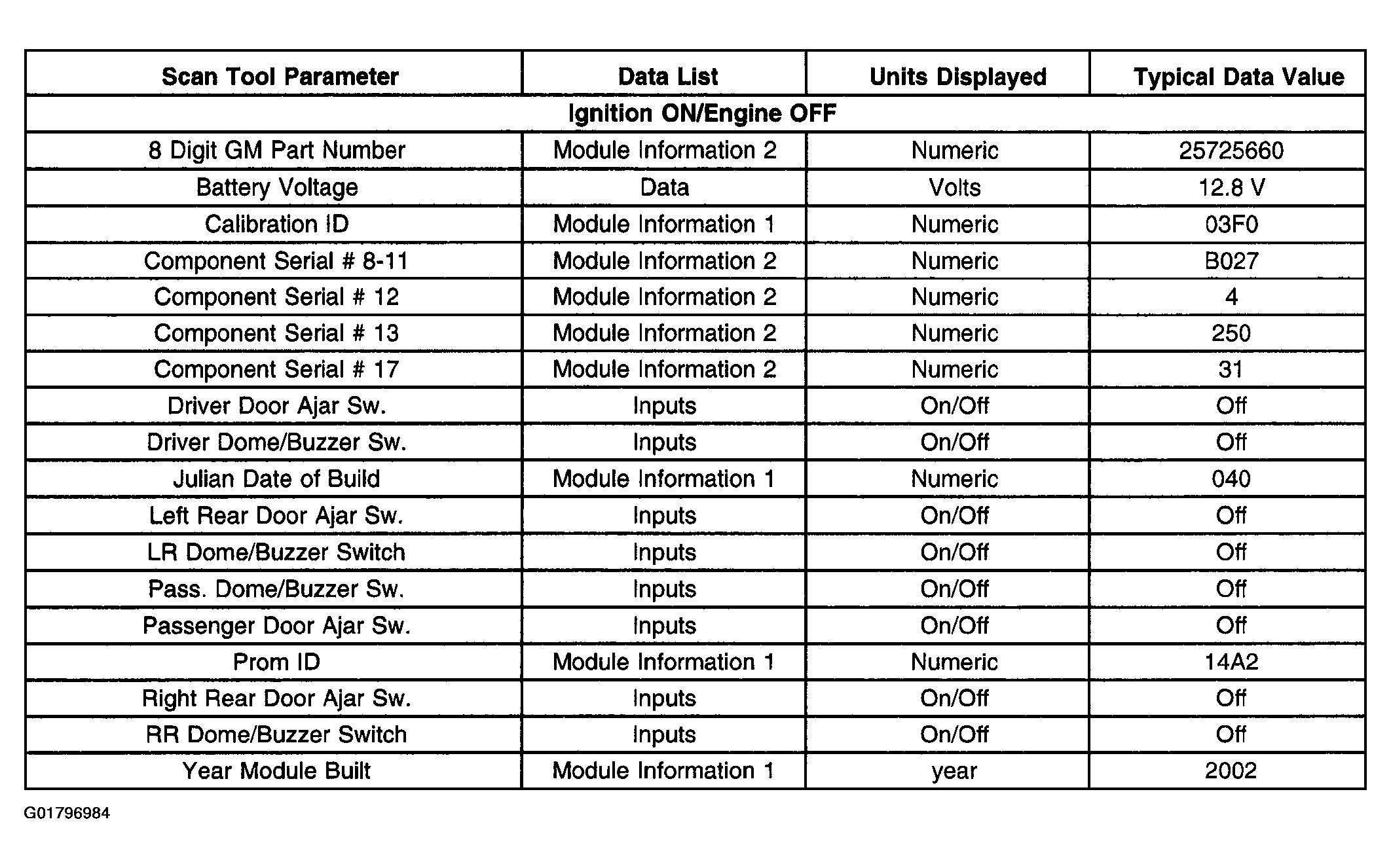

Fig 2: Identifying Driver Door Module Data List

Courtesy of GENERAL MOTORS CORP.

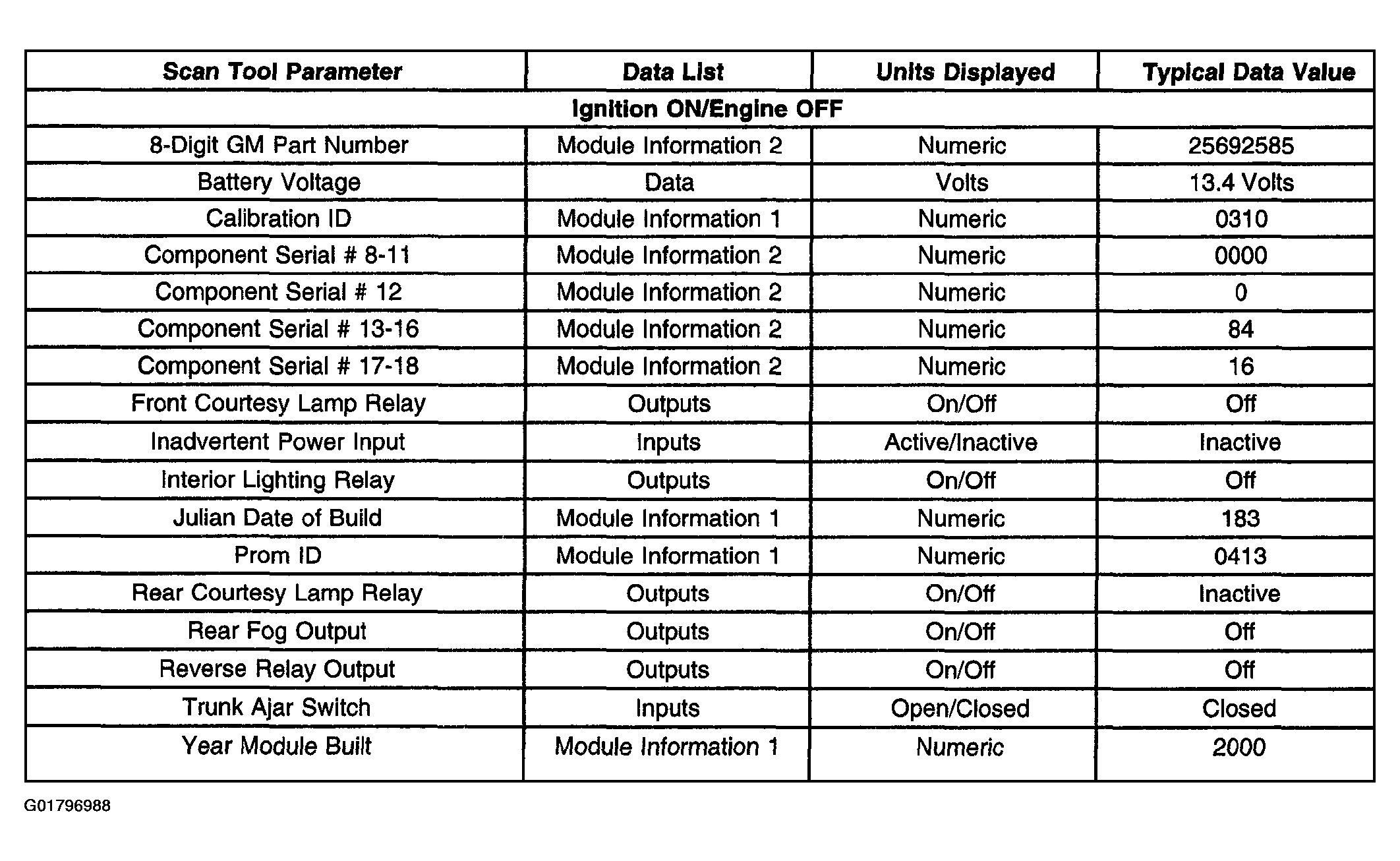

Fig 3: Identifying Instrument Cluster (IPC) Data List

Courtesy of GENERAL MOTORS CORP.

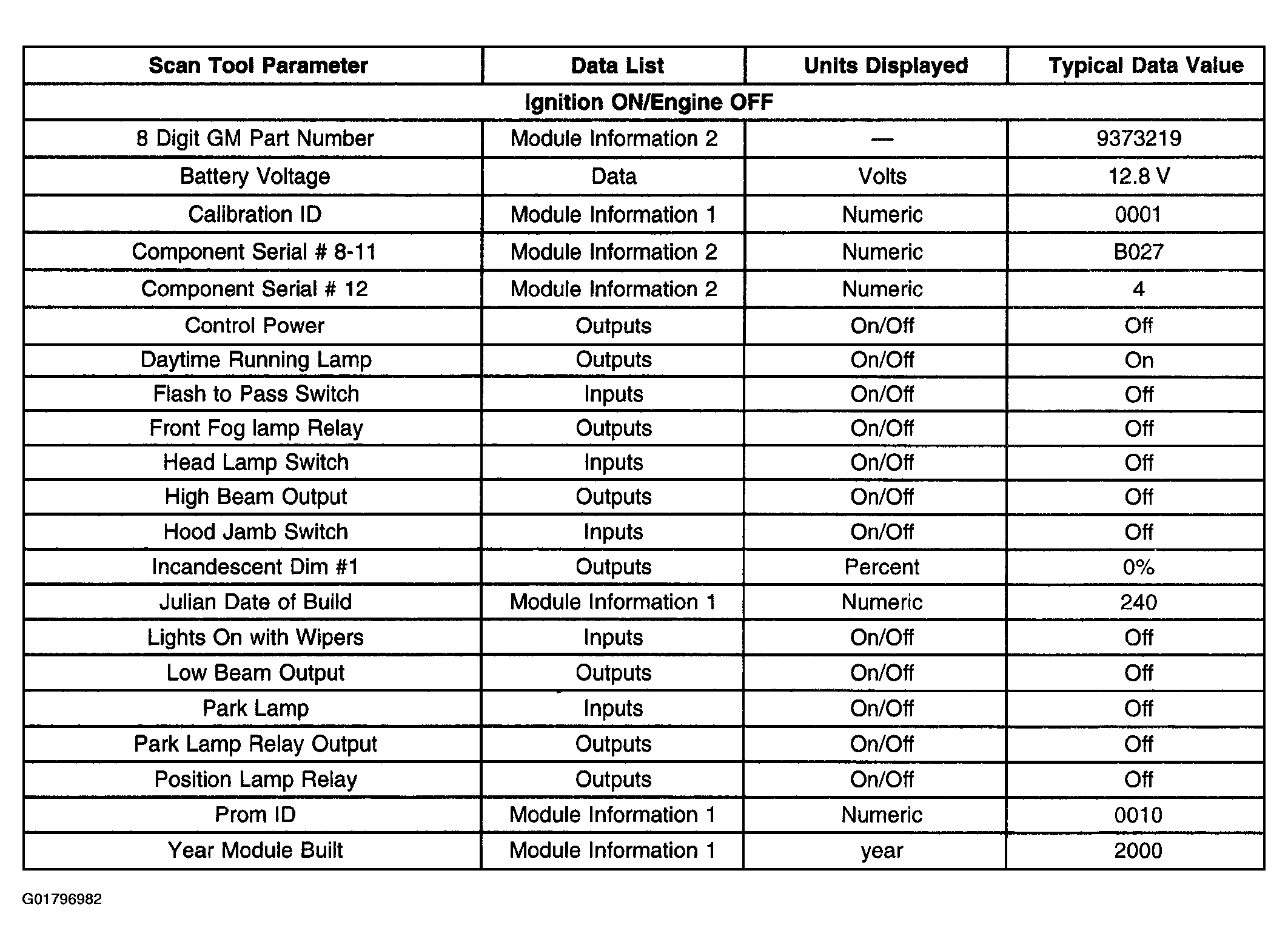

Fig 4: Identifying IPM Data List

Courtesy of GENERAL MOTORS CORP.

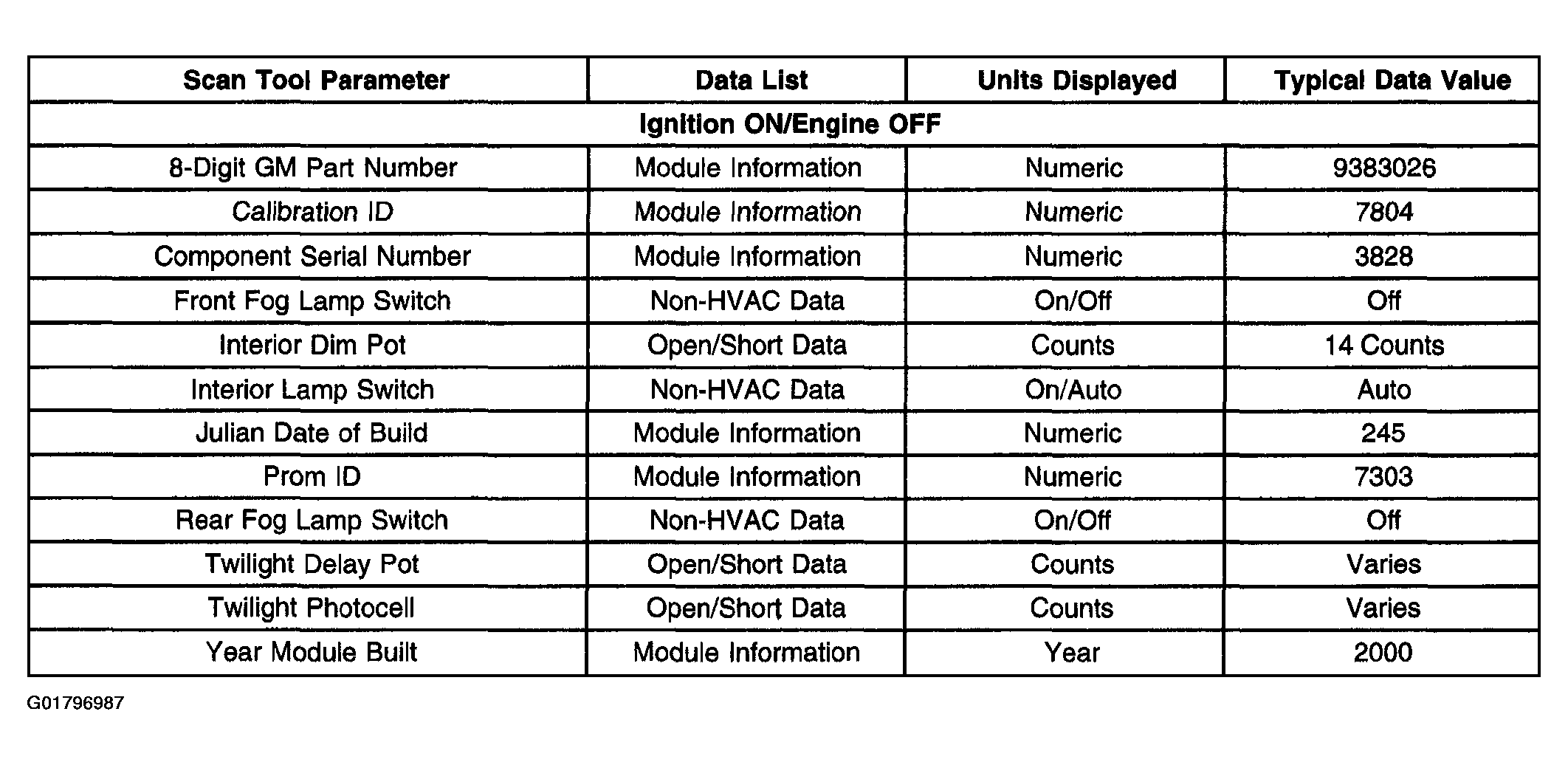

Fig 5: Identifying RIM Data List

Courtesy of GENERAL MOTORS CORP.
