Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Install the front fender (1) to the vehicle.

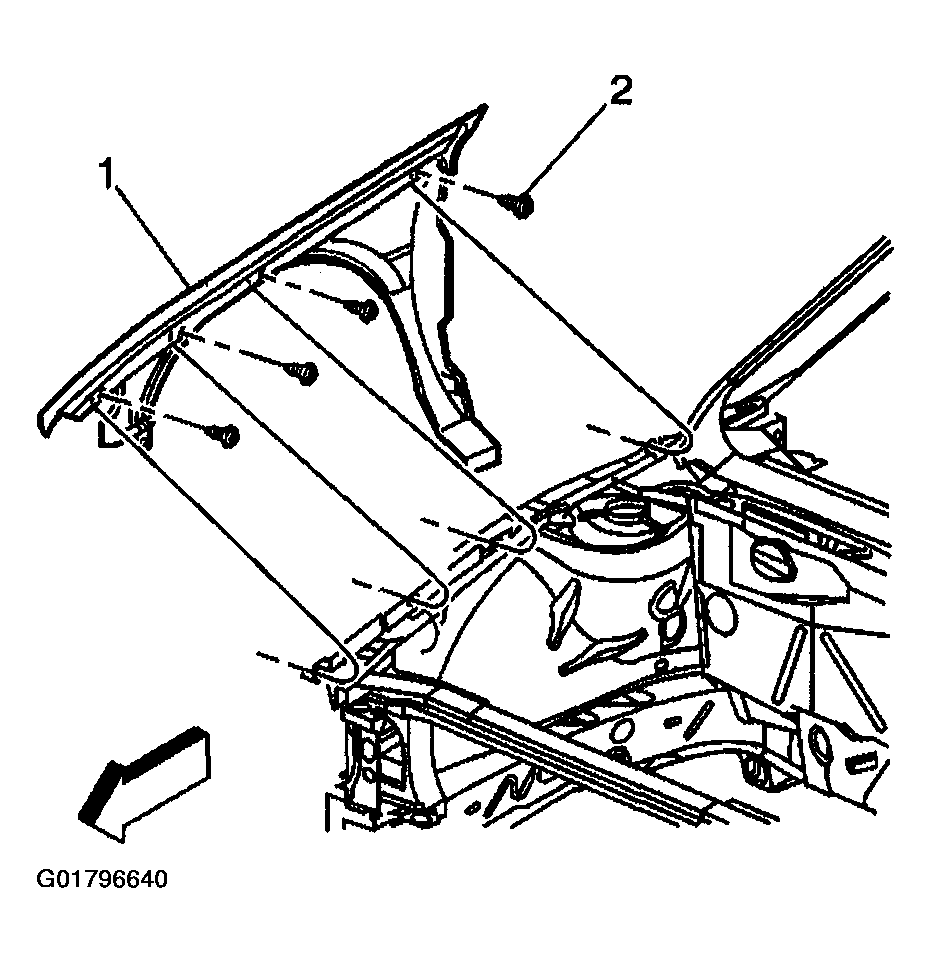

Fig 1: Installing Front Fender
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the fasteners (2) in order to secure the upper portion of the front fender (1) to the vehicle.
Tighten

Tighten the fasteners (2) to 9 N.m (80 lb in).
Install the fastener (3) in order to secure the upper rear portion of the front fender (2) to the vehicle.
Tighten

Tighten the fastener (3) to 9 N.m (80 lb in).

Fig 2: Installing Fastener Securing Upper Rear Portion Of Front Fender To Vehicle
Courtesy of GENERAL MOTORS CORP.
Install the fasteners (3) in order to secure the lower rear portion of the front fender (2) to the vehicle.

Fig 3: Installing Fasteners Securing Lower Rear Portion Of Front Fender To Vehicle
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the fasteners (3) to 9 N.m (80 lb in).
Install the fasteners (2) in order to secure the lower front portion of the front fender (1).

Fig 4: Installing Fasteners Securing Lower Front Portion Of Front Fender
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the fasteners (2) to 9 N.m (80 lb in).
Install the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER .
Install the hood. Refer to Hood Replacement .
Install the front fender to hood seal. Refer to Seal Replacement - Fender to Hood .
Install the rear outer hood seal. Refer to Seal Replacement - Hood Rear .
Install the front wheelhouse panel. Refer to Wheelhouse Liner Replacement - Front .
Install the front fender sound insulator. Refer to Fender Sound Insulator Replacement - Front .
Install the rocker panel molding. Refer to MOLDING REPLACEMENT - ROCKER PANEL .
Install the headlamp. Refer to HEADLAMP REPLACEMENT (SLS, W/O TT6, TT7 OR TT or HEADLAMP REPLACEMENT (SLS AND STS W/TT6, TT7 .
