Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new stud. Use washers (1) and wheel nuts (2) to draw the stud into the hub and seat the stud.
  2. Install the brake rotor. Refer to BRAKE ROTOR -- FRONT .
  3. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  4. Lower the vehicle.

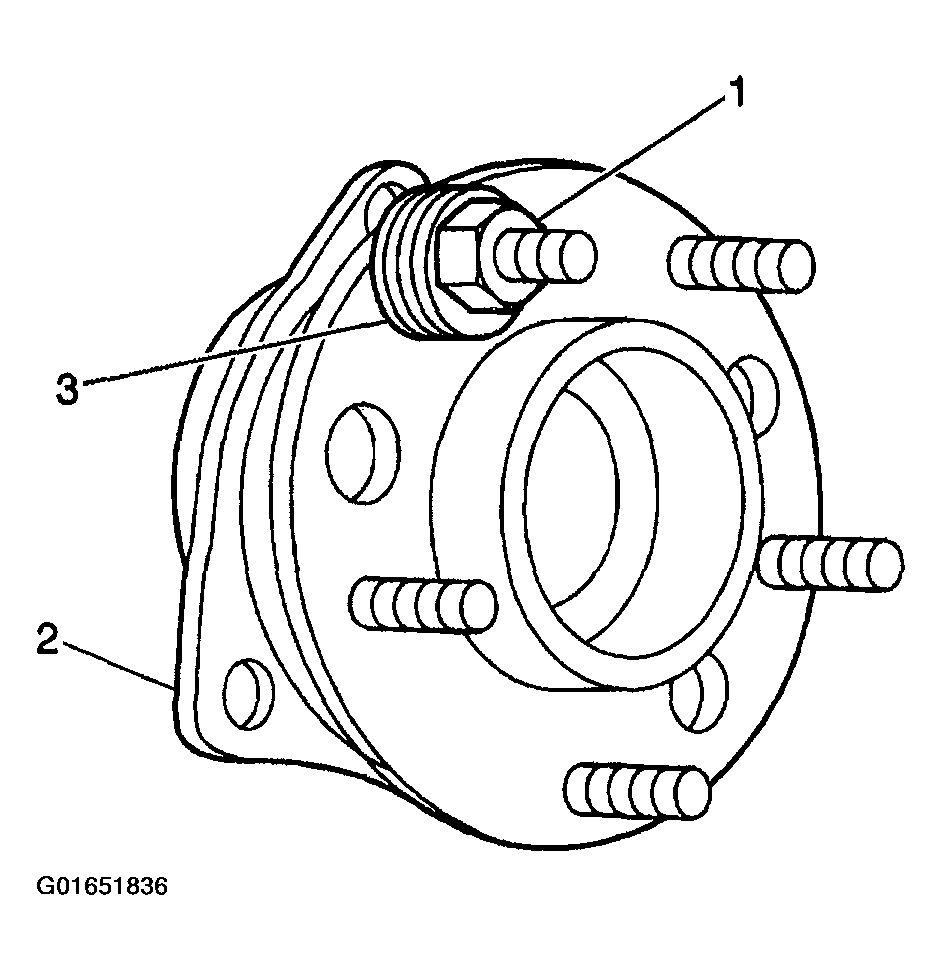

    Fig 1: Identifying Washers & Wheel Nuts
    G01651836Courtesy of GENERAL MOTORS CORP.
