Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement - Bucket .
  2. Place the seat upside down on a clean protected surface.
  3. Release the heated seat relay module from the electrical connector.
  4. Remove the relay module.

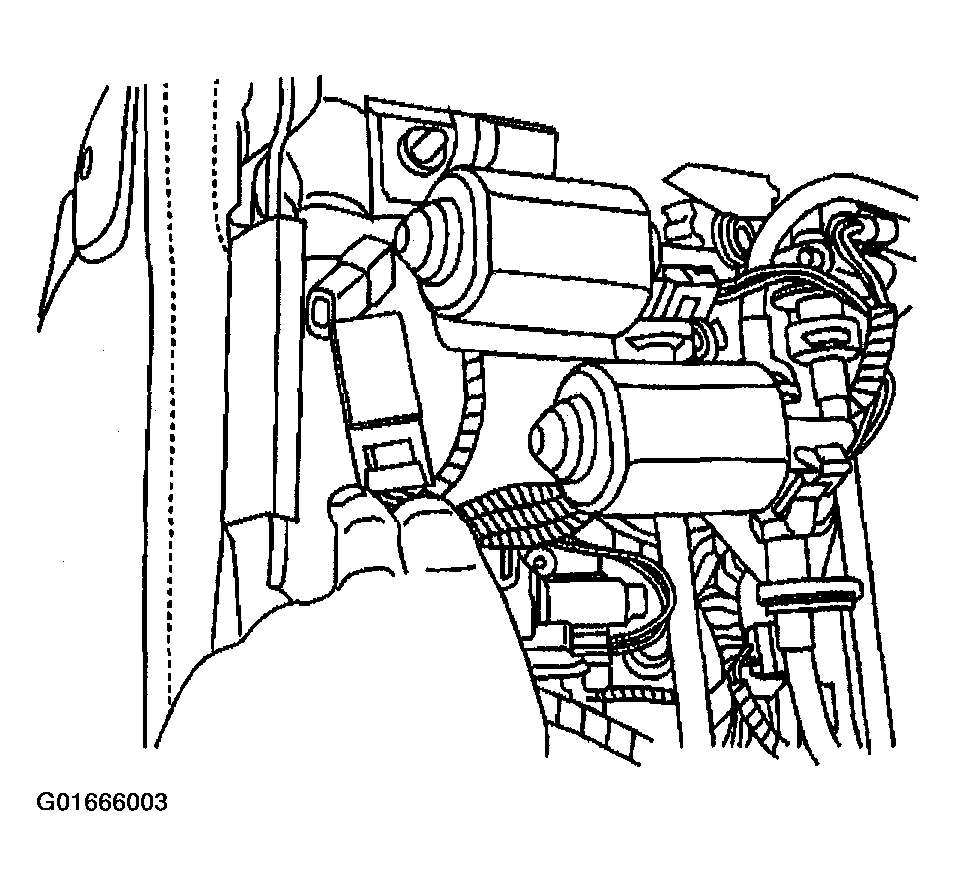

    Fig 1: View Of Heated Seat Relay Module
    G01666003Courtesy of GENERAL MOTORS CORP.
