Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back frame (1).
  2. Push the head restraint guide into the seat back frame. Make sure it locks into place.
  3. Install the seat back pad to the frame (1).
  4. Install the seat back cover. Refer to SEAT BACK COVER REPLACEMENT - FRONT   .

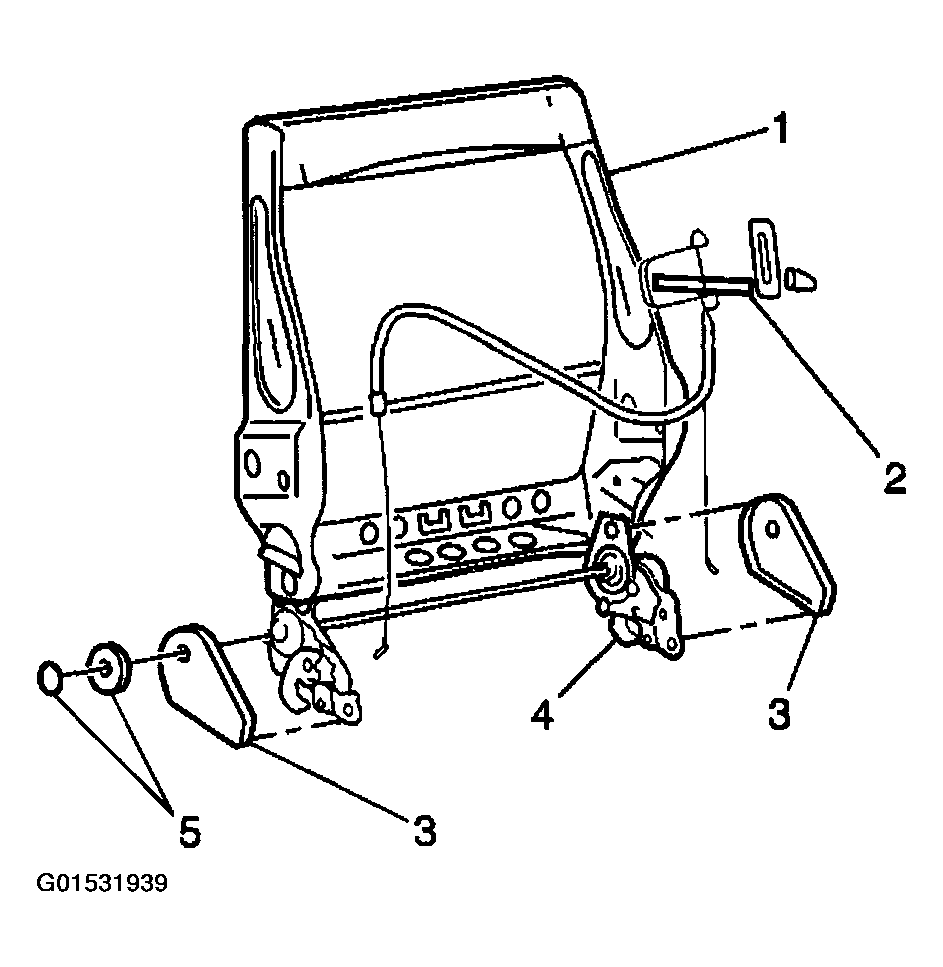

    Fig 1: Installing Front Seat Back Frame
    G01531939Courtesy of GENERAL MOTORS CORP.
