Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small, flat-bladed tool in order to remove the cargo lamp from the headliner.
  2. Disconnect the electrical connectors from the cargo lamp.
  3. Remove the cargo lamp from the headliner.
    Fig 1: Disconnecting Electrical Connectors From Cargo Lamp
    G01534111Courtesy of GENERAL MOTORS CORP.
  4. Use a small, flat-bladed tool in order to remove the cargo lamp lens from the cargo lamp.
  5. Use a small, flat-bladed tool in order to remove the bulb from the socket.

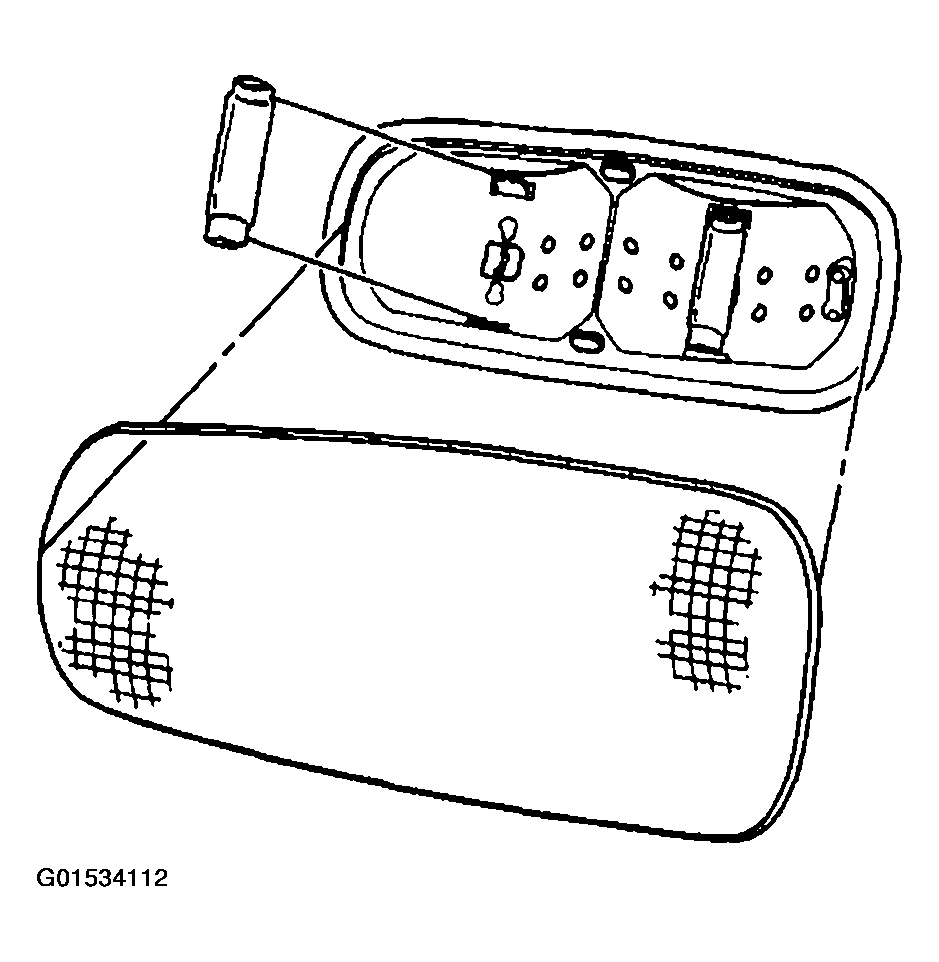

    Fig 2: Removing Cargo Lamp Lens And Bulb From Cargo Lamp
    G01534112Courtesy of GENERAL MOTORS CORP.
