Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the reverse lamp relay into the number 4 relay center (11).
  2. Install the cover on the relay center.
  3. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .

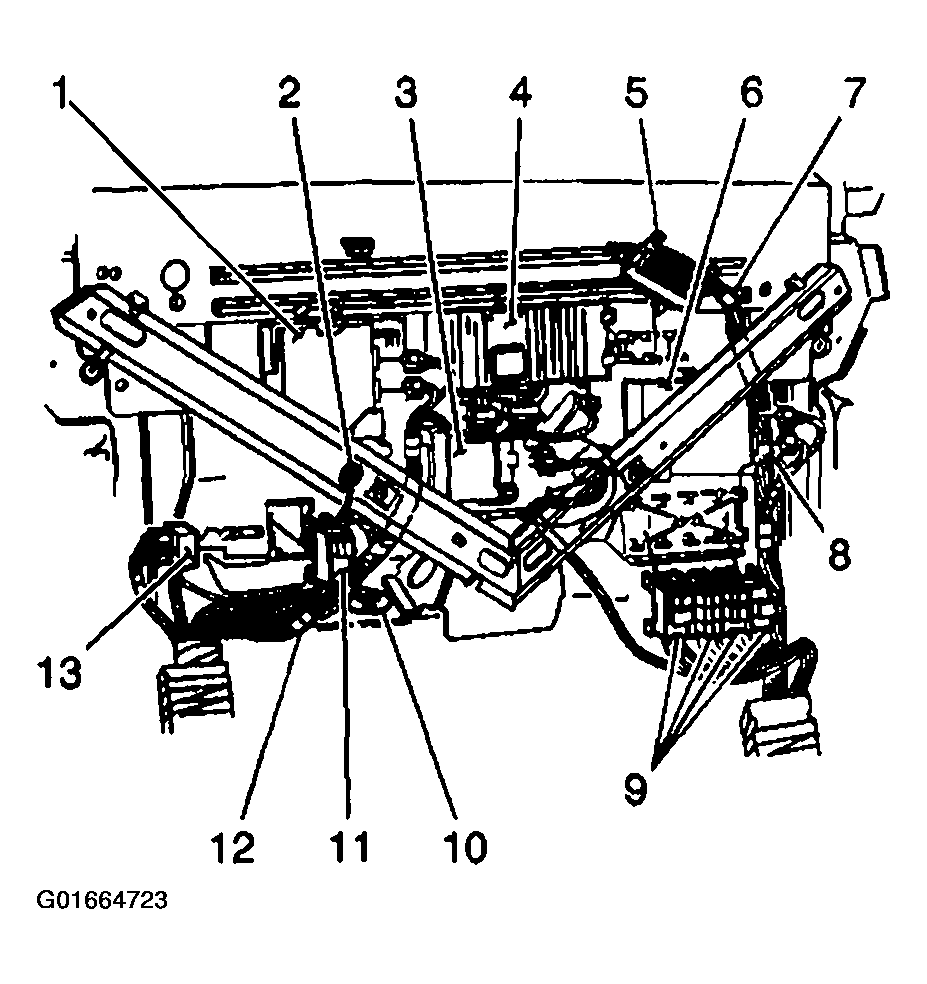

    Fig 1: Identifying Reverse Lamp Relay At Number 4 Relay Center
    G01664723Courtesy of GENERAL MOTORS CORP.
