Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fog lamp housing to the retention clips.
  2. Install the fog lamp bracket.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bracket-to-lamp fasteners.

    Tighten

    Tighten the fasteners to 6 N.m (53 lb in).

  4. Install the fog lamp bulb into the housing.
  5. Twist clockwise 45 degrees the bulb (1) in order to secure.
  6. Connect the fog lamp electrical connector (2).
  7. Aim the fog lamps as needed. Refer to Fog Lamp Aiming Procedure .

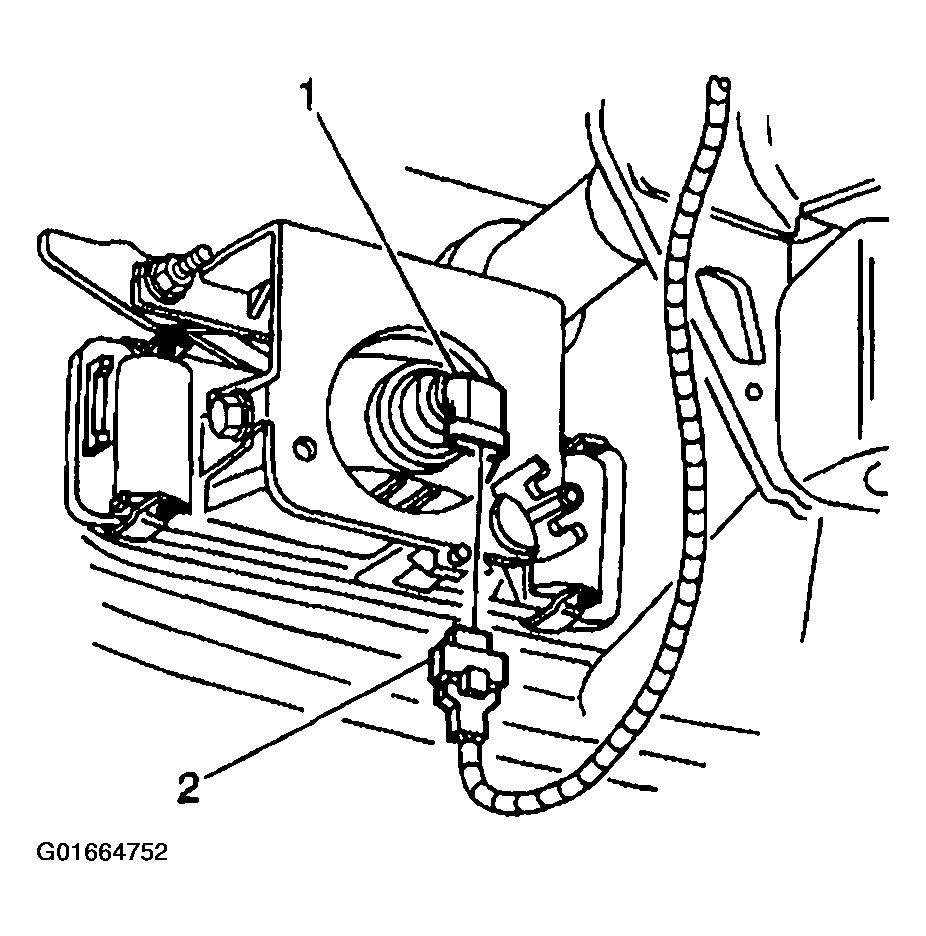

    Fig 1: Fog Lamp Socket Electrical Connector, Bulb & Components
    G01664752Courtesy of GENERAL MOTORS CORP.
