Door Lock/Indicator Schematics
WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

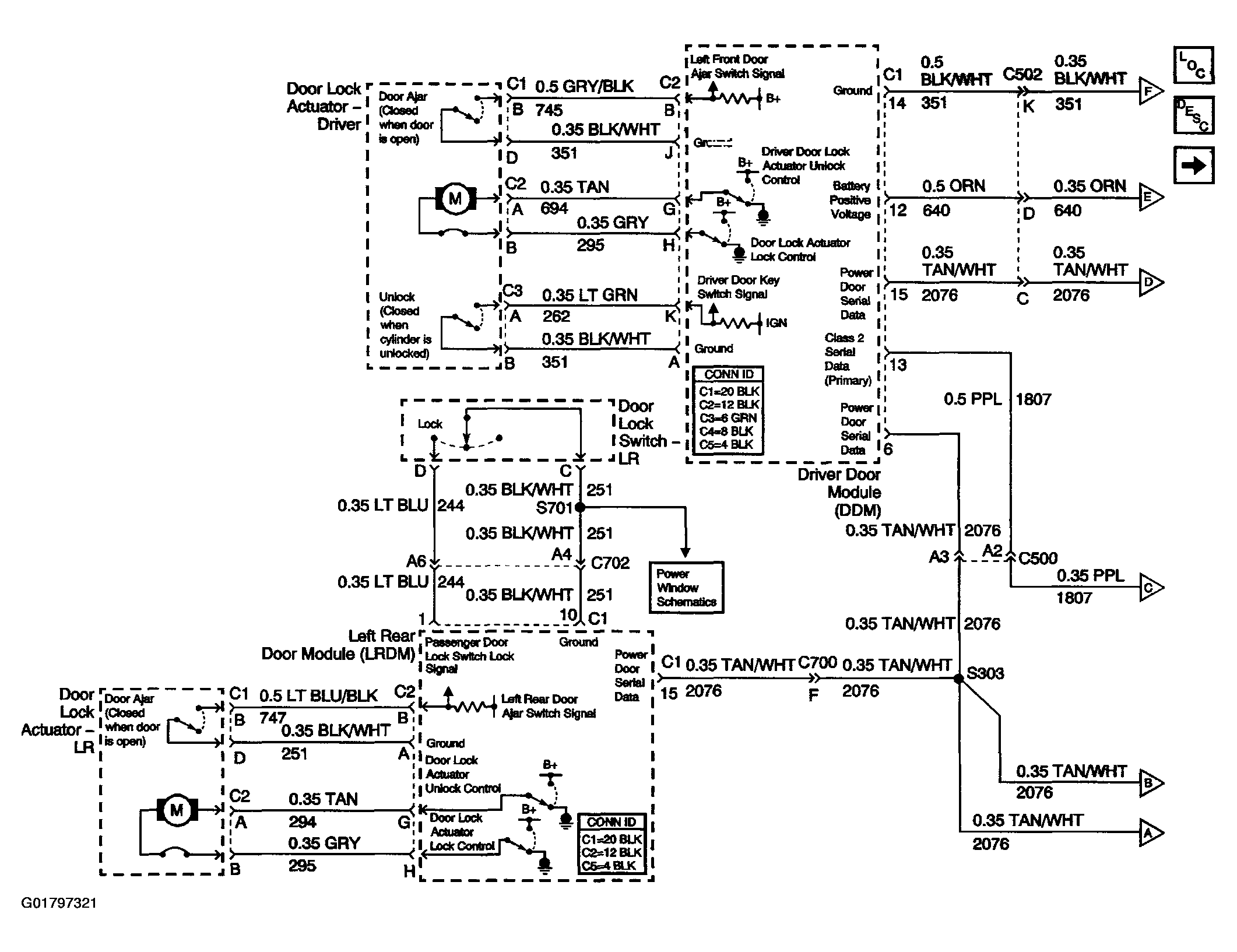

Fig 1: Door Lock/Indicator Schematics (Driver and LR Doors)
Courtesy of GENERAL MOTORS CORP.

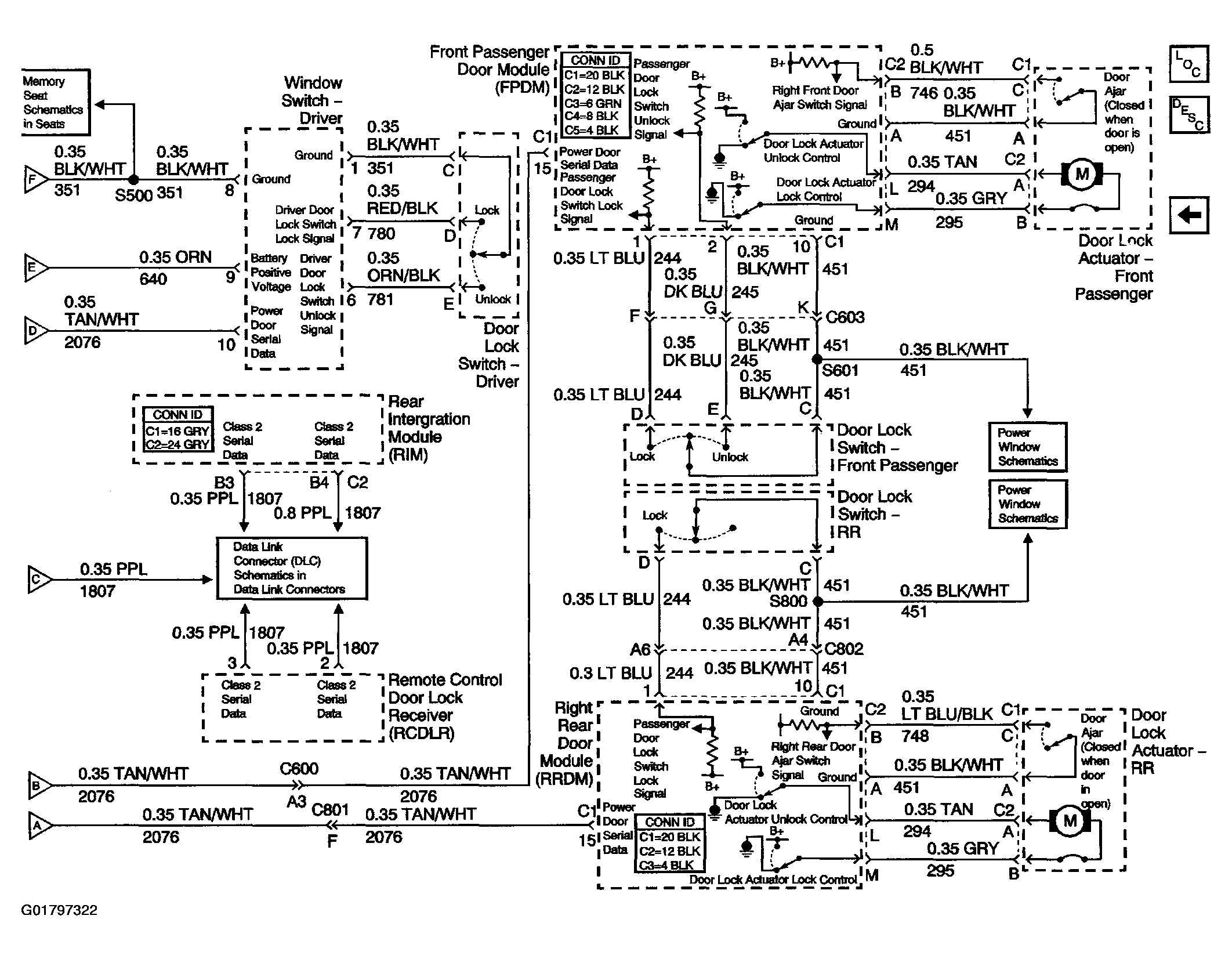

Fig 2: Door Lock/Indicator Schematics (Front Passenger & RR Doors)
