Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
- Install the upper door speaker / grille assembly into the molding.
Ensure that the speaker grille is properly seated in the molding.
Important: If the upper and lower door speakers on the door have been disconnected, ensure that the upper and lower speakers are reconnected to the proper door harness connector.

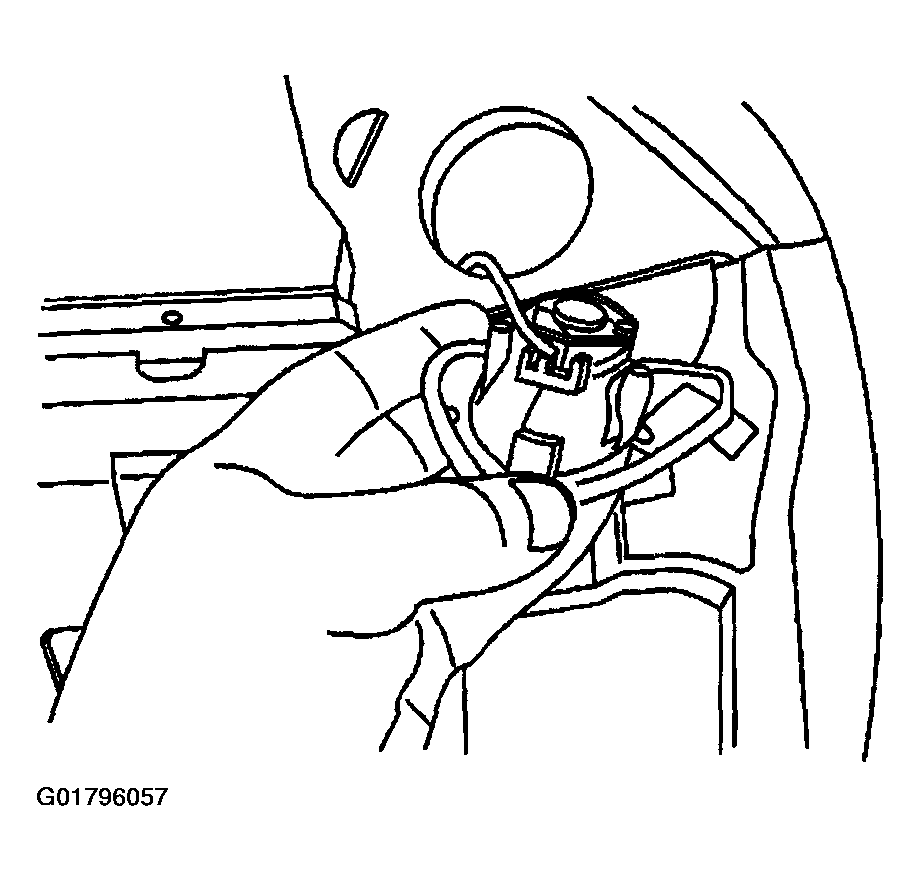

- Connect the upper door speaker electrical connector to the door harness.
- Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
