Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the catalytic converter. Refer to Catalytic Converter Replacement .
  3. Use a drill to remove the catalytic converter heat shield rivets.
  4. Remove the catalytic converter heat shield.

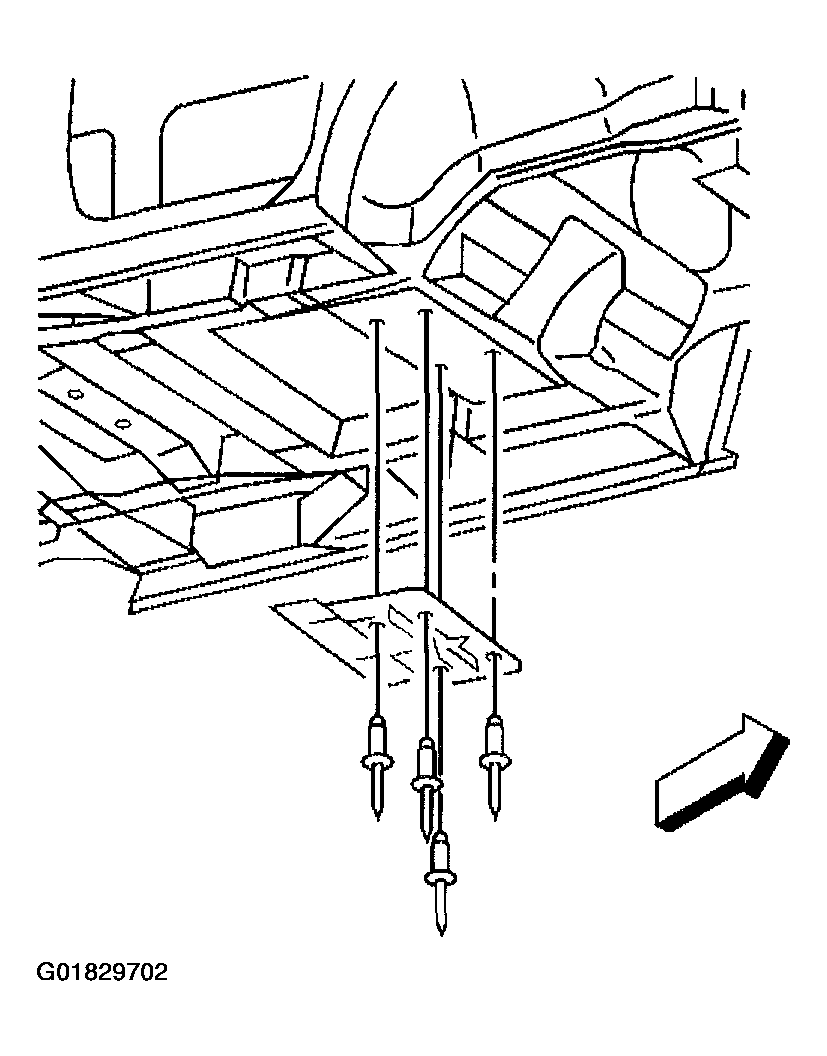

    Fig 1: Removing Catalytic Converter Heat Shield & Rivets
    G01829702Courtesy of GENERAL MOTORS CORP.
