Electronic Frontal Sensor Connector End View - Right

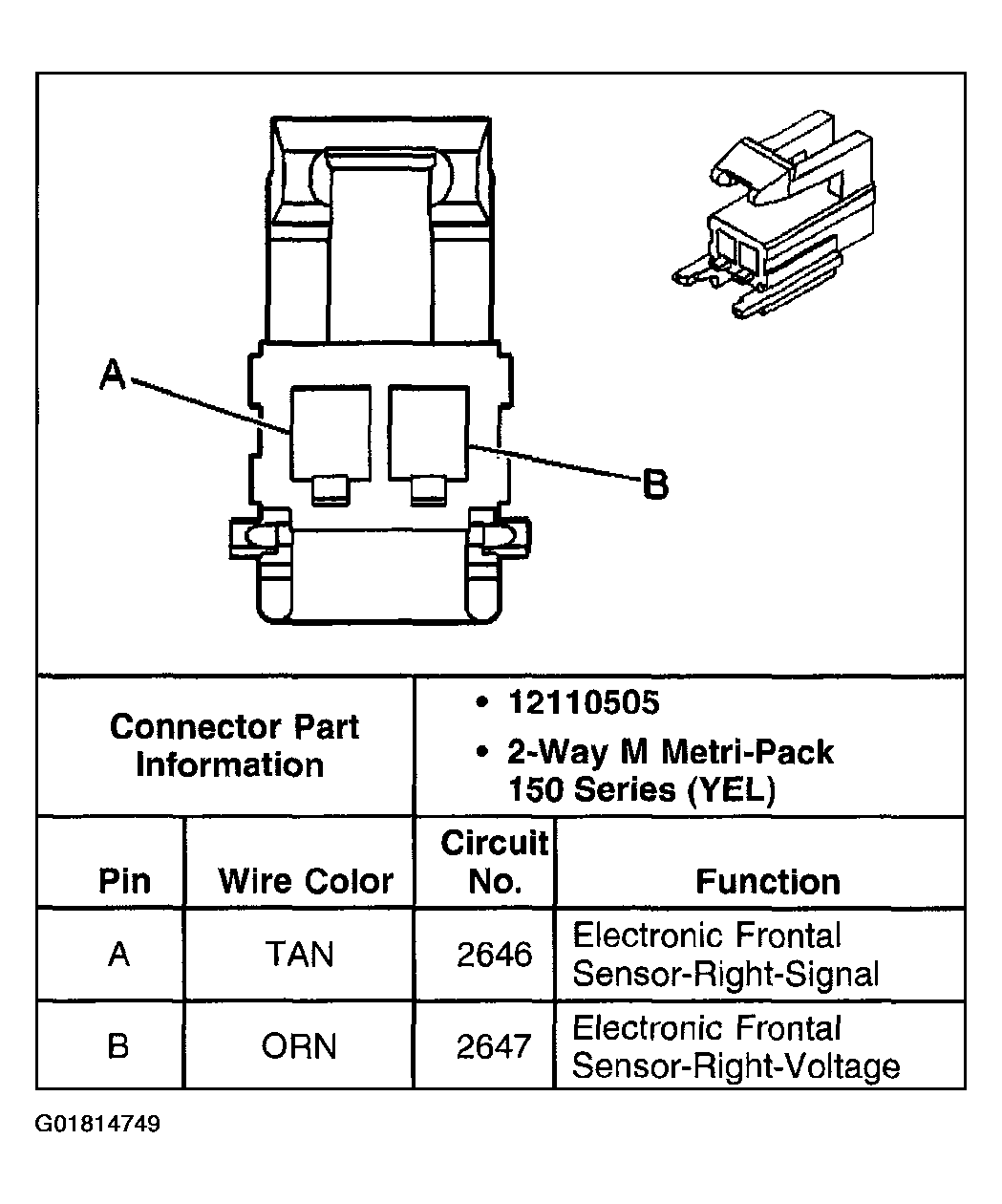

Fig 1: Electronic Frontal Sensor - Right
G01814749Courtesy of GENERAL MOTORS CORP.
