Scan Tool Data List

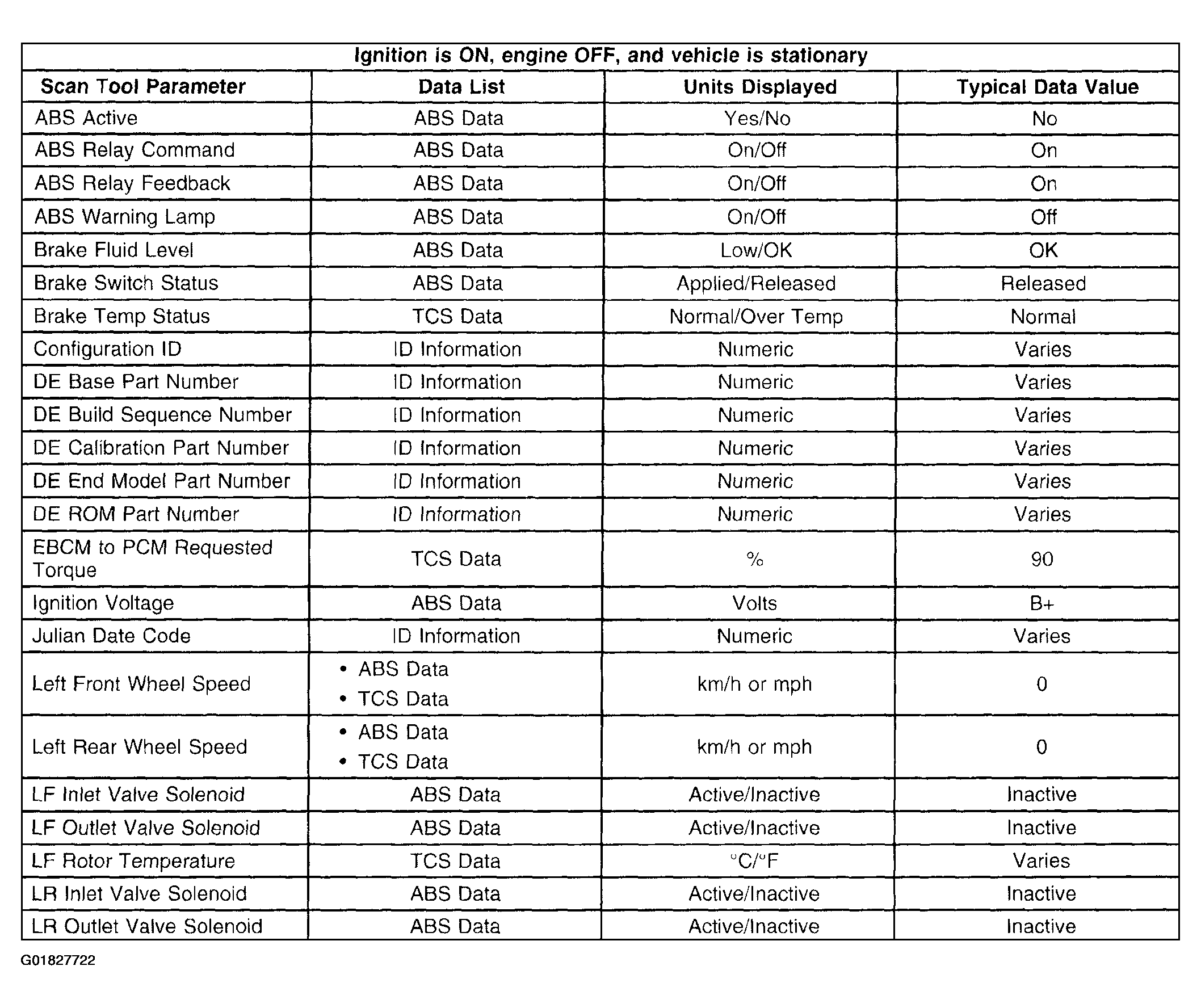

Fig 1: Scan Tool Data List (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

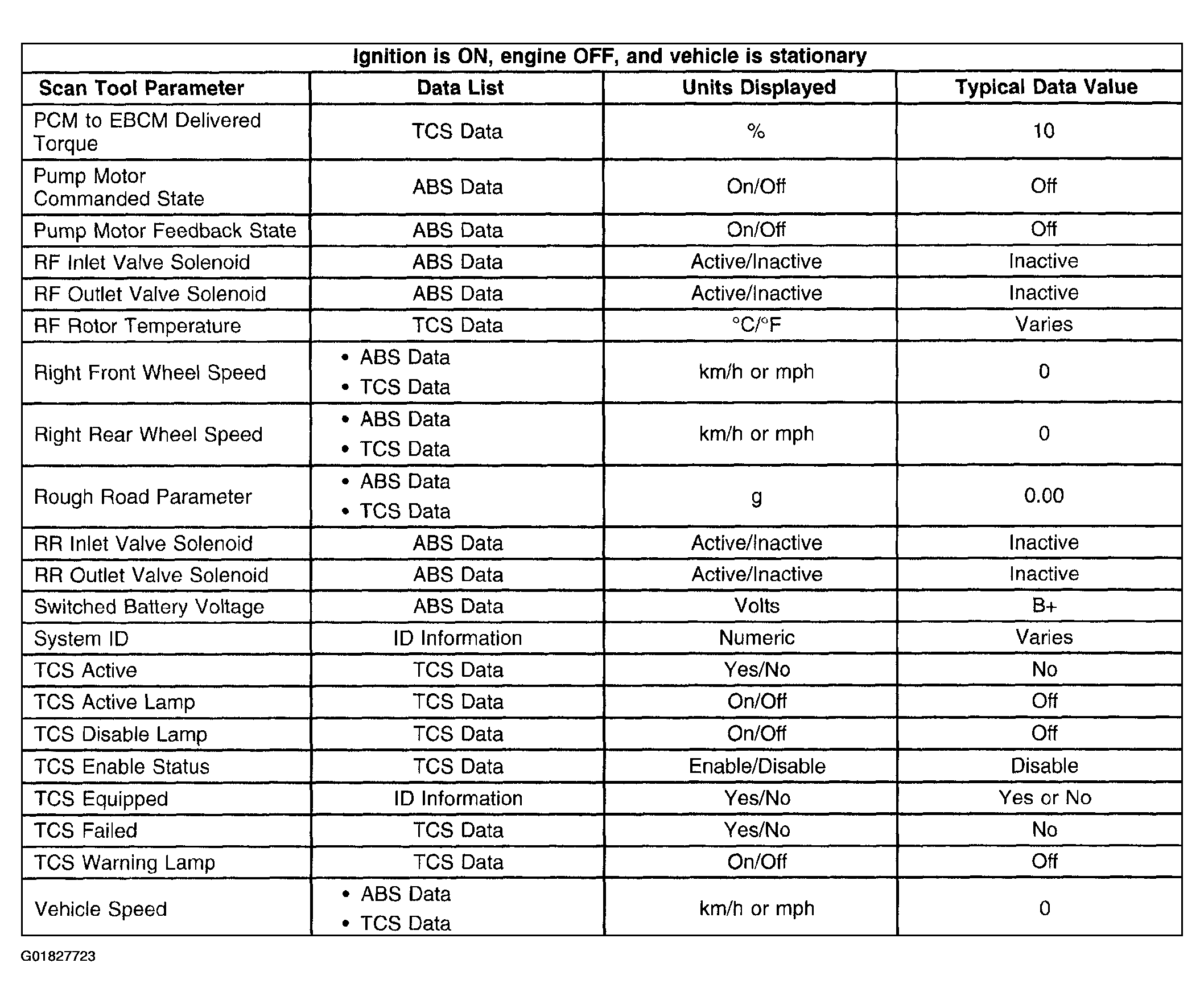

Fig 2: Scan Tool Data List (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.
