Removal Procedure

  1. Remove the seat back cover. Refer to Seat Back Cover Replacement - Front .
  2. Remove the seat back pad from the frame (1).
  3. Squeeze the bottom of the head restraint guide together and pull the head restraint guide from the seat back frame.
  4. Remove the seat back frame (1).

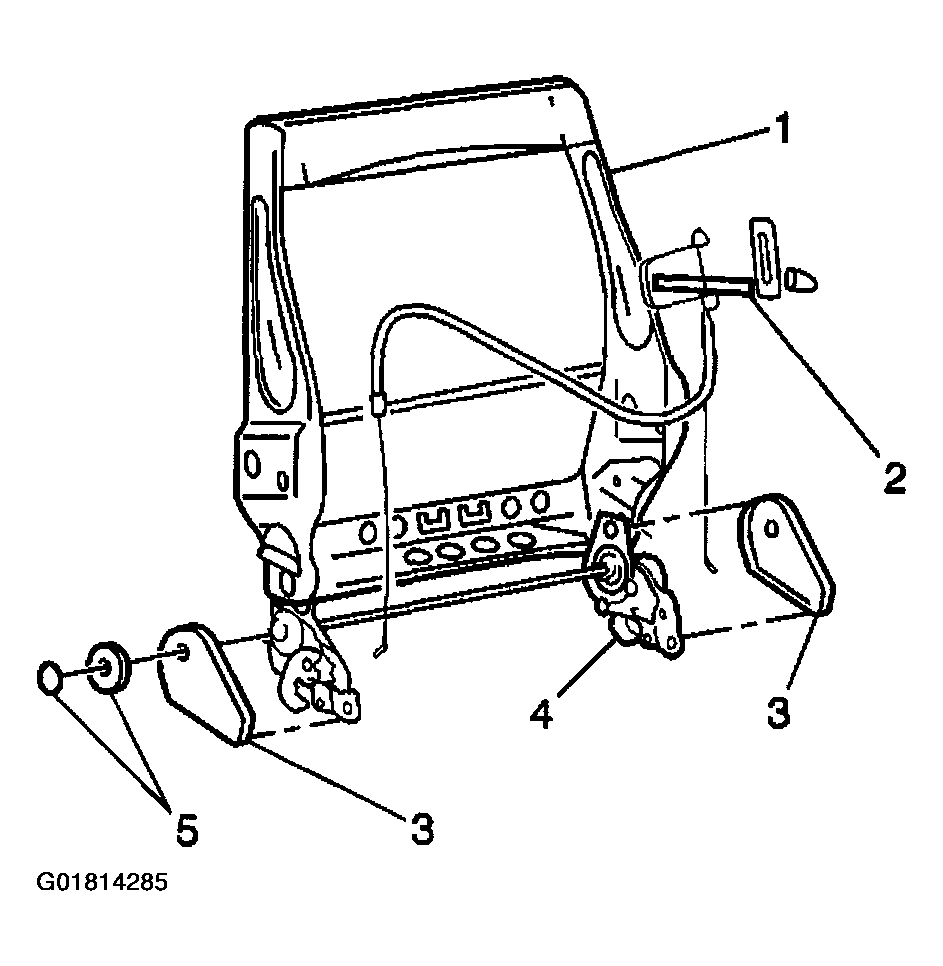

    Fig 1: Removing Seat Back Pad & Frame
    G01814285Courtesy of GENERAL MOTORS CORP.
