Removal Procedure

  1. Remove the overhead console. Refer to CONSOLE REPLACEMENT - OVERHEAD (SINGLE) or CONSOLE REPLACEMENT - OVERHEAD (DUAL) or CONSOLE REPLACEMENT - OVERHEAD (CF5) .
  2. Disconnect the microphone electrical connector.
  3. Remove the microphone from the headliner.

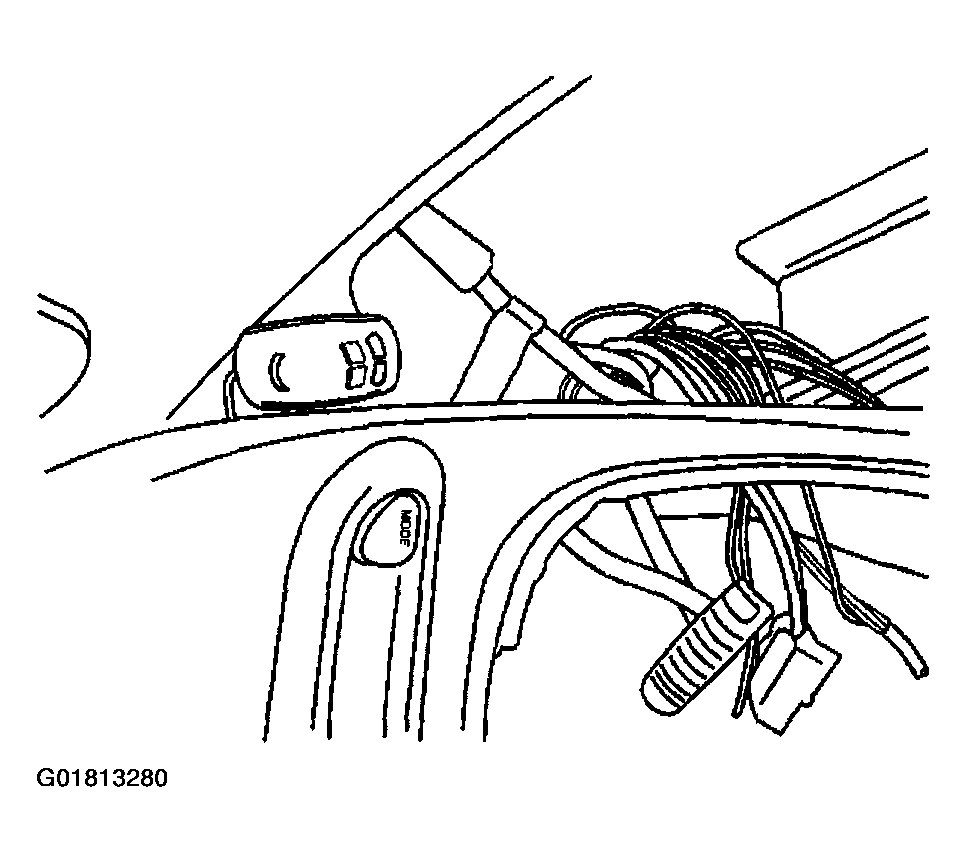

    Fig 1: Removing Microphone From Headliner
    G01813280Courtesy of GENERAL MOTORS CORP.
