Removal Procedure

Remove the cruise control cable from the module. Refer to Cruise Control Cable Replacement .
Disconnect the electrical connector.

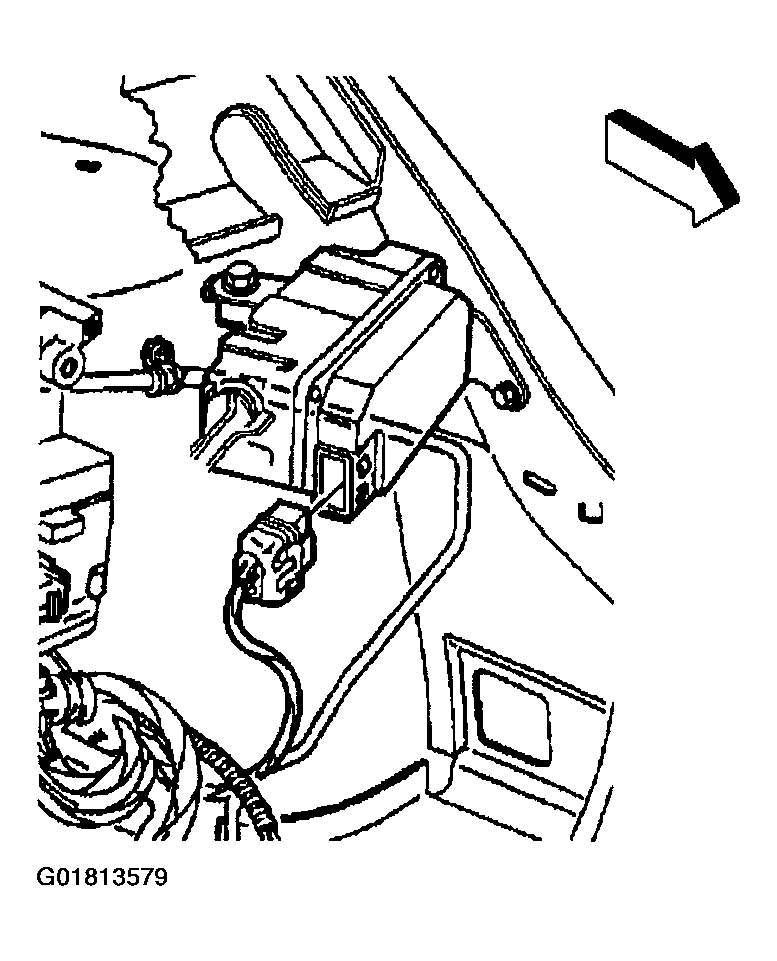

Fig 1: Disconnecting Electrical Connector (Cruise Control Module)
Courtesy of GENERAL MOTORS CORP.
Remove the mounting bracket bolt from the cruise control module.

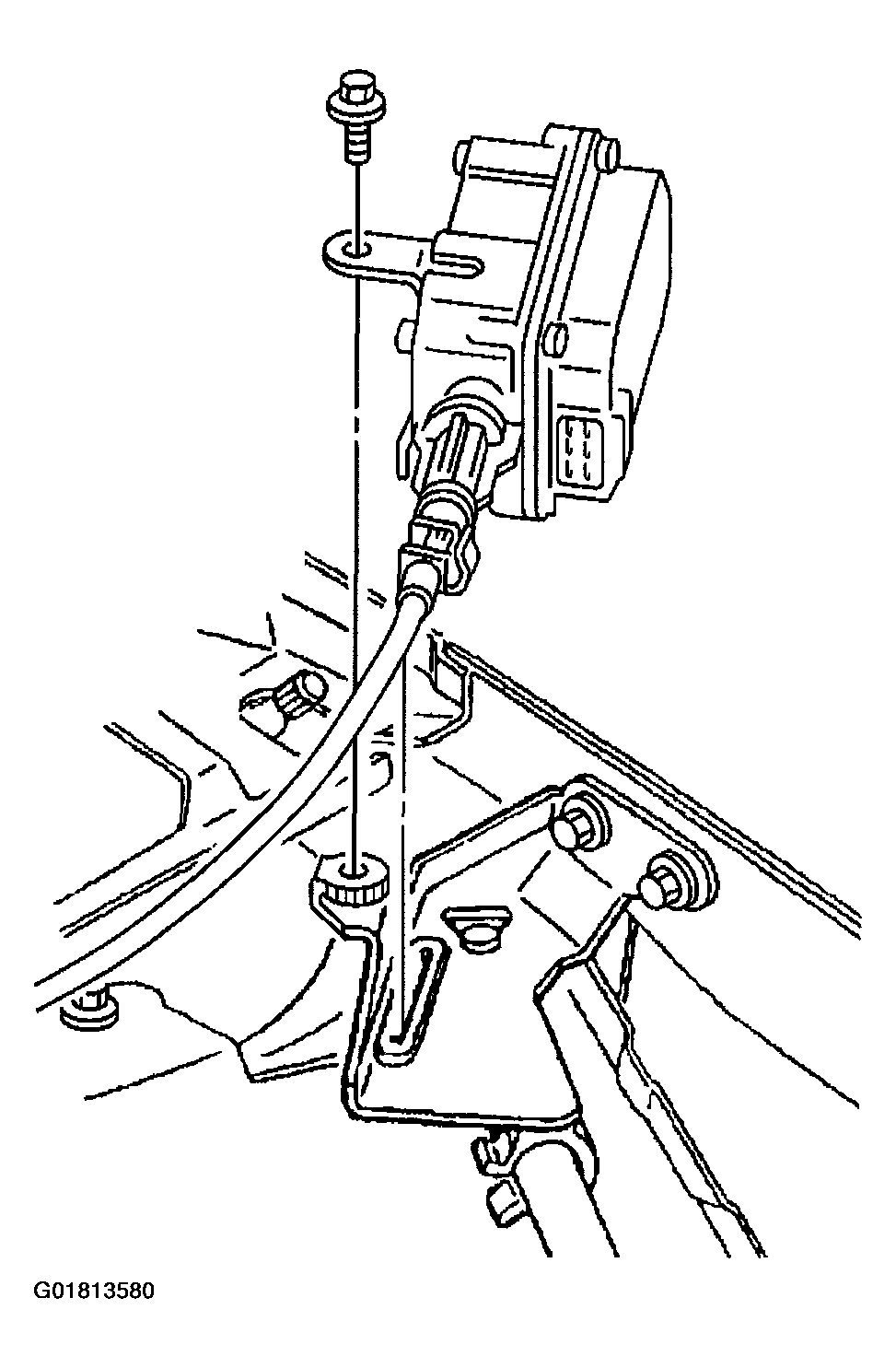

Fig 2: Removing Cruise Control Module From Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control module from the mounting bracket.
