Instrument Panel Cluster (IPC) Connector End View C1

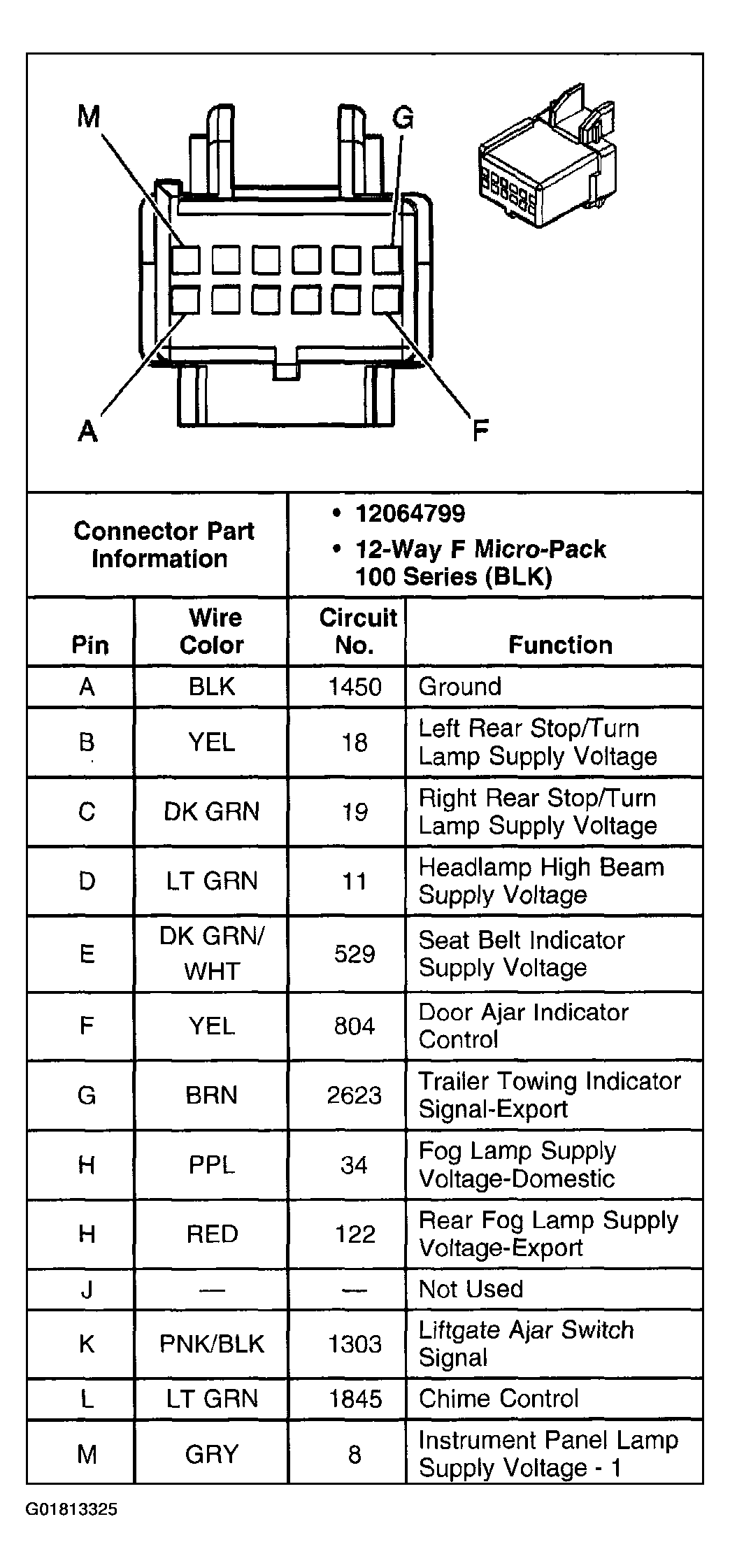

Fig 1: Instrument Panel Cluster (IPC) C1
G01813325Courtesy of GENERAL MOTORS CORP.
