Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the front fender liner at the front bumper fascia and fender.

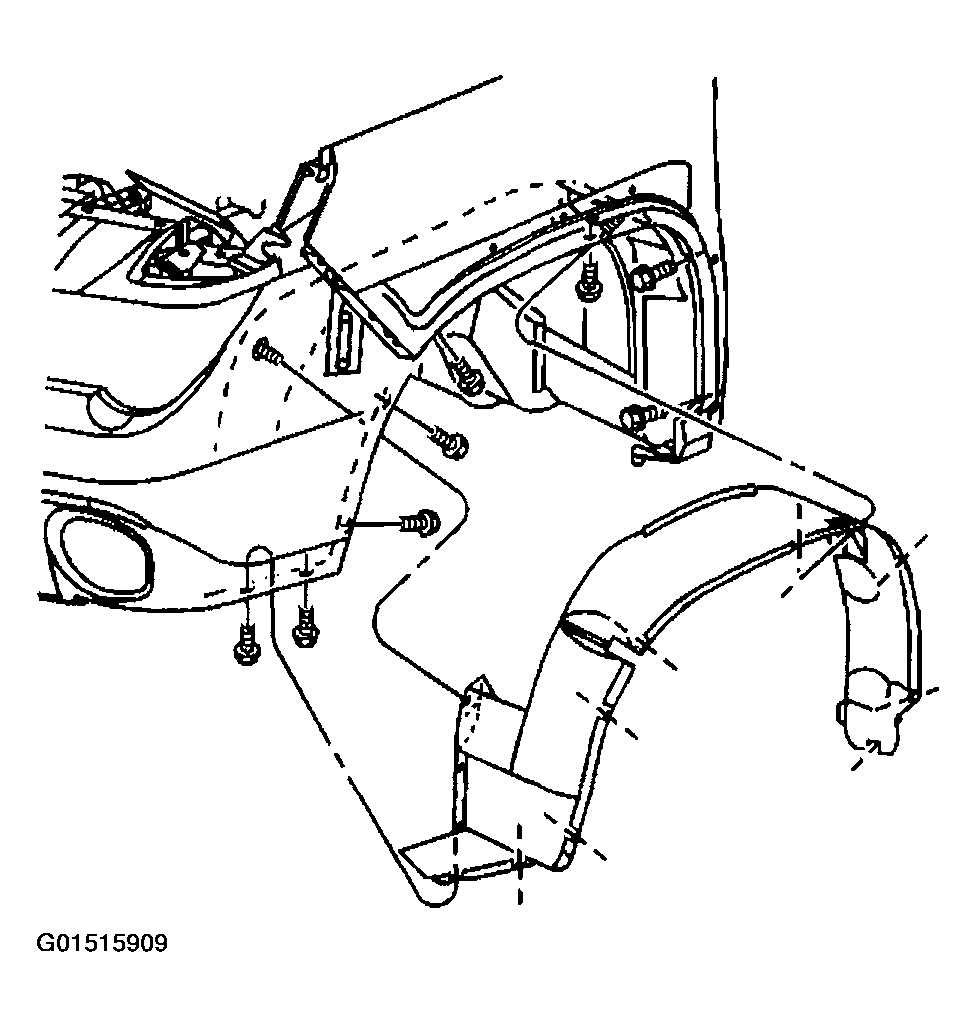

    Fig 1: Removing Screws From Front Fender Liner
    G01515909Courtesy of GENERAL MOTORS CORP.
  2. Remove the nut from the stud at the rear of the front fender liner.

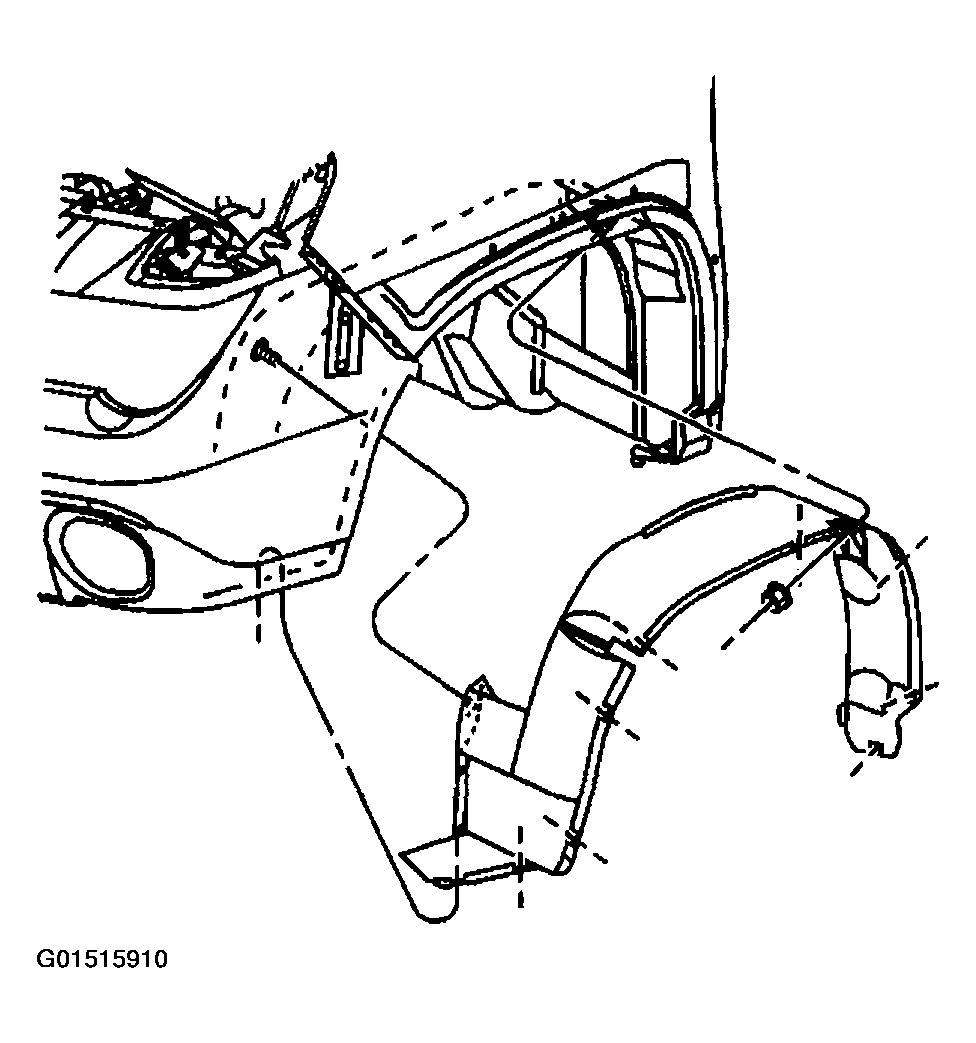

    Fig 2: Removing Nut From Stud At Rear Of Front Fender Liner
    G01515910Courtesy of GENERAL MOTORS CORP.
  3. Remove the nut from the stud at the front of the front fender liner.
  4. Remove the front fender liner.

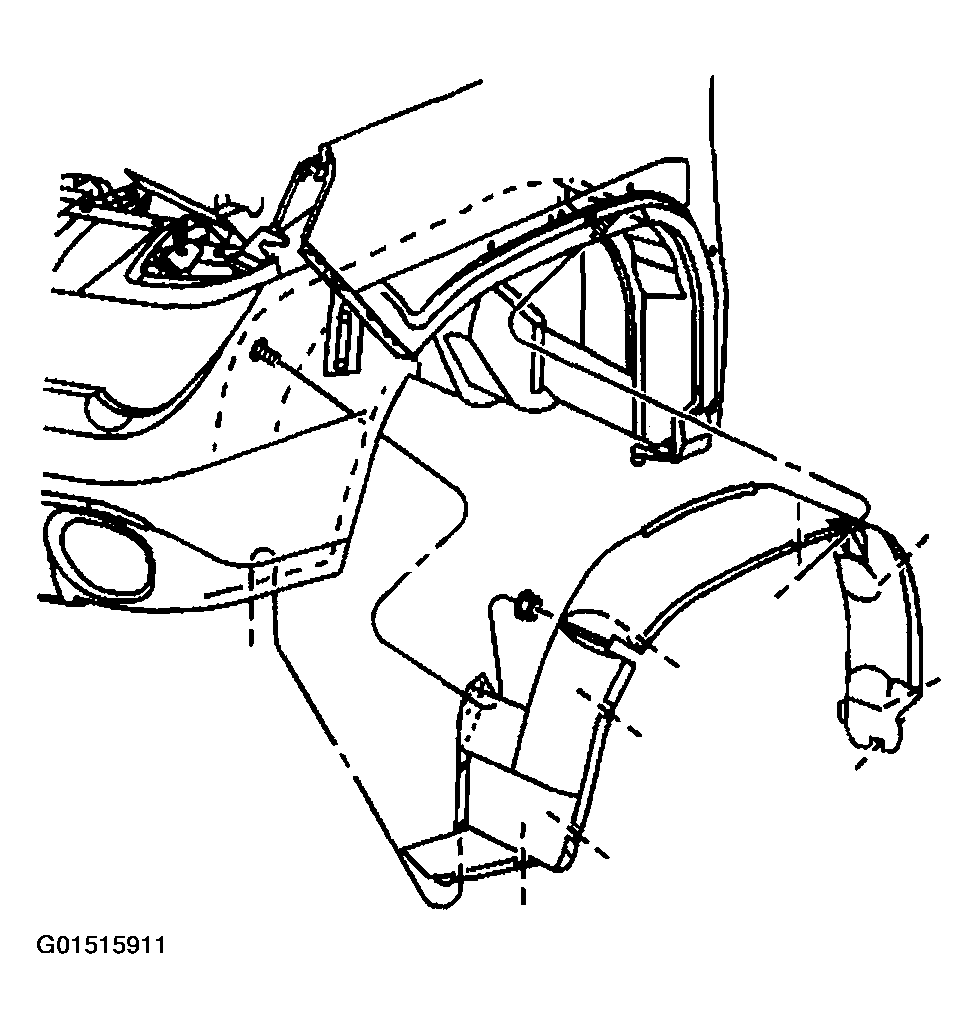

    Fig 3: Removing Front Fender Liner
    G01515911Courtesy of GENERAL MOTORS CORP.
