Scan Tool Data List

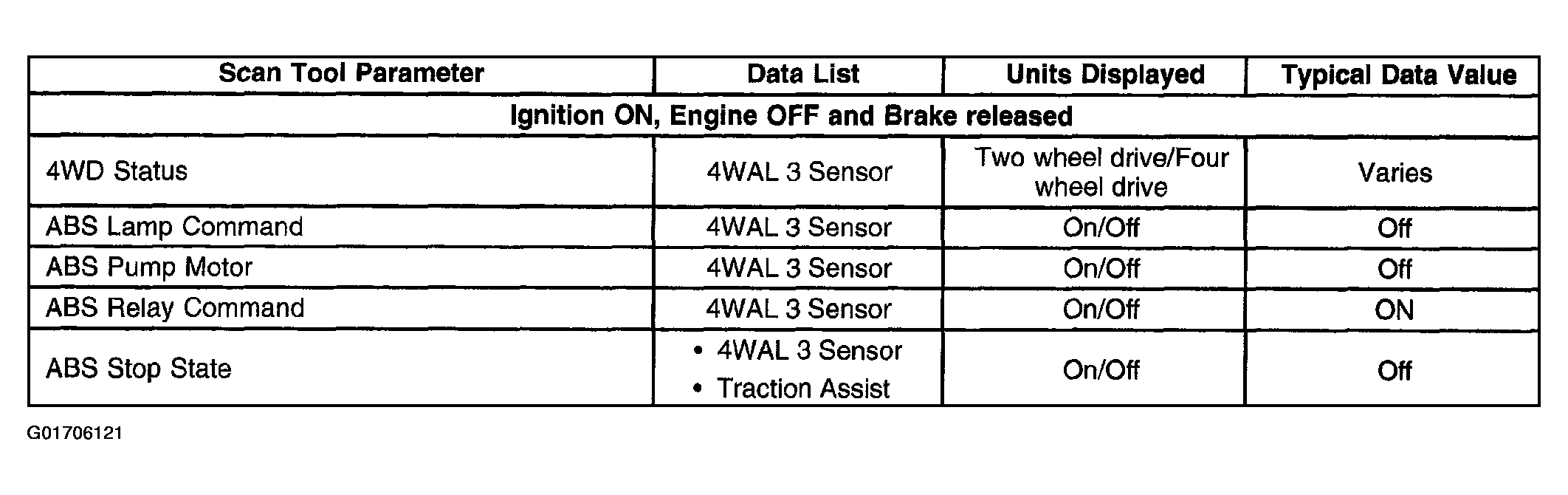

Fig 1: Scan Tool Data List (1 Of 2)
G01706121Courtesy of GENERAL MOTORS CORP.

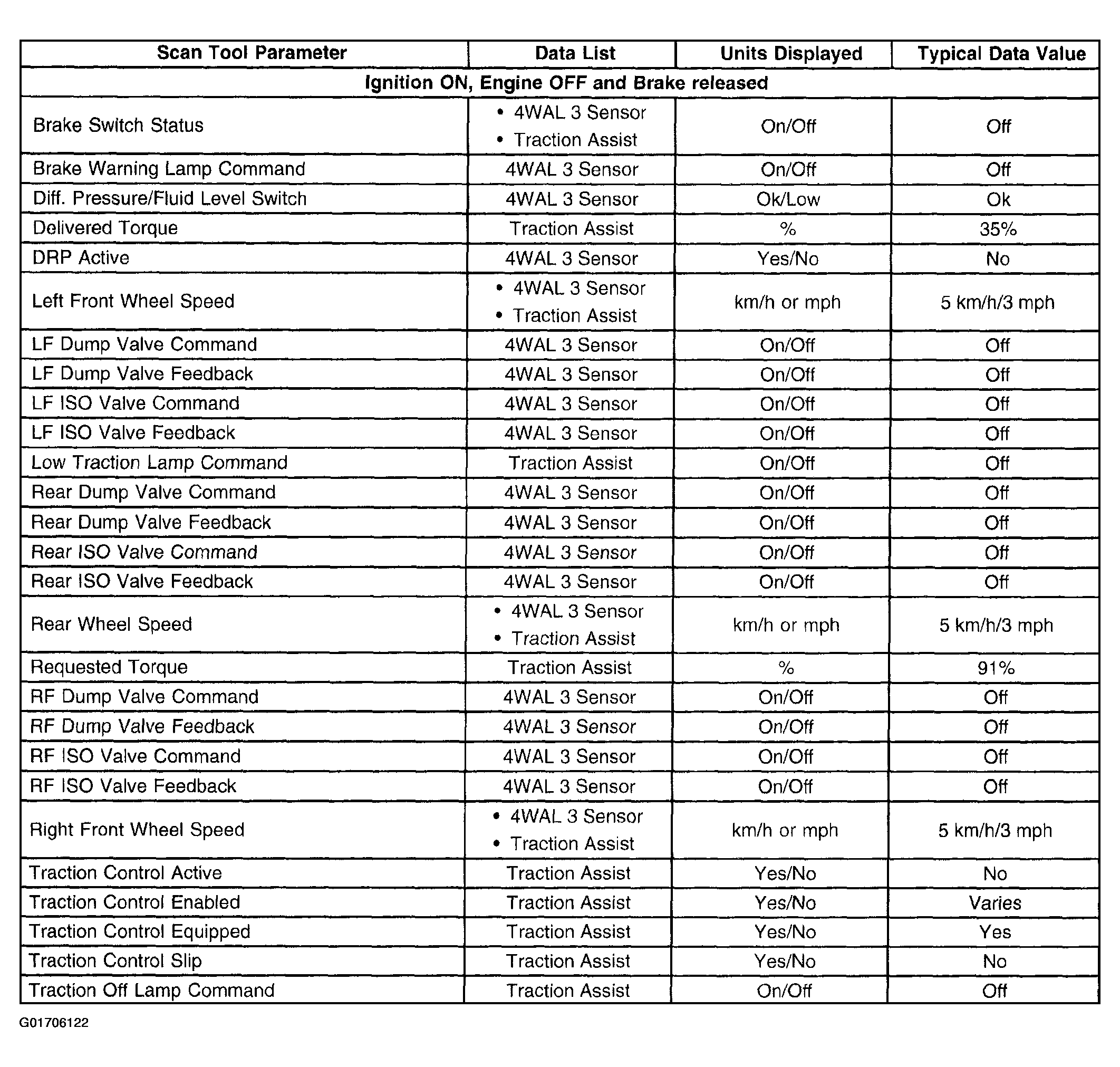

Fig 2: Scan Tool Data List (2 Of 2)
G01706122Courtesy of GENERAL MOTORS CORP.
