Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage the data link connector (DLC) retainer from the bracket.
  2. Reposition the DLC as required.

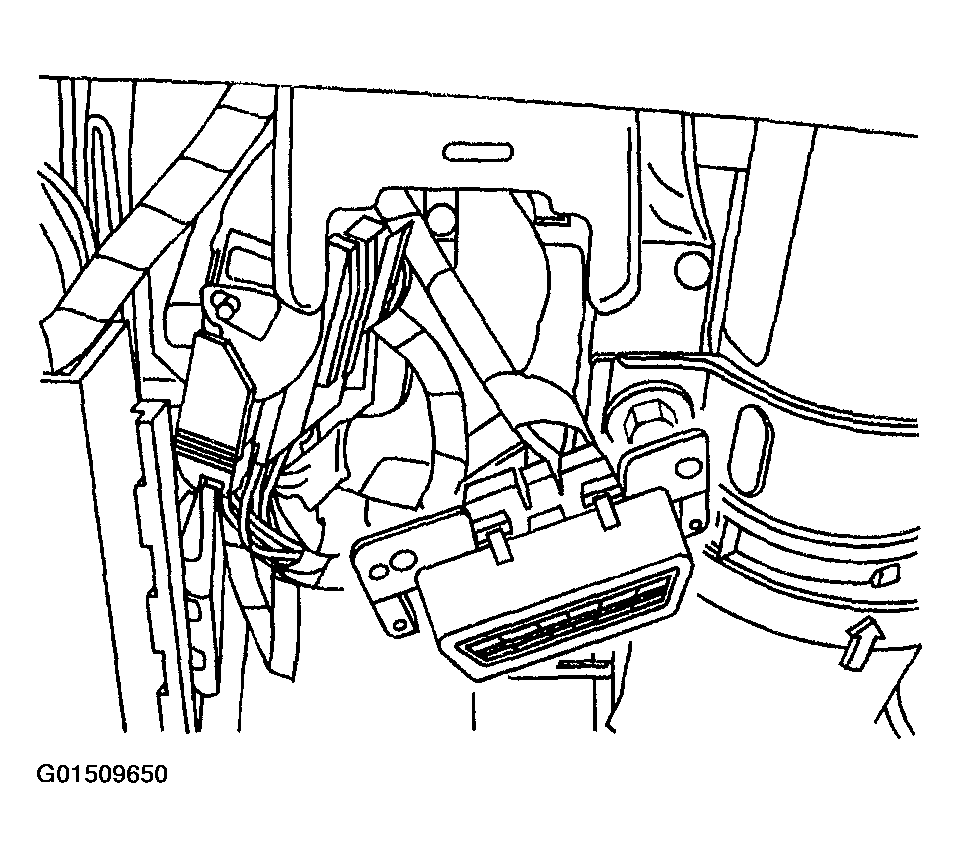

    Fig 1: Removing Data Link Connector
    G01509650Courtesy of GENERAL MOTORS CORP.
