Dome Lamp

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.

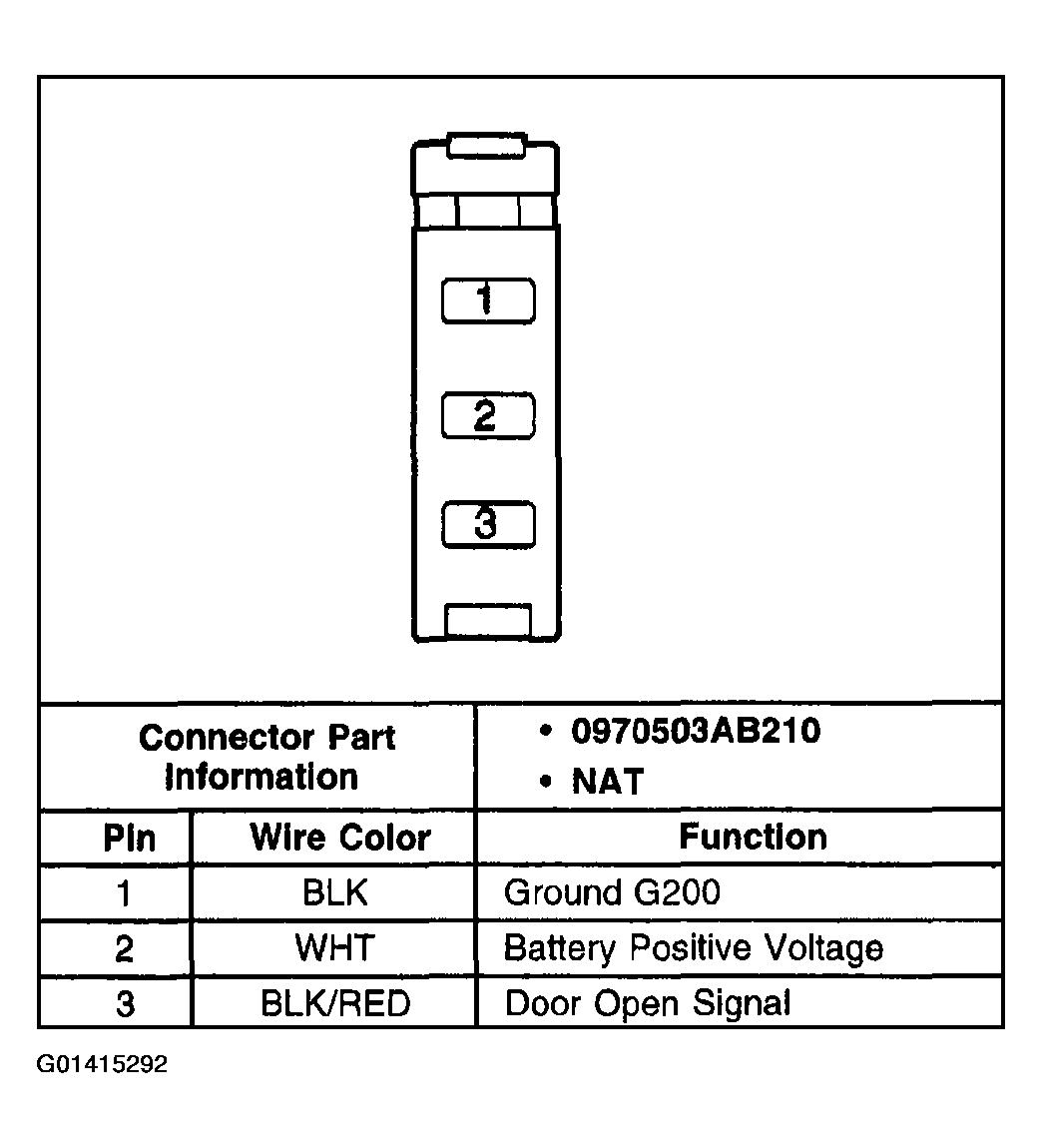

Fig 1: Dome Lamp
G01415292Courtesy of GENERAL MOTORS CORP.
