Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

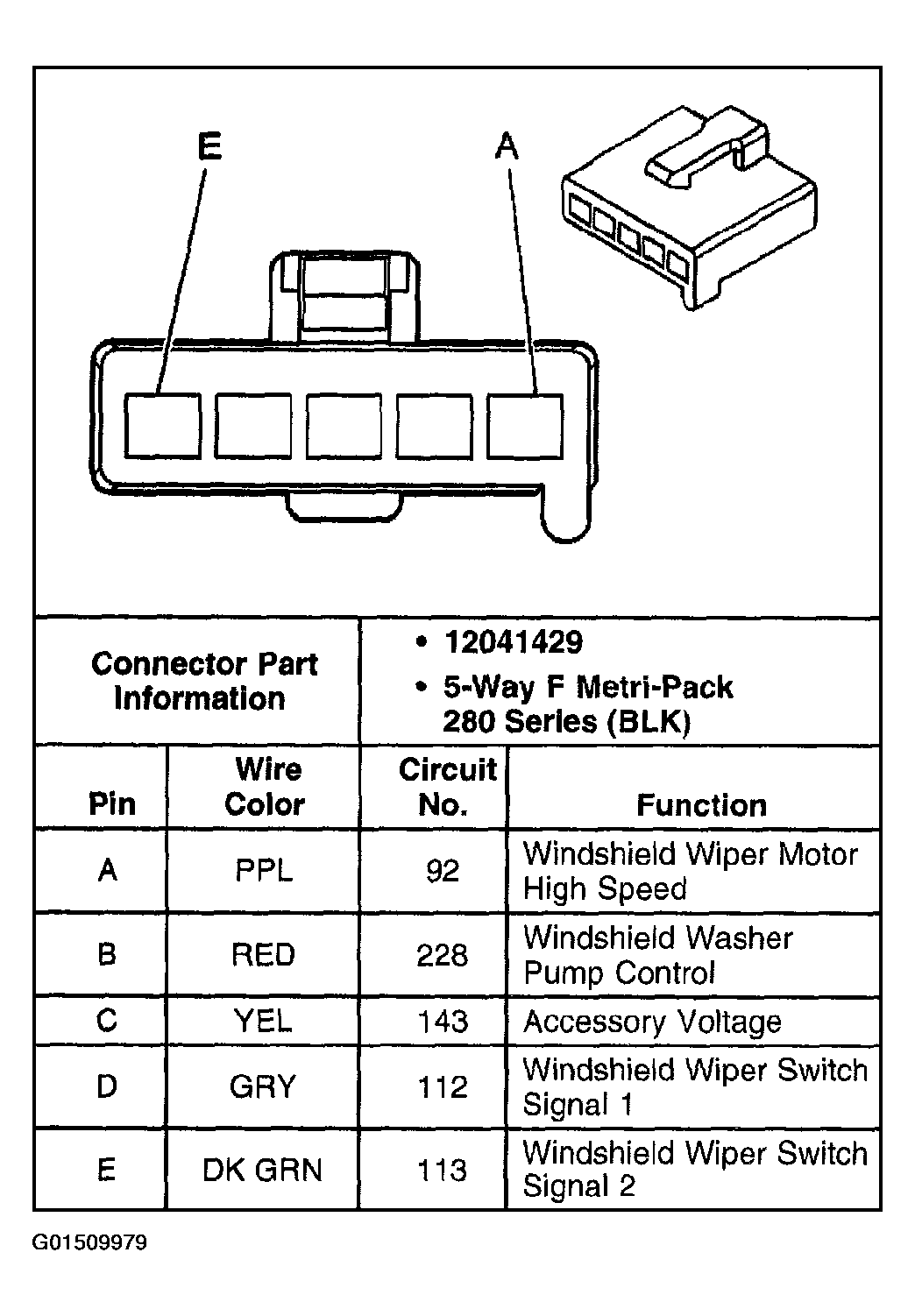

Fig 1: Identifying Turn Signal/Multifunction Switch, C3 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

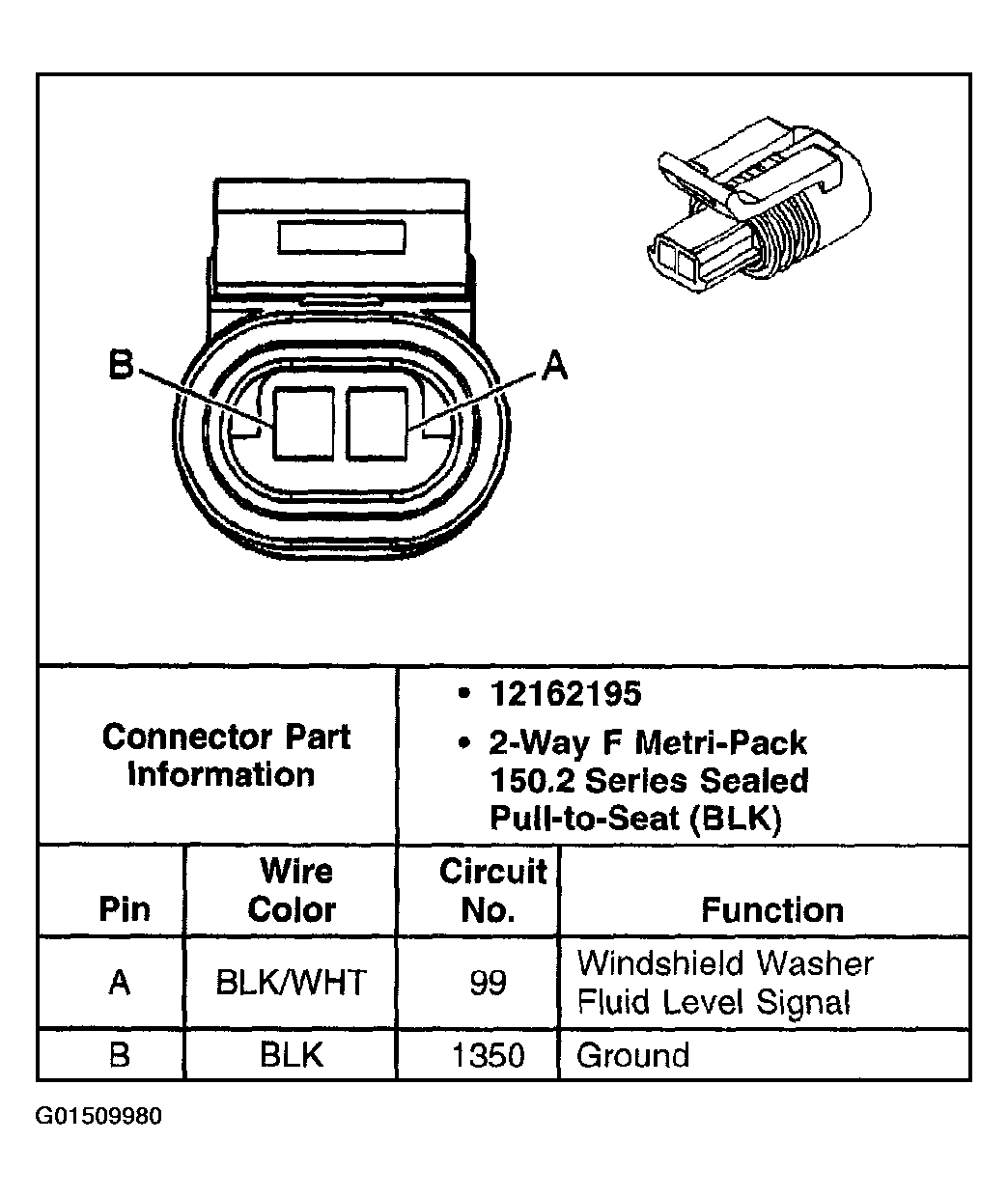

Fig 2: Identifying Washer Fluid Level Sensor Connector Terminal

Courtesy of GENERAL MOTORS CORP.

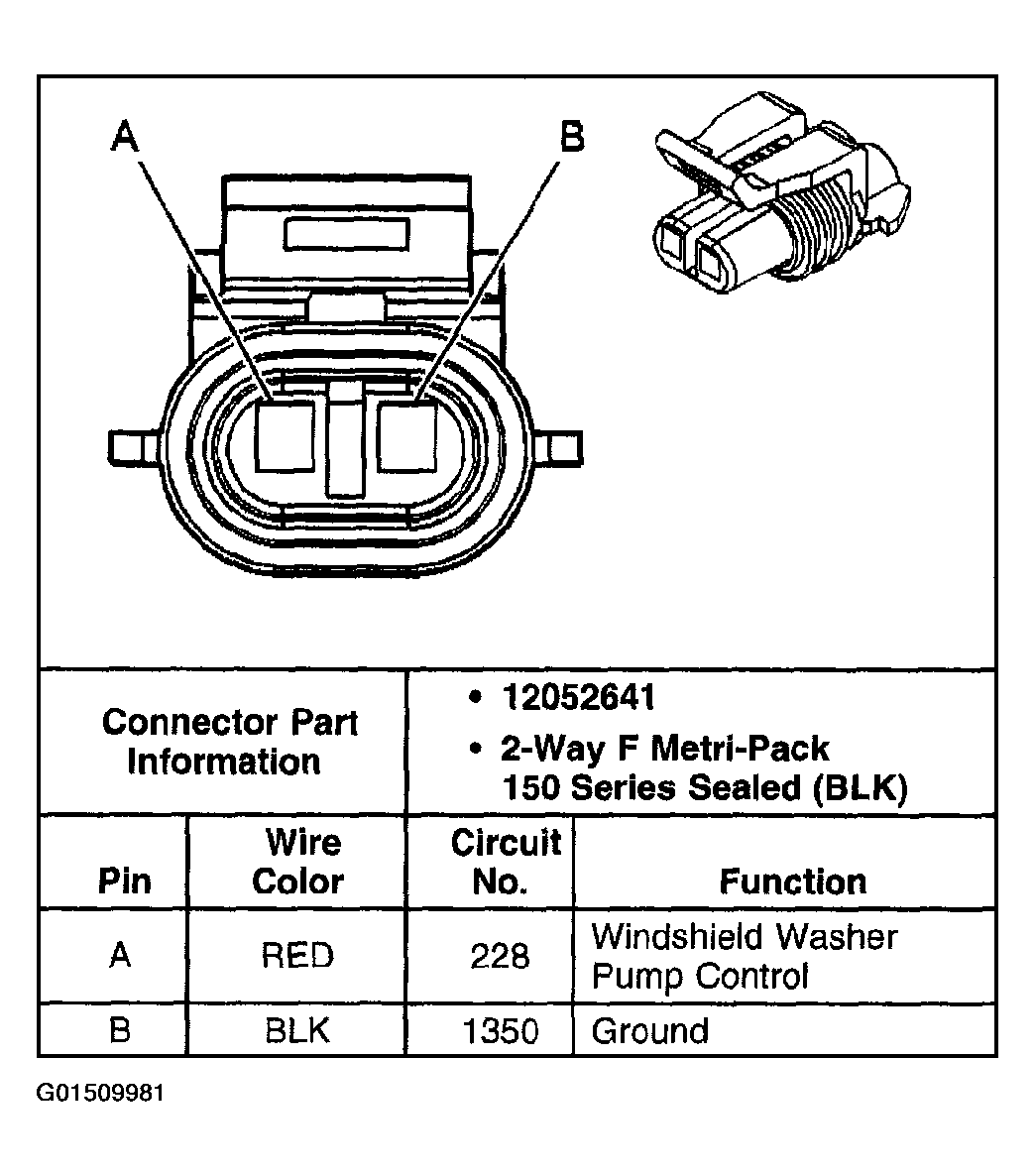

Fig 3: Identifying Windshield Washer Fluid Pump Connector Terminal

Courtesy of GENERAL MOTORS CORP.

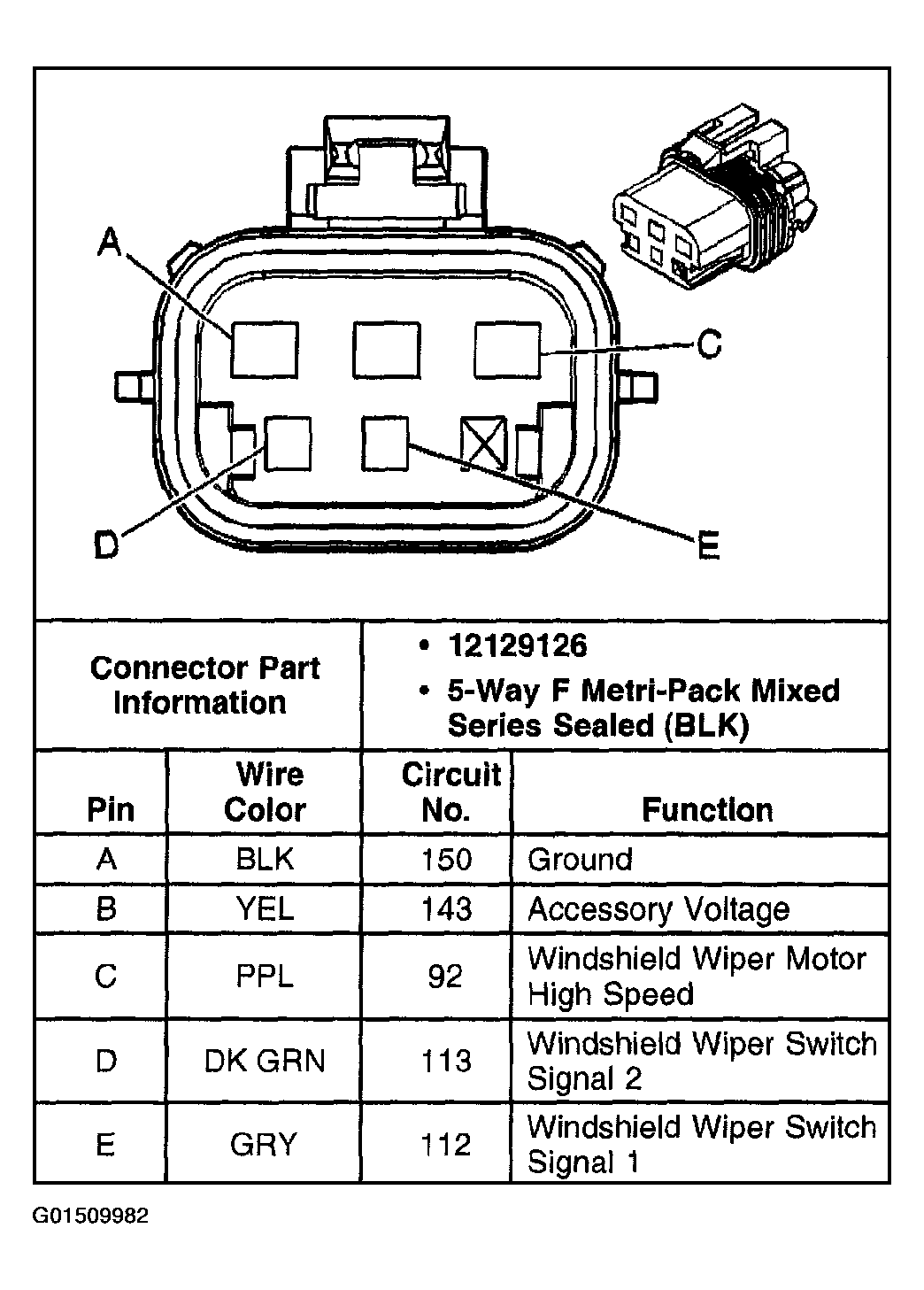

Fig 4: Identifying Windshield Wiper Motor Assembly Connector Terminal

Courtesy of GENERAL MOTORS CORP.
