Cooling System Component Views

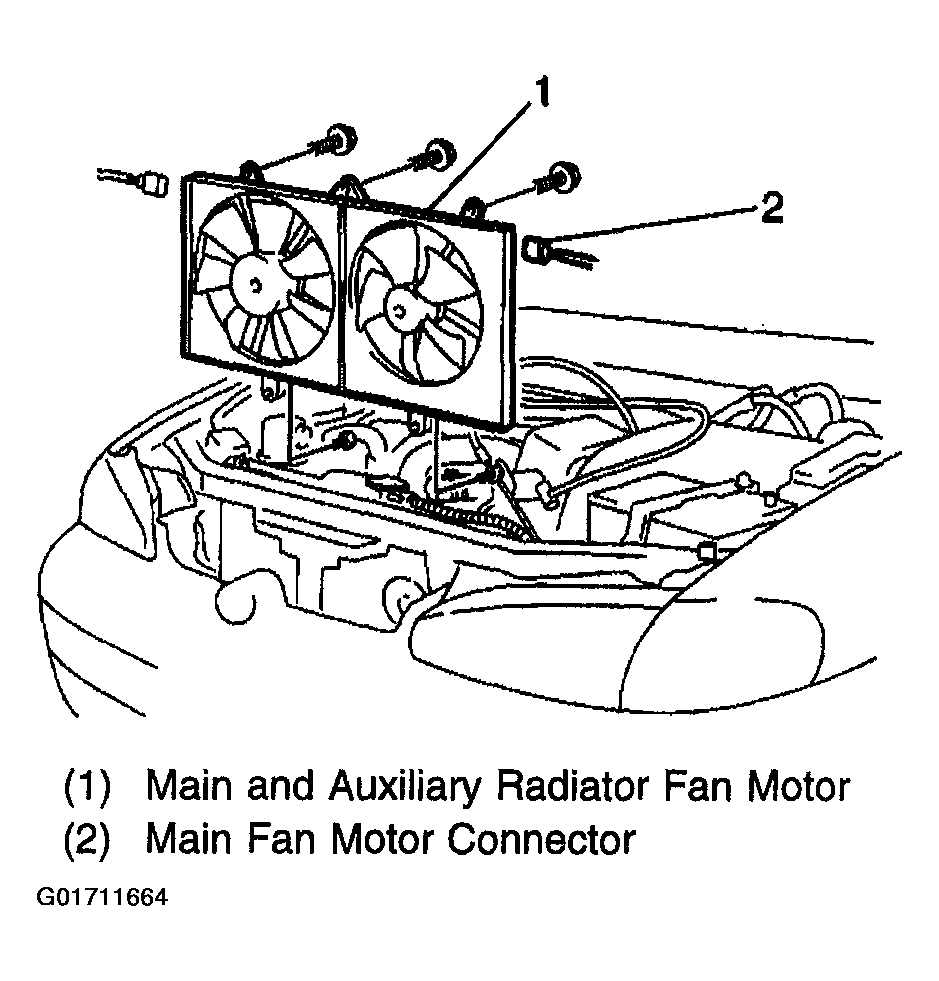

Fig 1: Radiator Fan Motor View
G01711664Courtesy of GENERAL MOTORS CORP.

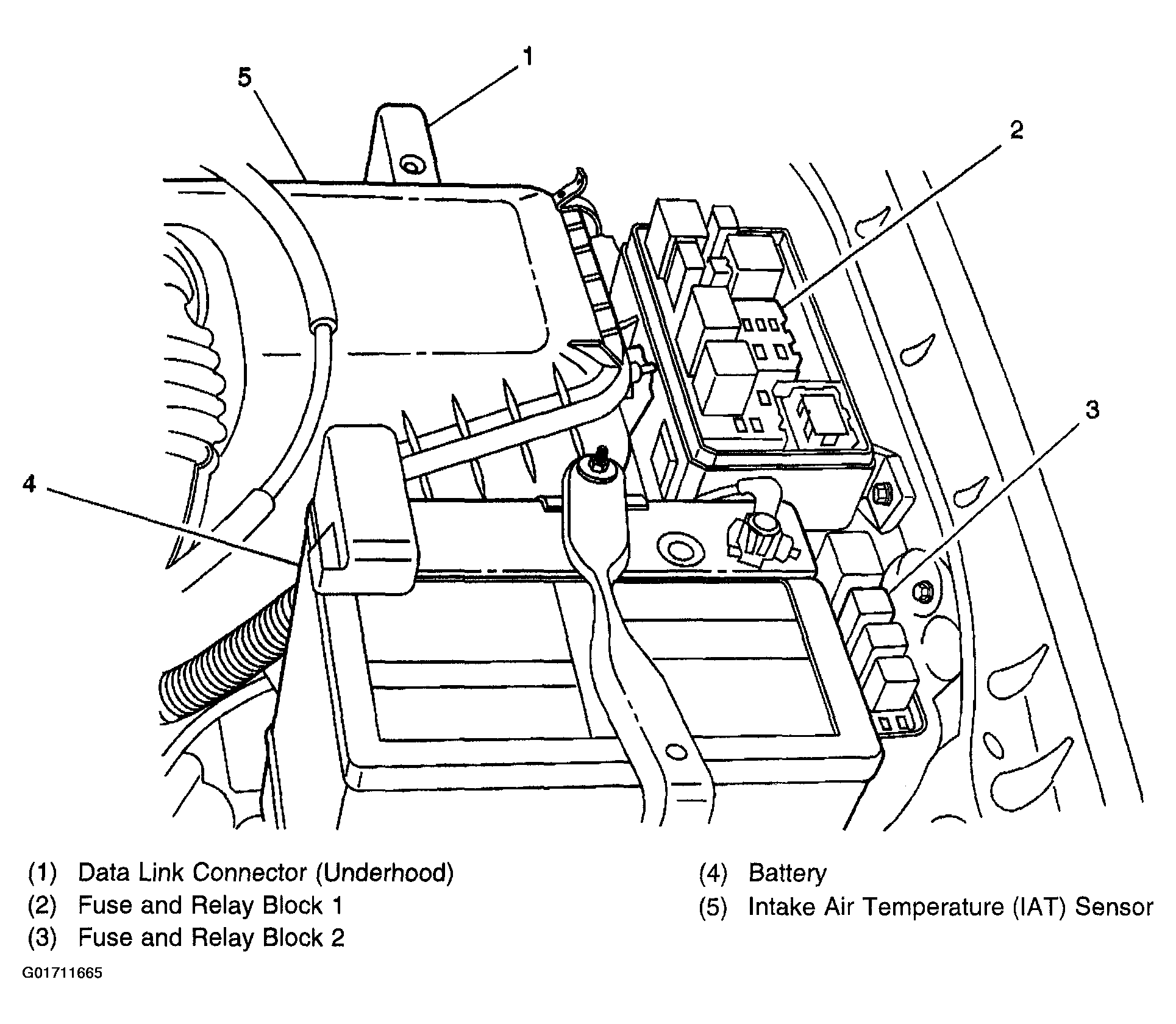

Fig 2: Battery View
G01711665Courtesy of GENERAL MOTORS CORP.
