Horns Component Views

Fig 1: Steering Column Wiring
G01640110Courtesy of GENERAL MOTORS CORP.

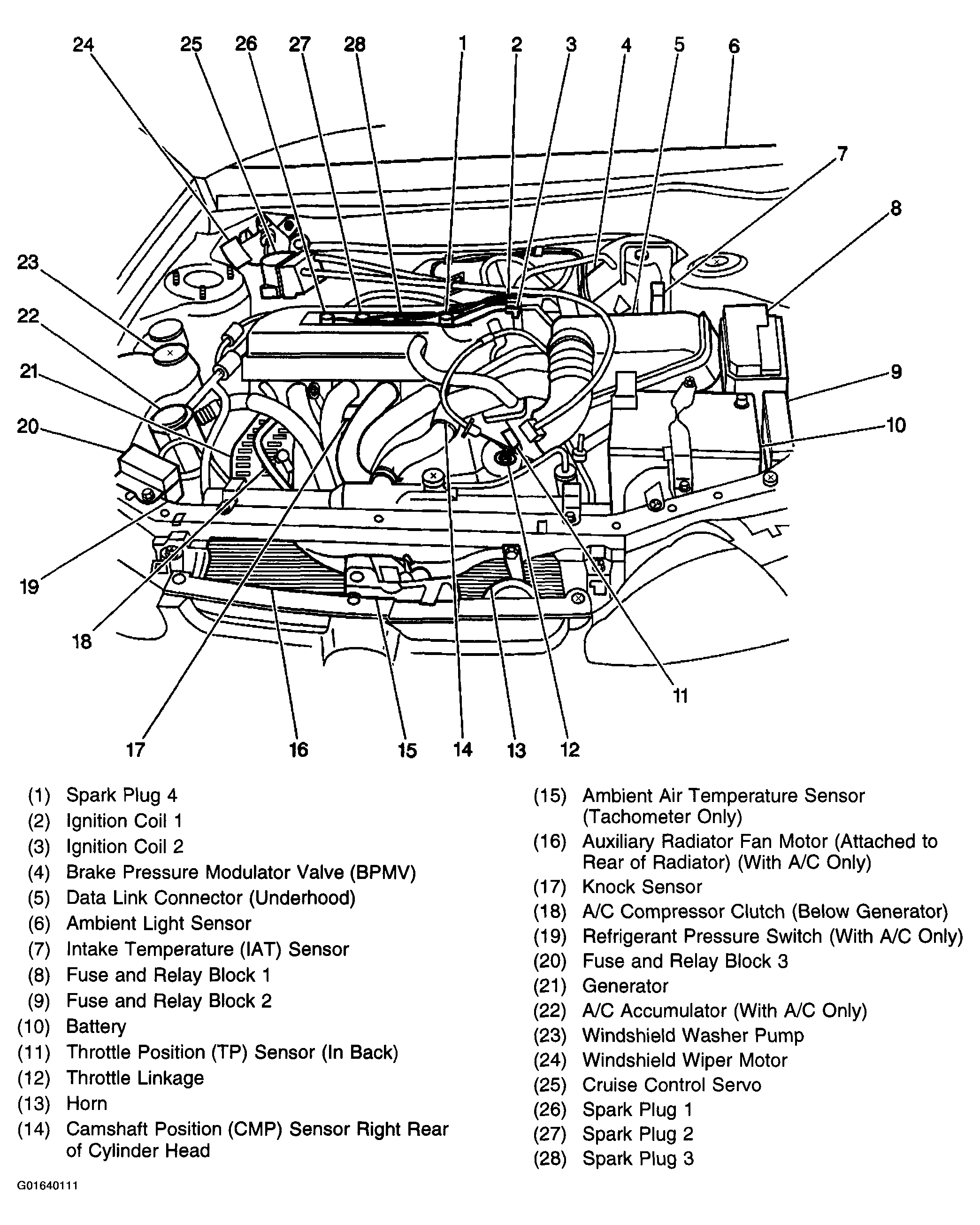

Fig 2: Engine Compartment View
G01640111Courtesy of GENERAL MOTORS CORP.
