Removal Procedure

  1. Remove the front door window. Refer to WINDOW REPLACEMENT - Front Door .
  2. Disconnect the power window motor electrical connector (2), if equipped.
  3. Remove the following components from the door:
    • The 5 bolts (4)
    • The nut (3)
    • The window regulator (1)

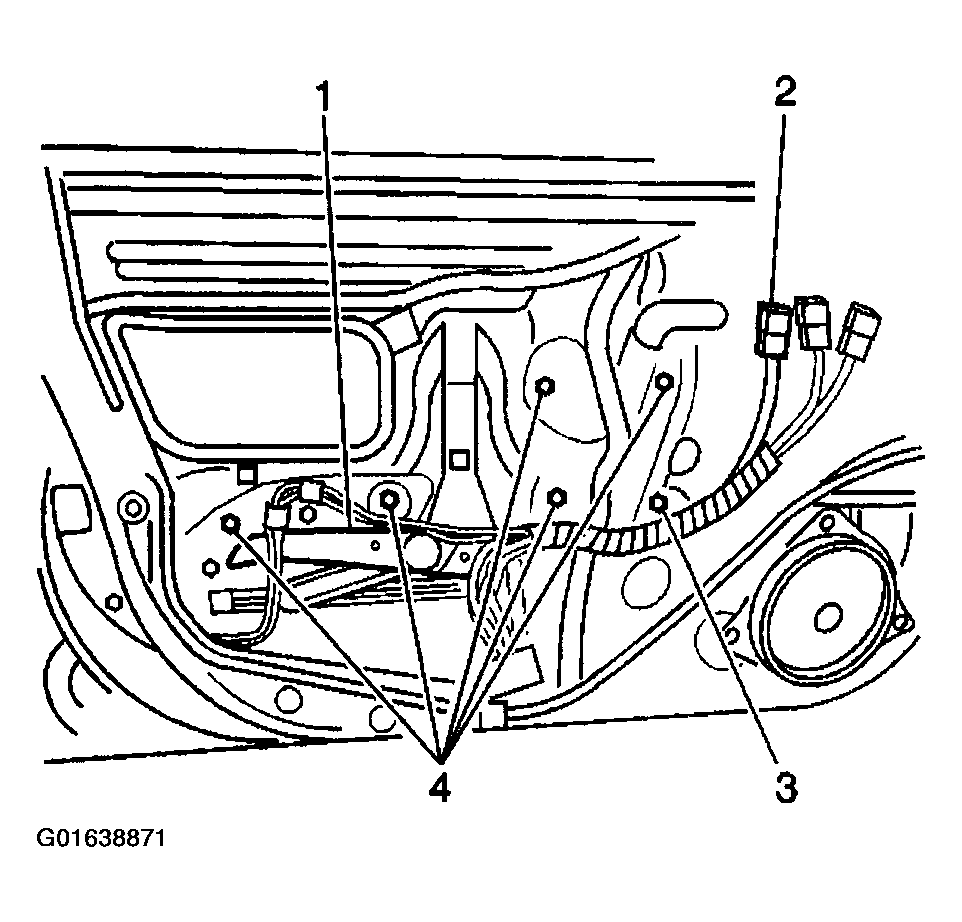

      Fig 1: Disconnecting Power Window Motor Electrical Connector
      G01638871Courtesy of GENERAL MOTORS CORP.
