Auxiliary Fan Motor Connector End View

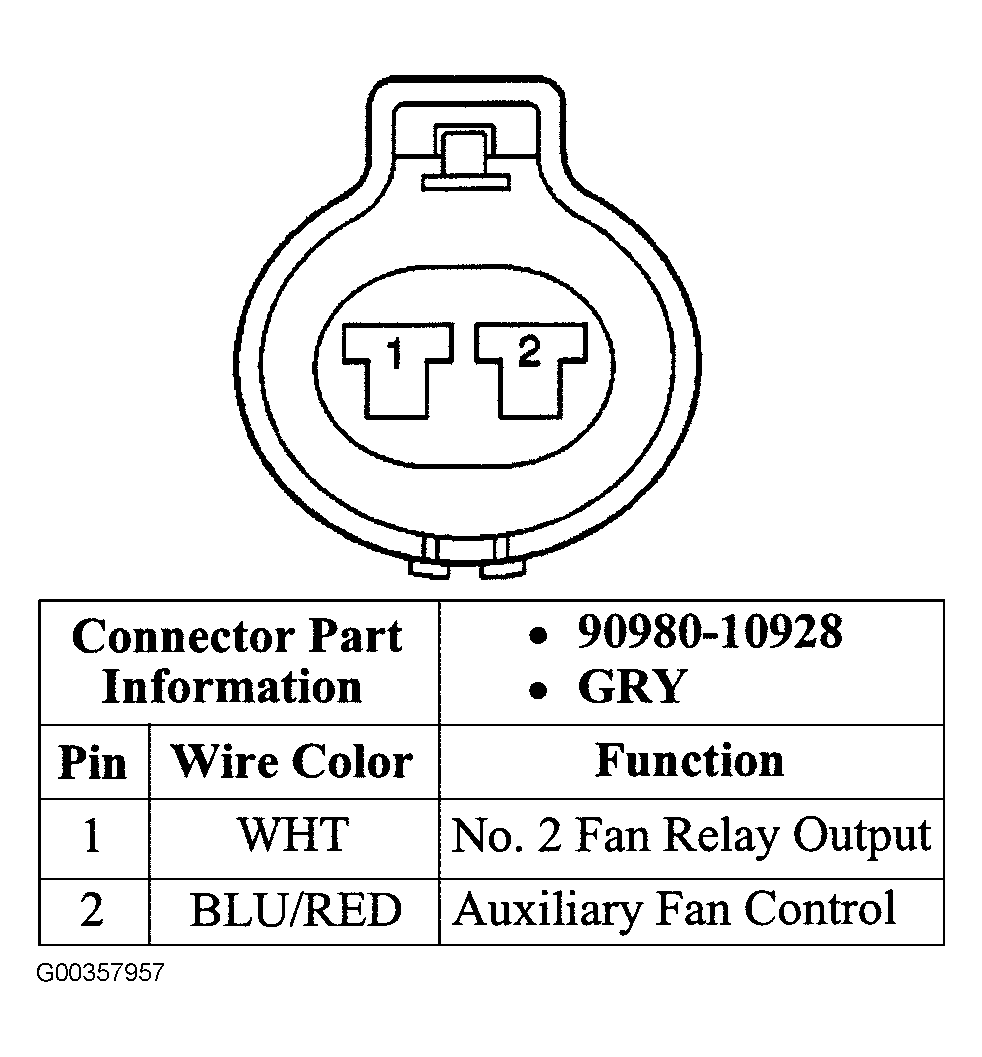

Fig 1: Auxiliary Fan Motor
G00357957Courtesy of GENERAL MOTORS CORP.


Fig 1: Auxiliary Fan Motor
G01711667Courtesy of GENERAL MOTORS CORP.
