Power Windows Inoperative - Lockout Function

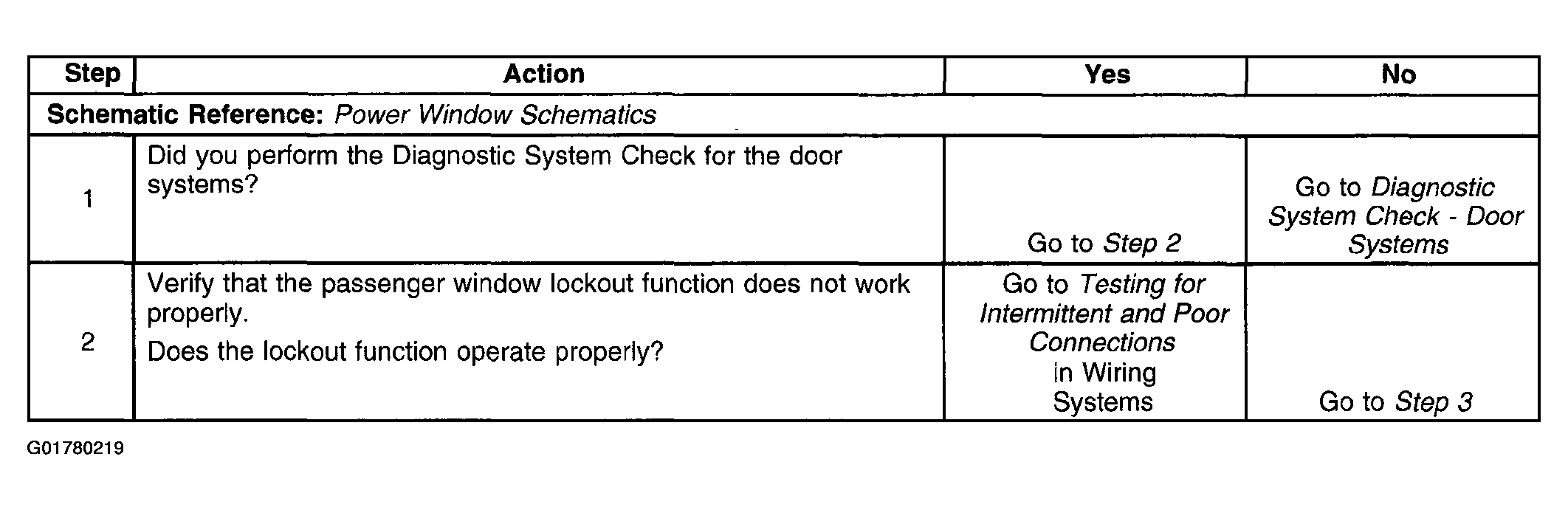

Fig 1: Identifying Power Windows Inoperative - Lockout Function Diagnostic Tables (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

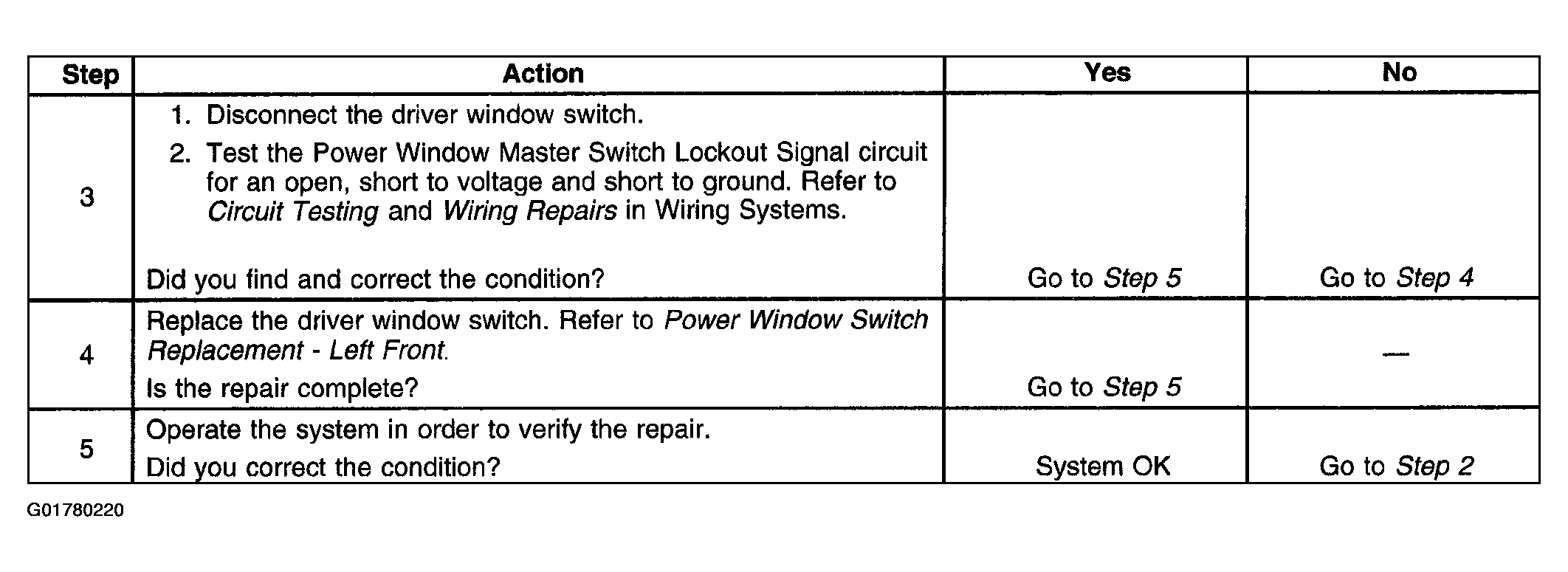

Fig 2: Identifying Power Windows Inoperative - Lockout Function Diagnostic Tables (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
