Steering Column - Column Shift

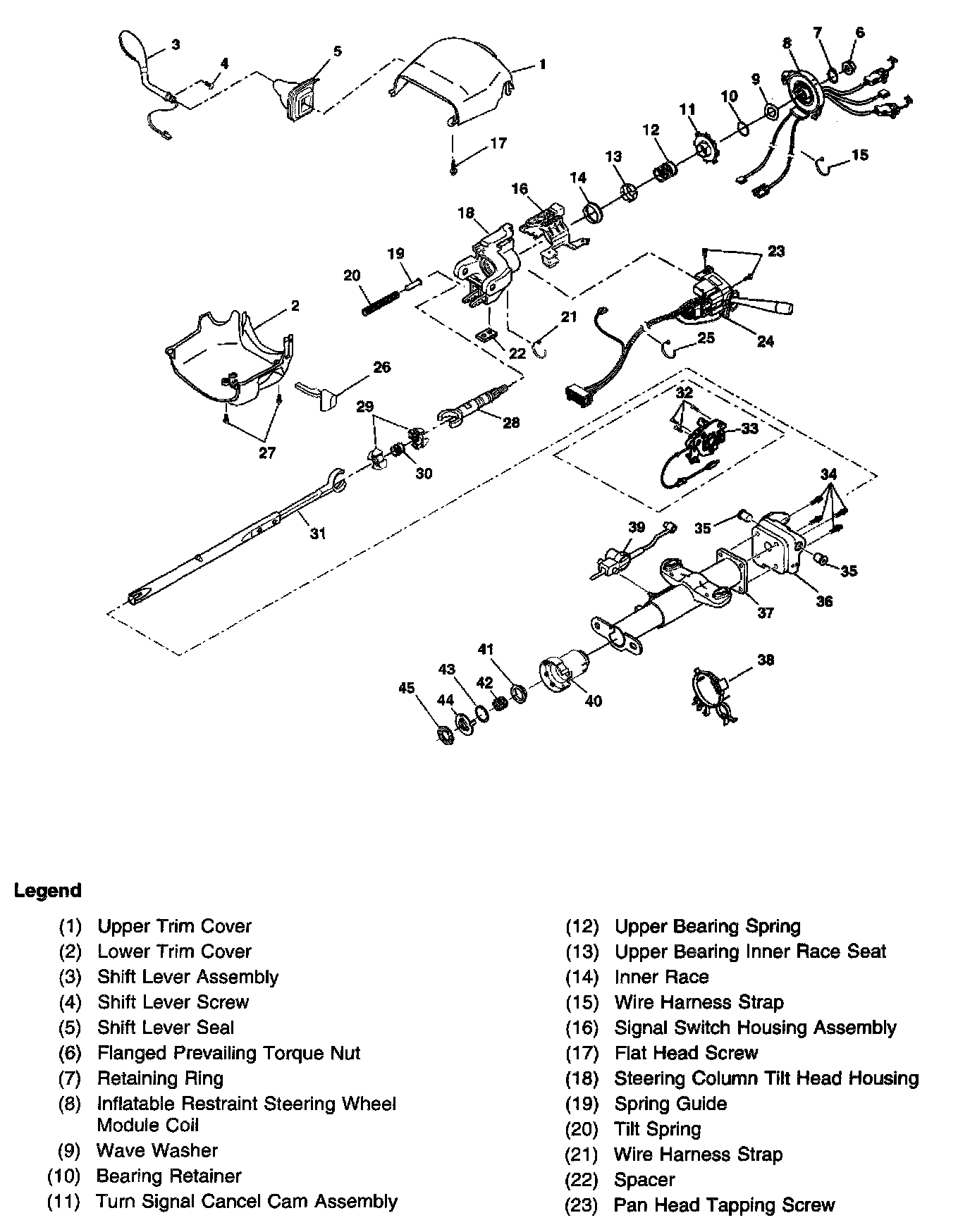

Steering Column Disassembled View (Column Shift)





Part 1 of 2

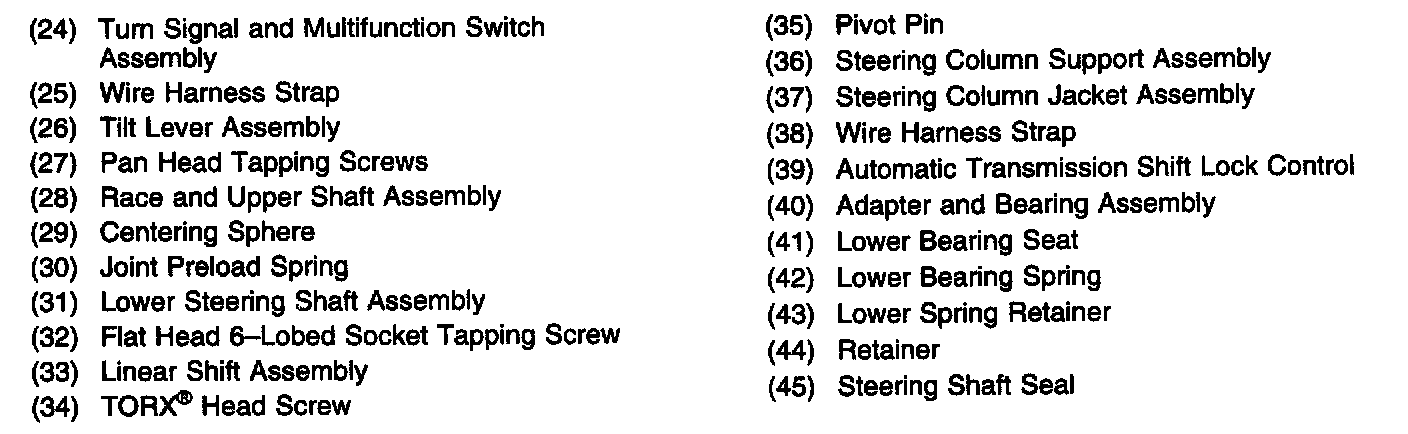

Part 2 of 2

Tilt Steering Column
