Installation (Impala)

  1. Position the front floor console to the vehicle. Connect the electrical connectors. Install the front floor console. Engage the clips at the instrument panel. See Fig 2 .
  2. Install the following front floor console bolts: near the instrument panel, at the transaxle shift control lever and under the mat in the rear bin. See Fig 1 .
  3. Tighten the bolts to 106 INCH lbs. (12 N.m). Install the trim plate to the front floor console. See CONSOLE TRIM PLATE  .

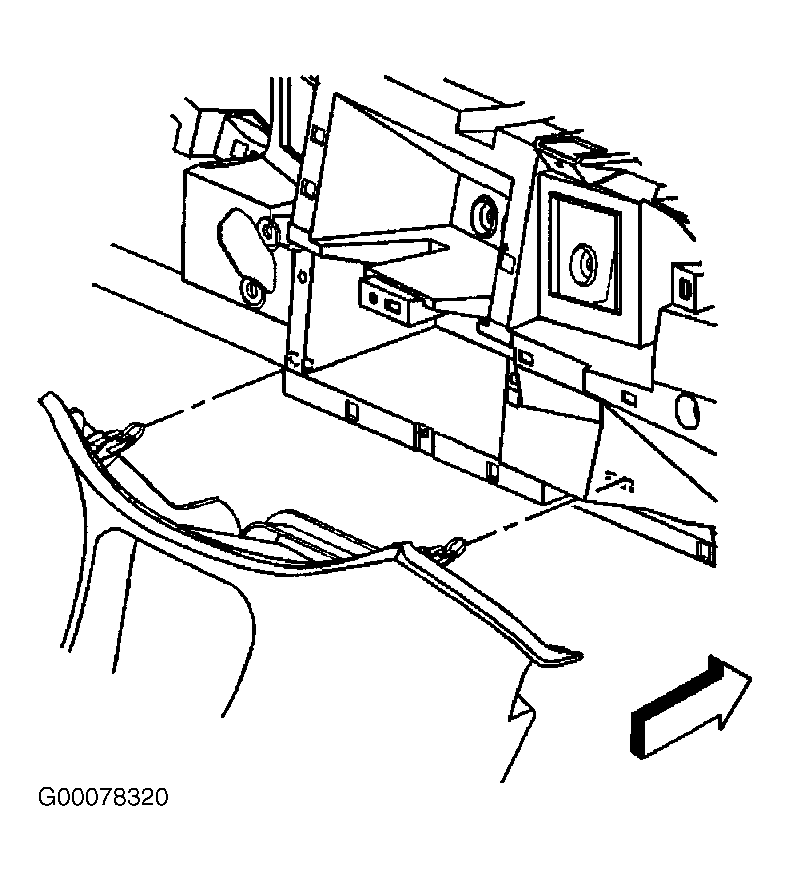

Fig 1: Removing & Installing Floor Console Retainers (Impala)
G00078320Courtesy of GENERAL MOTORS CORP.

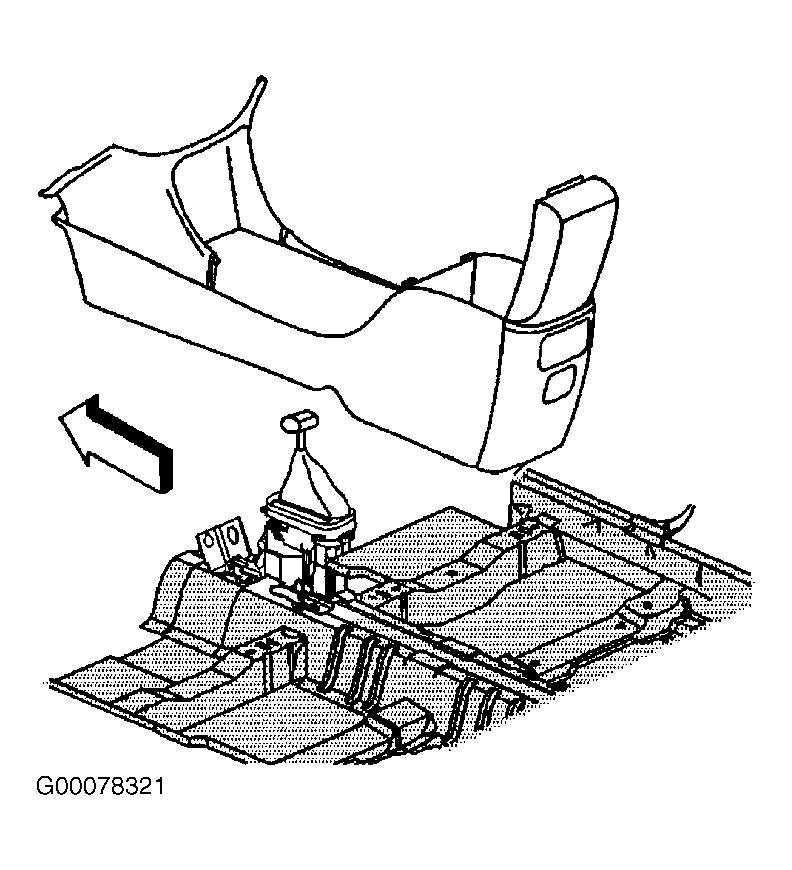

Fig 2: Removing & Installing Floor Console (Impala)
G00078321Courtesy of GENERAL MOTORS CORP.
