Seat Belt Connector End Views

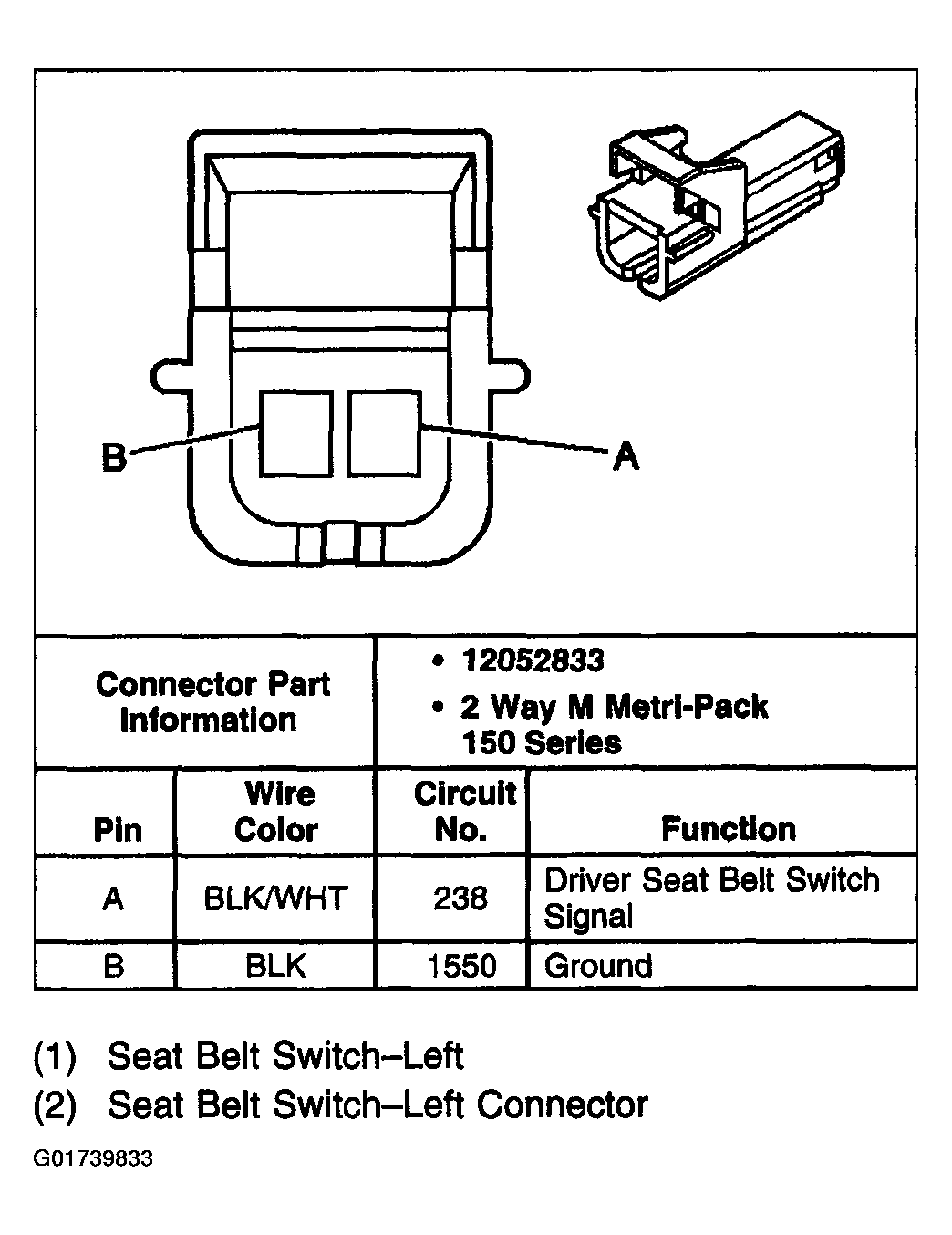

Fig 1: Identifying Seat Belt Switch (Driver's Seat)

Courtesy of GENERAL MOTORS CORP.
