Coolant Level Switch Connector End View

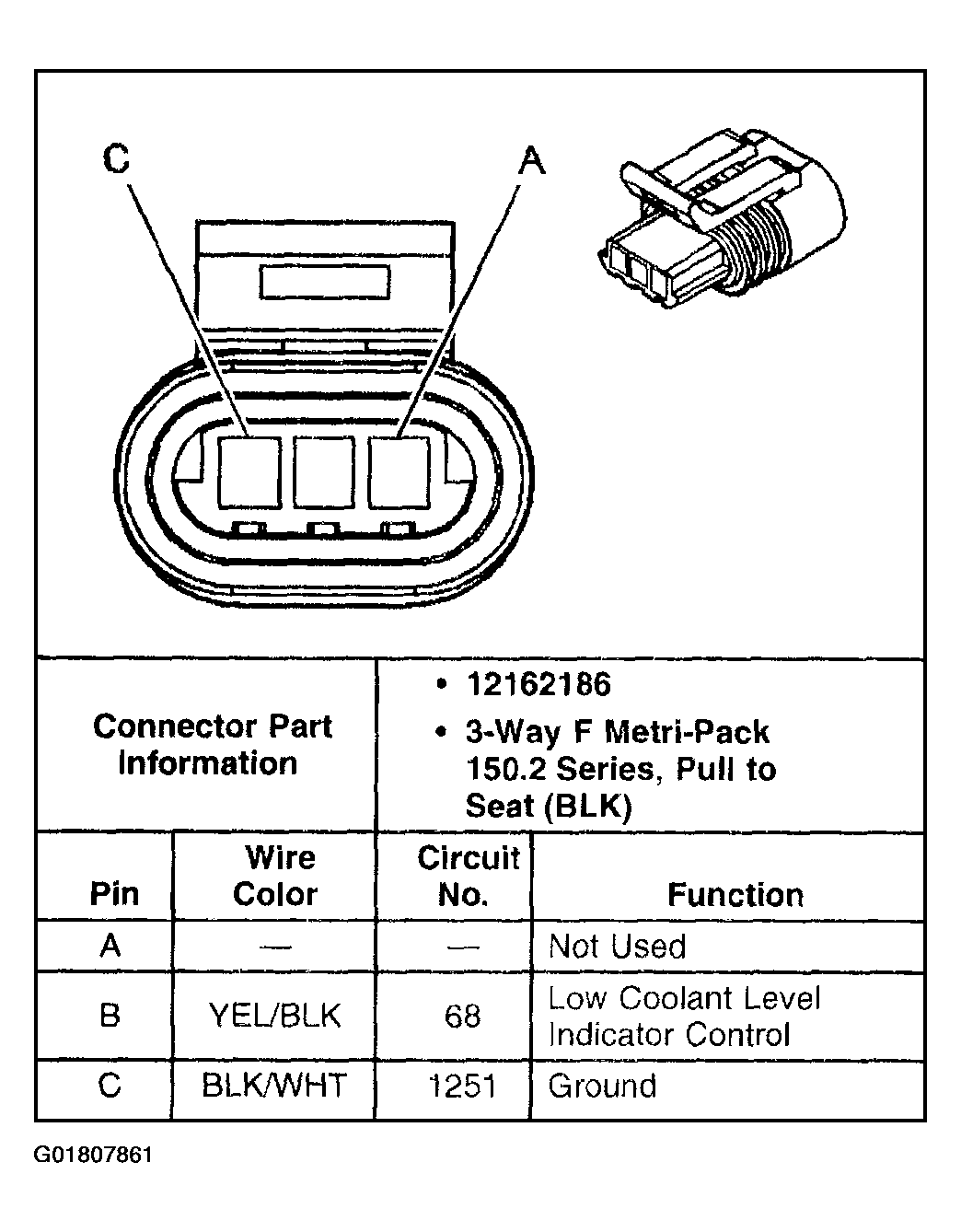

Fig 1: Coolant Level Switch
G01807861Courtesy of GENERAL MOTORS CORP.
