Cooling System Connector End Views

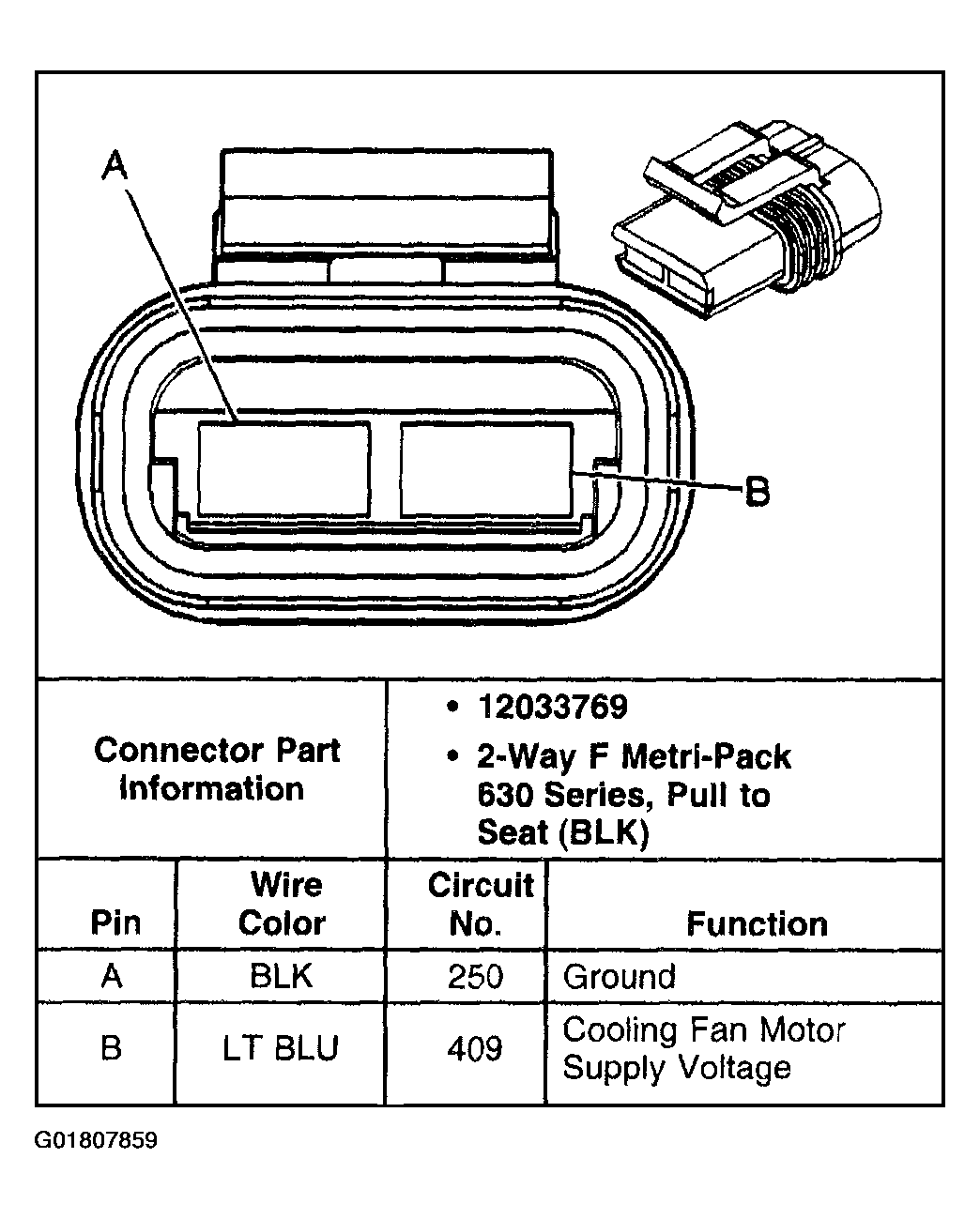

Fig 1: Identifying Left Cooling Fan Connector Terminals
G01807859Courtesy of GENERAL MOTORS CORP.

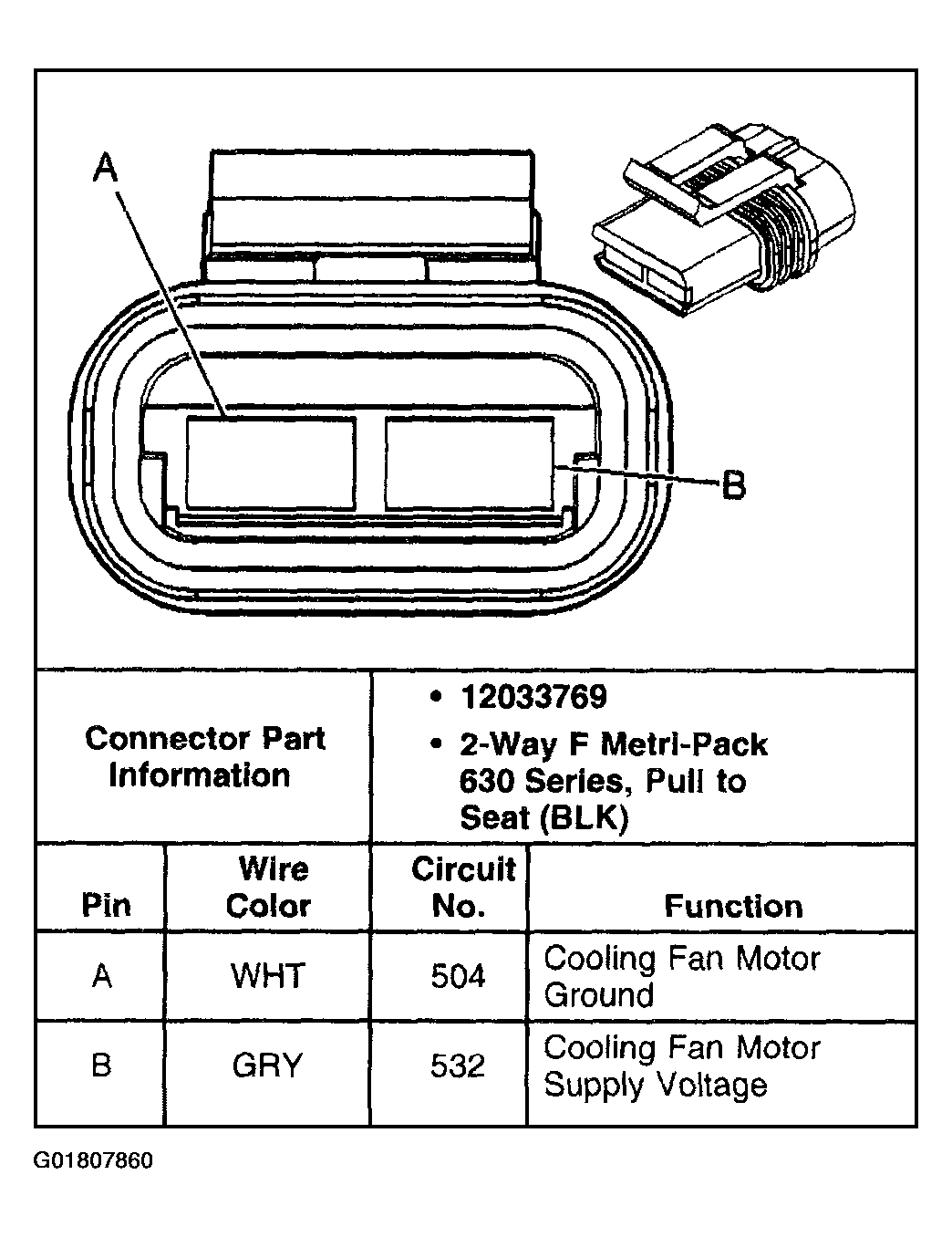

Fig 2: Identifying Right Cooling Fan Connector Terminals
G01807860Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Coolant Level Switch Connector Terminals
G01807861Courtesy of GENERAL MOTORS CORP.
