Test Description

The number below refer to the step number on the diagnostic table.

  1. 3)  - This step checks for an open in the ground circuits.

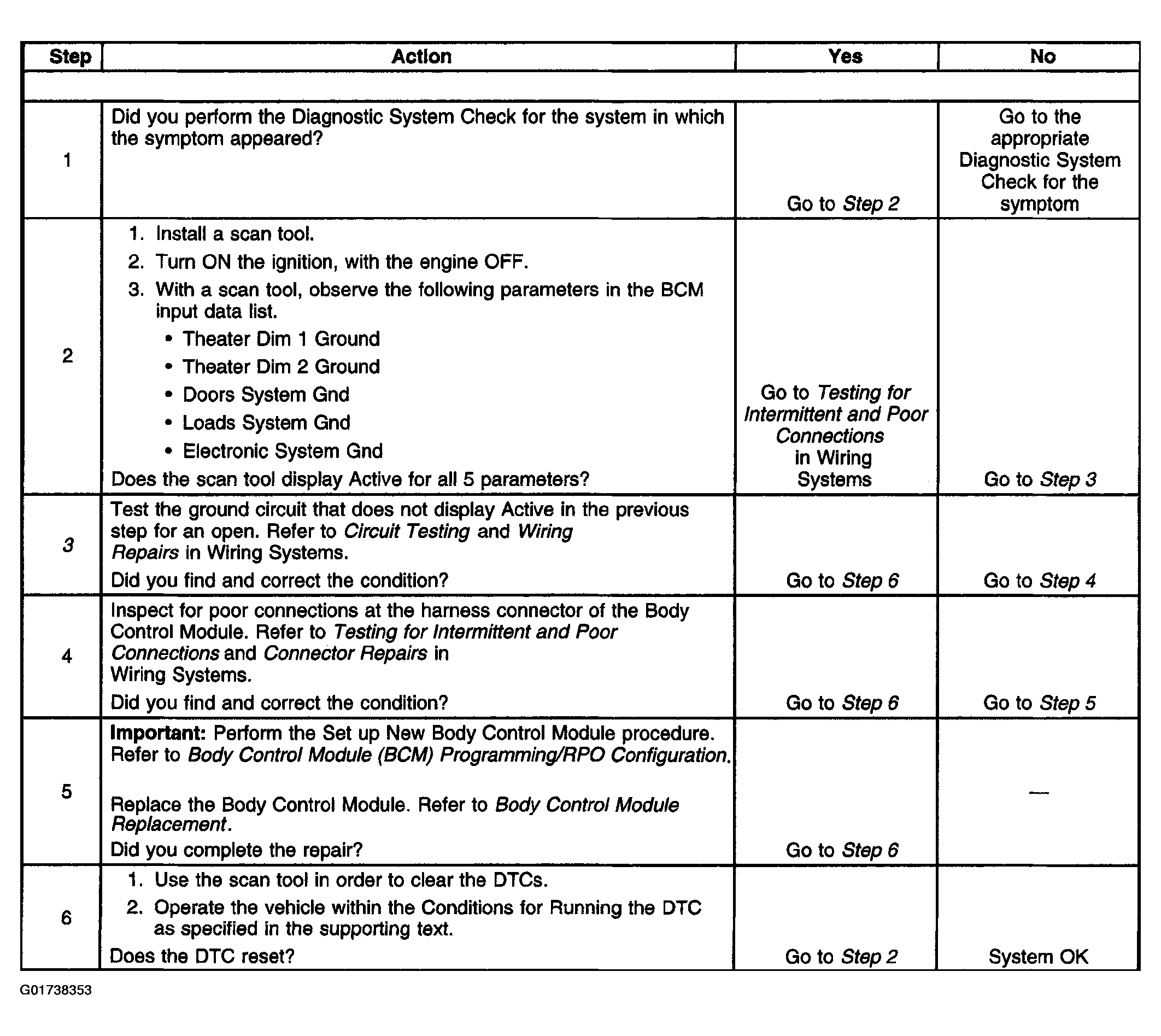

  2. Fig 1: DTC B1349 Diagnostic
    G01738353Courtesy of GENERAL MOTORS CORP.
