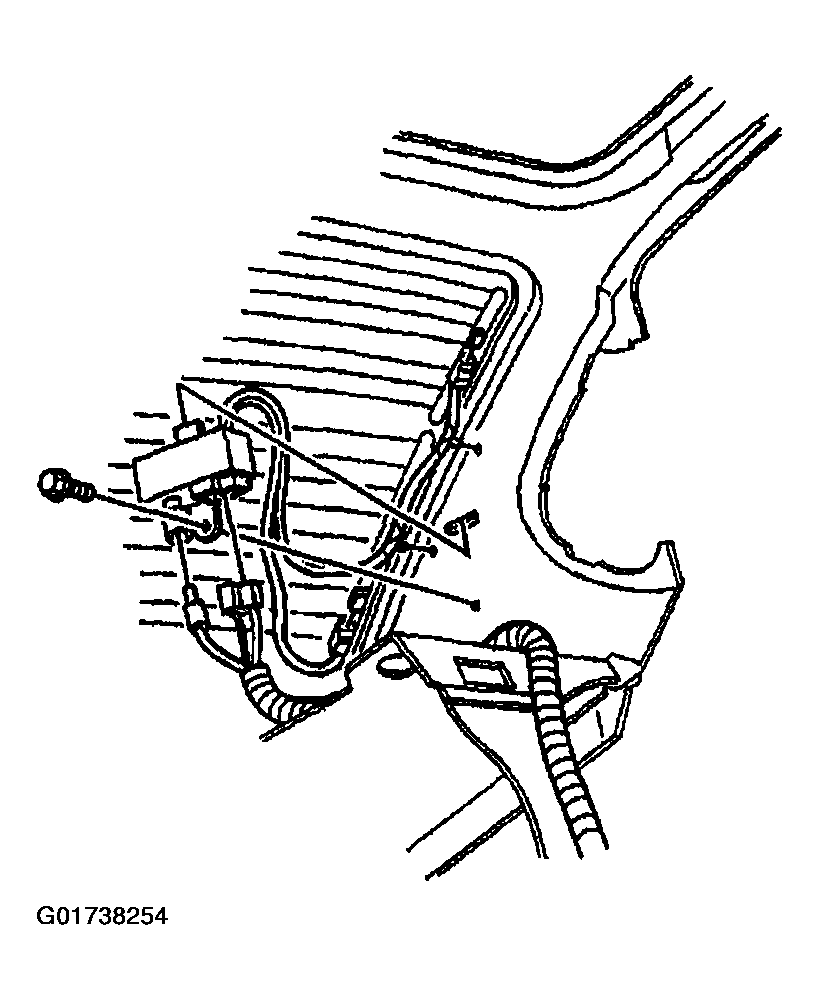

Removal Procedure
- Remove the LH rear quarter upper trim panel.
- Disconnect the antenna amplifier electrical connector and the antenna coaxial cable. The antenna coaxial cable uses a sliding snap-lock. Pull the lock in order to remove the antenna coaxial cable.
- Detach the black antenna leads from the glass. The upper lead is held to the body metal with a wiring clip. Carefully pry the clip out of the metal.
- Remove the antenna amplifier bolt.
- Remove the antenna amplifier.
Courtesy of GENERAL MOTORS CORP.
