Windshield Wiper System Module Connector End View

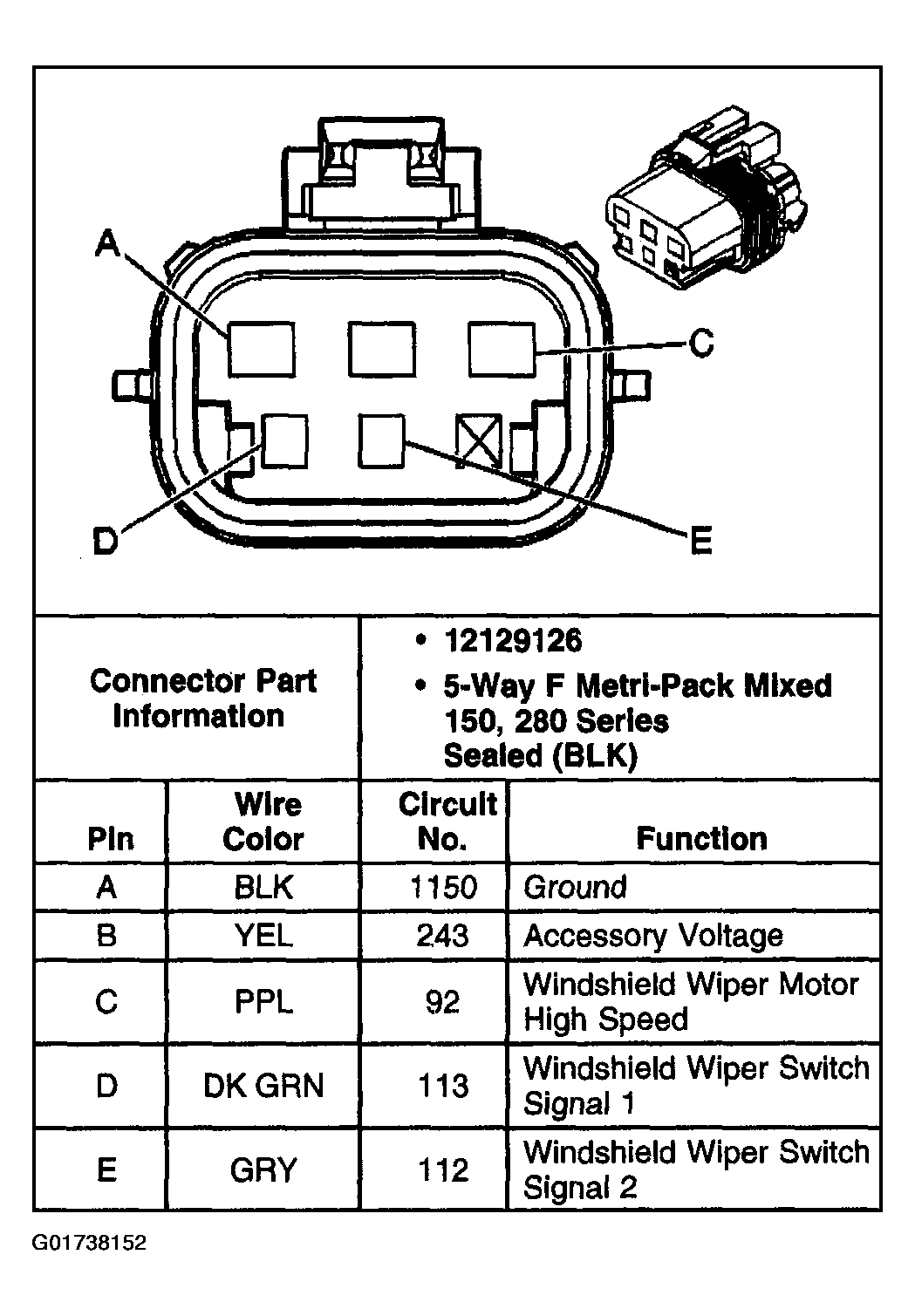

Fig 1: Windshield Wiper System Module
G01738152Courtesy of GENERAL MOTORS CORP.
