Home >> Chevrolet >> 2002 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> Differential Carrier and Case Assembly
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

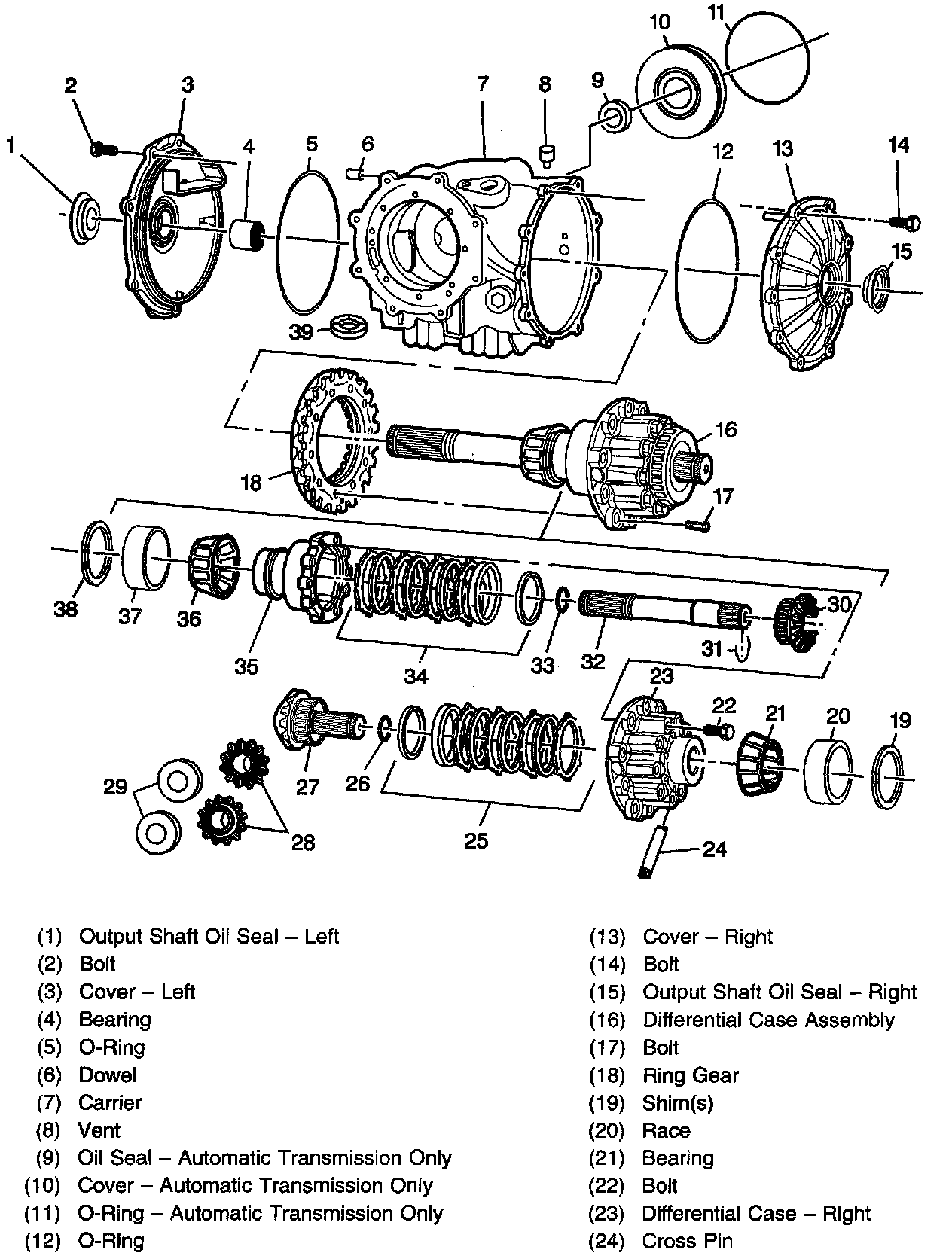

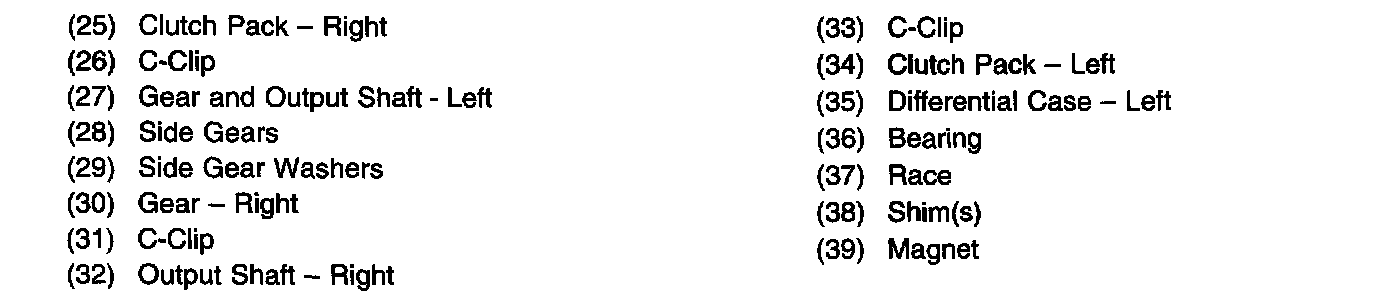

Differential Carrier and Case Assembly









Differential Carrier and Case Assembly
