Theft Deterrent System Component Views

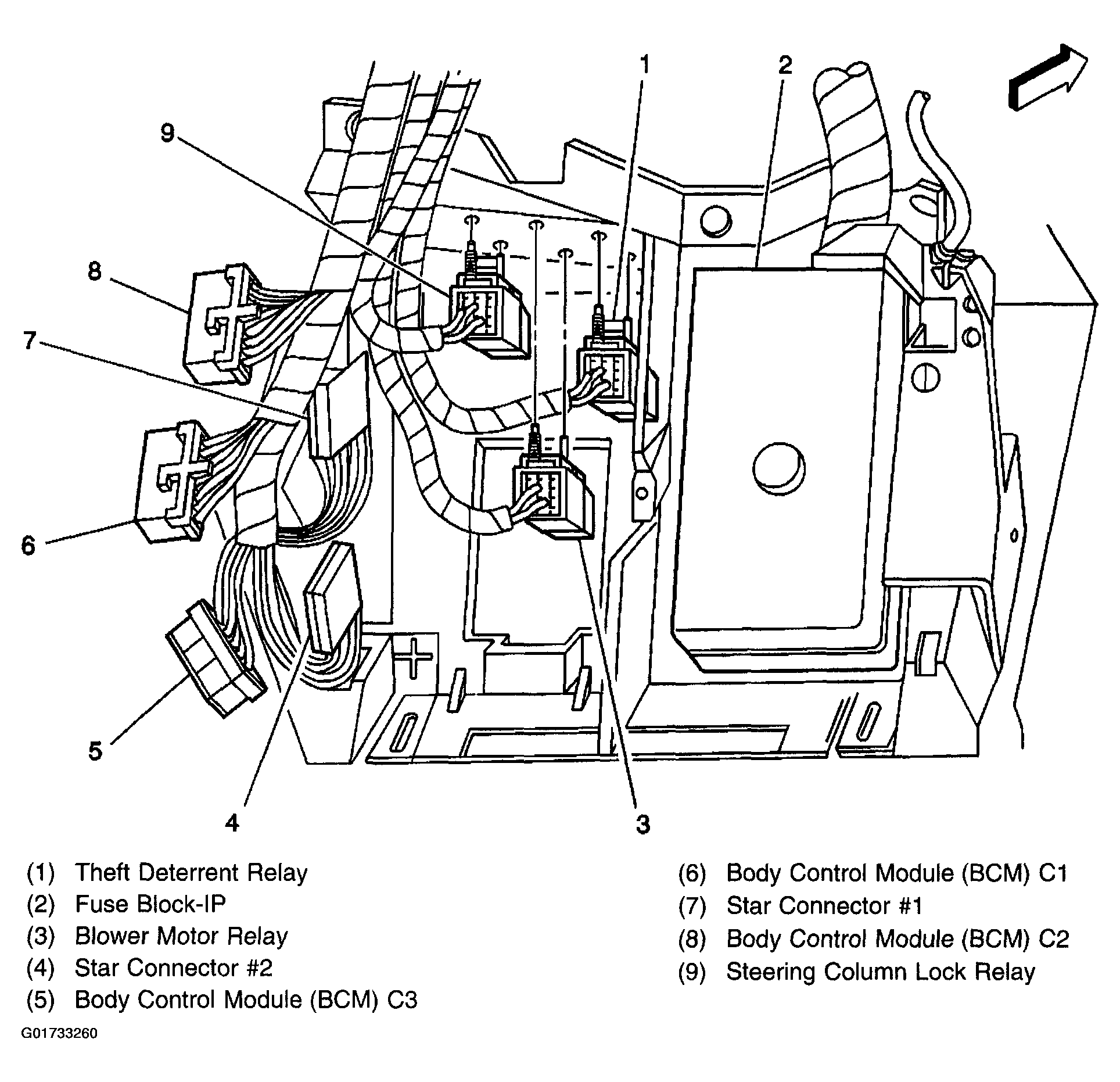

Fig 1: View Under RH Side Of Dash

Courtesy of GENERAL MOTORS CORP.
