Removal Procedure

  1. Remove the weatherstrip from the roof rail.
  2. Remove the weatherstrip retainers from the holes in the roof rail.

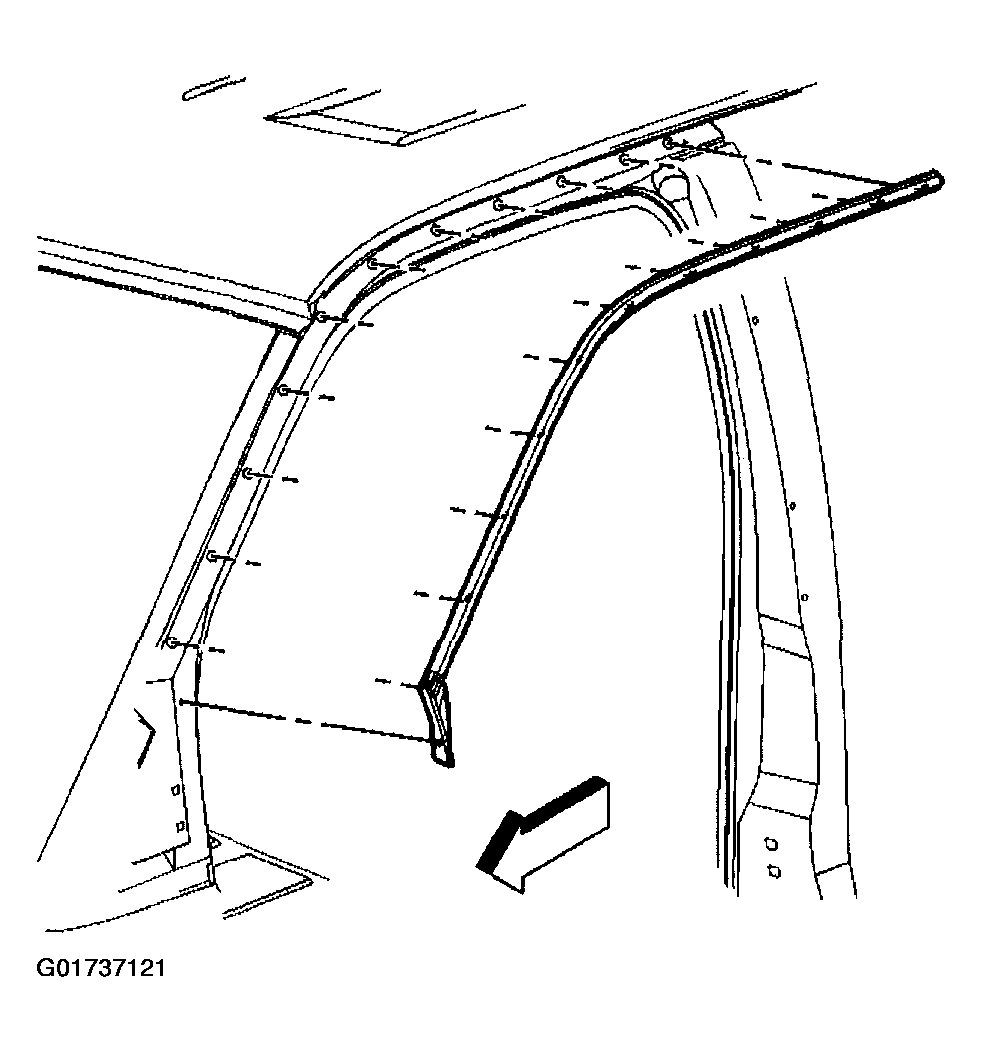

Fig 1: Removing Drip Rail Weatherstrip
G01737121Courtesy of GENERAL MOTORS CORP.
