Installation Procedure

  1. Install the multi-function audio alarm module (2) to the vehicle.
  2. Connect the electrical connector (3) to the multi-function audio alarm module (2).
  3. Connect the multi-function audio alarm module (2) to the retainer (4) on the left inside knee bolster bracket.
  4. Install the instrument panel driver knee bolster panel. Refer to Trim Panel Replacement - Knee Bolster .

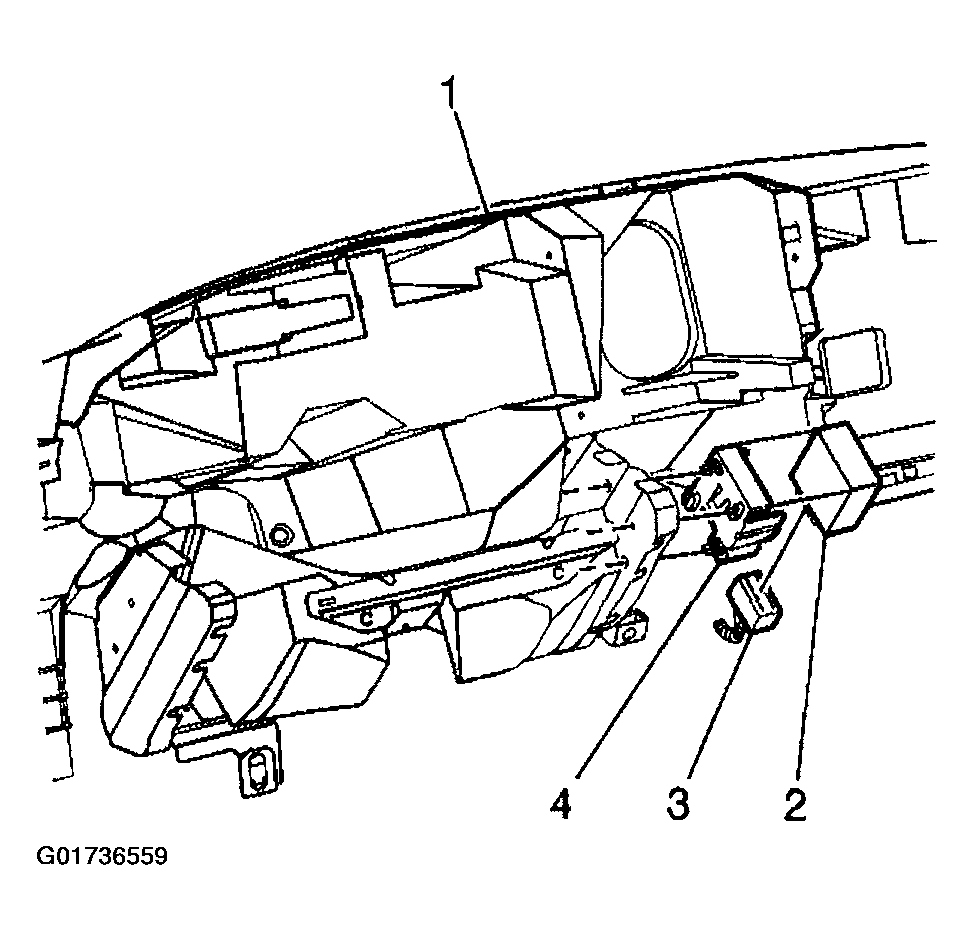

    Fig 1: Connecting & Installing Multi-Function Audio Alarm Module
    G01736559Courtesy of GENERAL MOTORS CORP.
