Component Locations

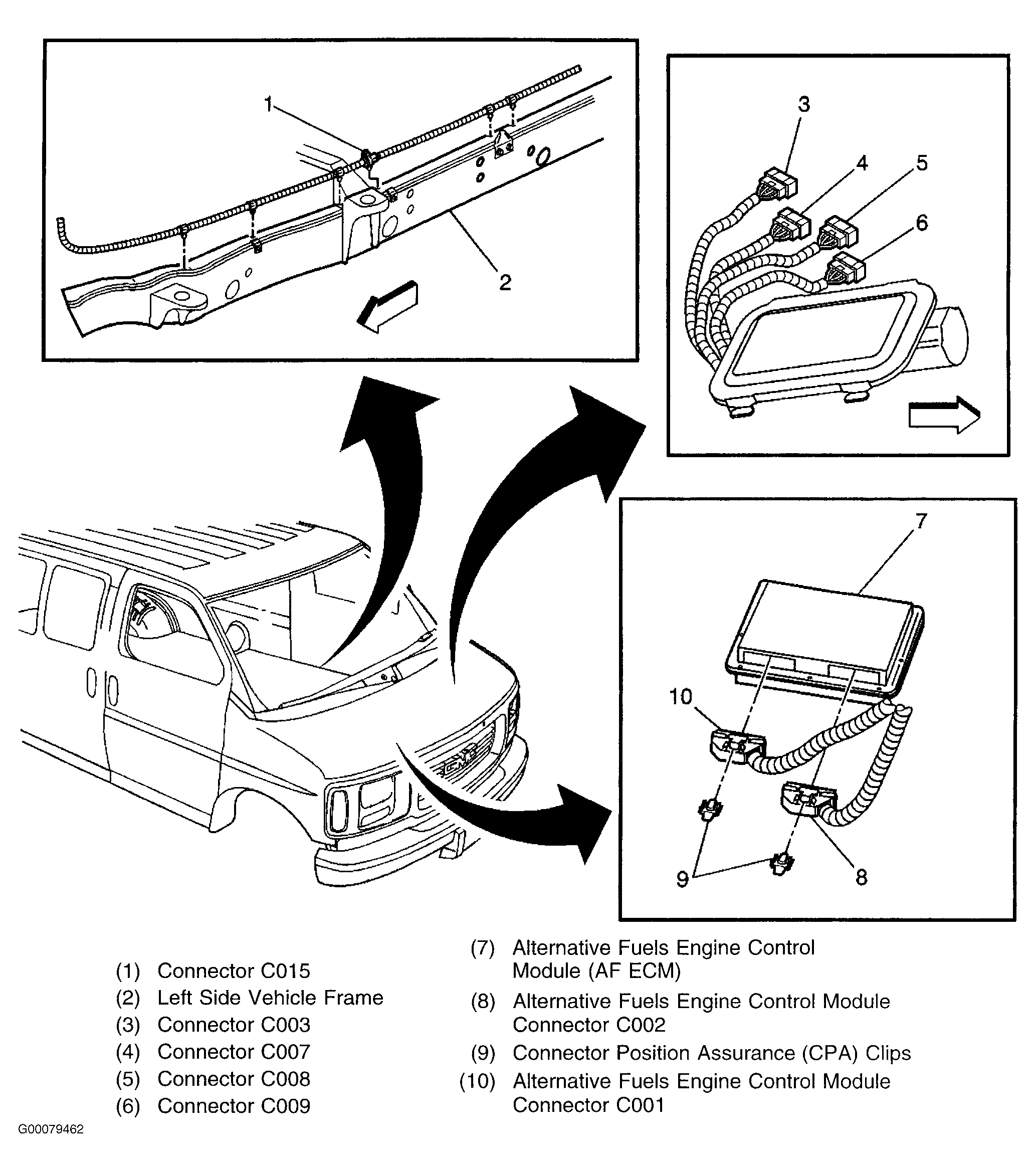

Fig 1: Locating AF ECM & Alternative Fuels Connectors

Courtesy of GENERAL MOTORS CORP.

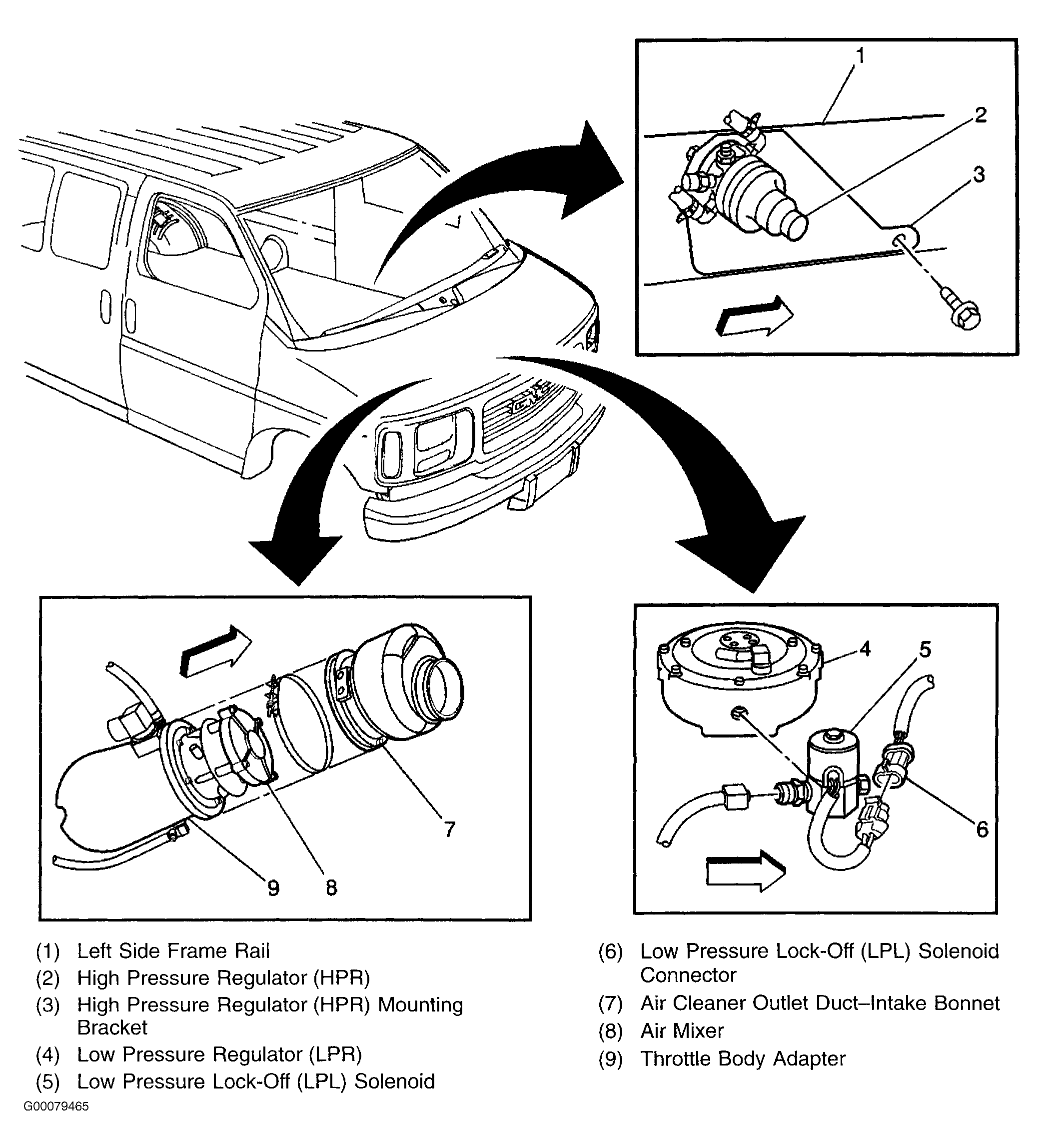

Fig 2: Locating Air Mixer, High Pressure Regulator, Low Pressure Lock-Off Solenoid & Low Pressure Regulator

Courtesy of GENERAL MOTORS CORP.

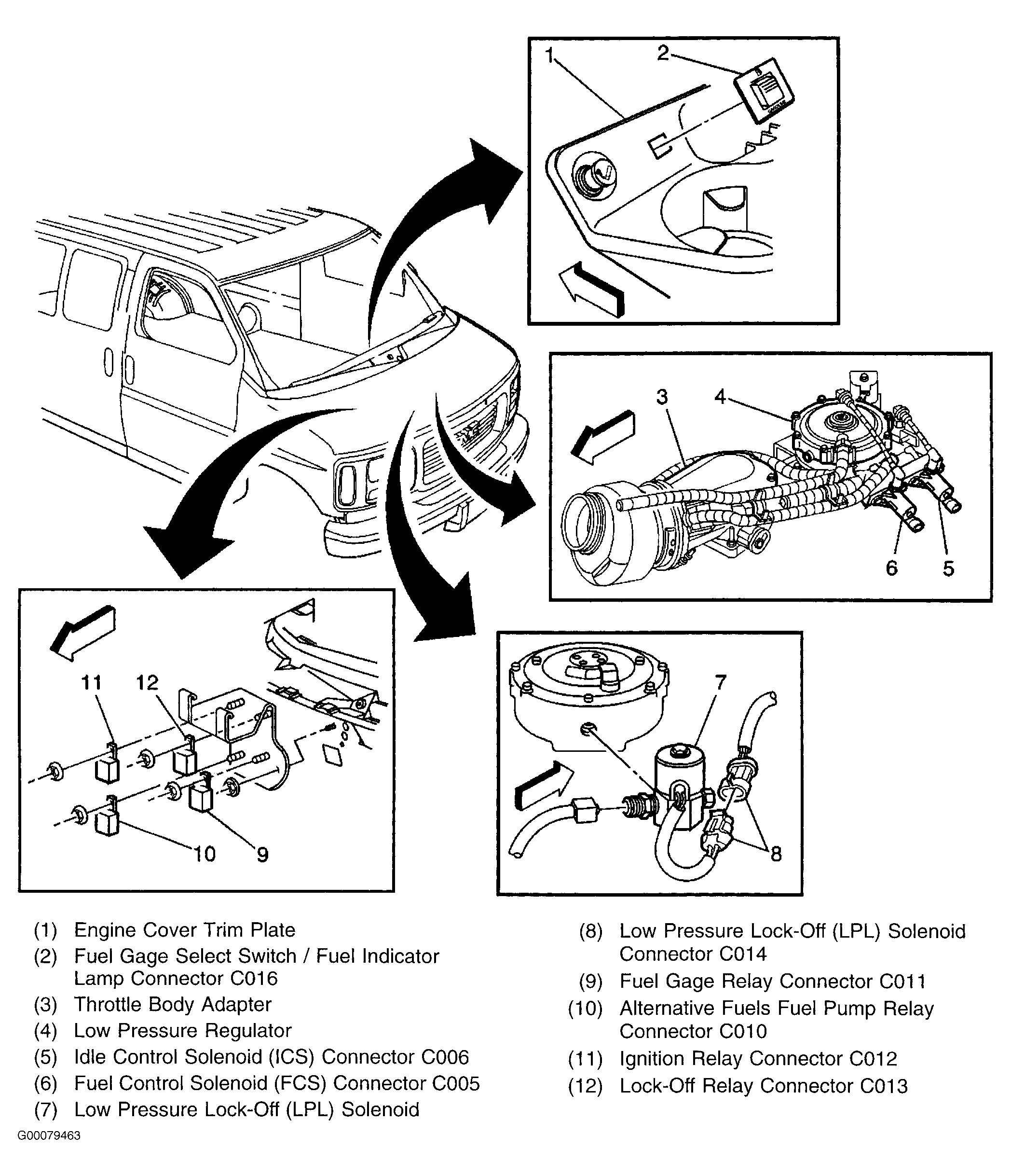

Fig 3: Locating Alternative Fuels Relays, Fuel Control Solenoid, Fuel Gauge Select Switch, Idle Control Solenoid, Low Pressure Lock-Off Solenoid & Low Pressure Regulator

Courtesy of GENERAL MOTORS CORP.

Fig 4: Locating CKP & Knock Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating ECT Sensor & EGR Valve

Courtesy of GENERAL MOTORS CORP.

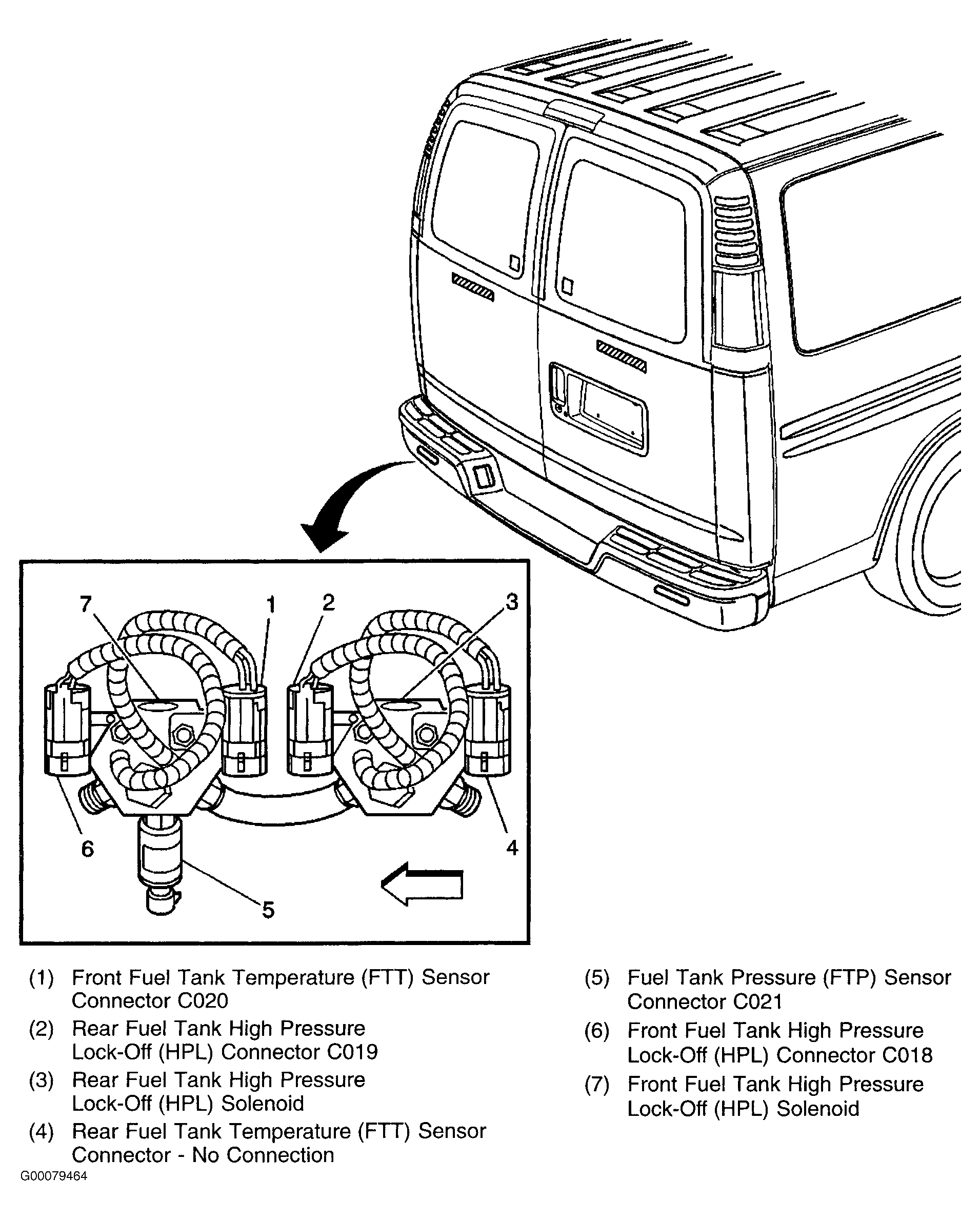

Fig 6: Locating Fuel Tank High Pressure Lock-Off Solenoids, Fuel Tank Pressure Sensor & Fuel Tank Temperature Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 7: Locating Heated Oxygen Sensors (Heavy Duty)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Locating IAT & MAF Sensors

Courtesy of GENERAL MOTORS CORP.
