Automatic Transmission/Transaxle

Specifications

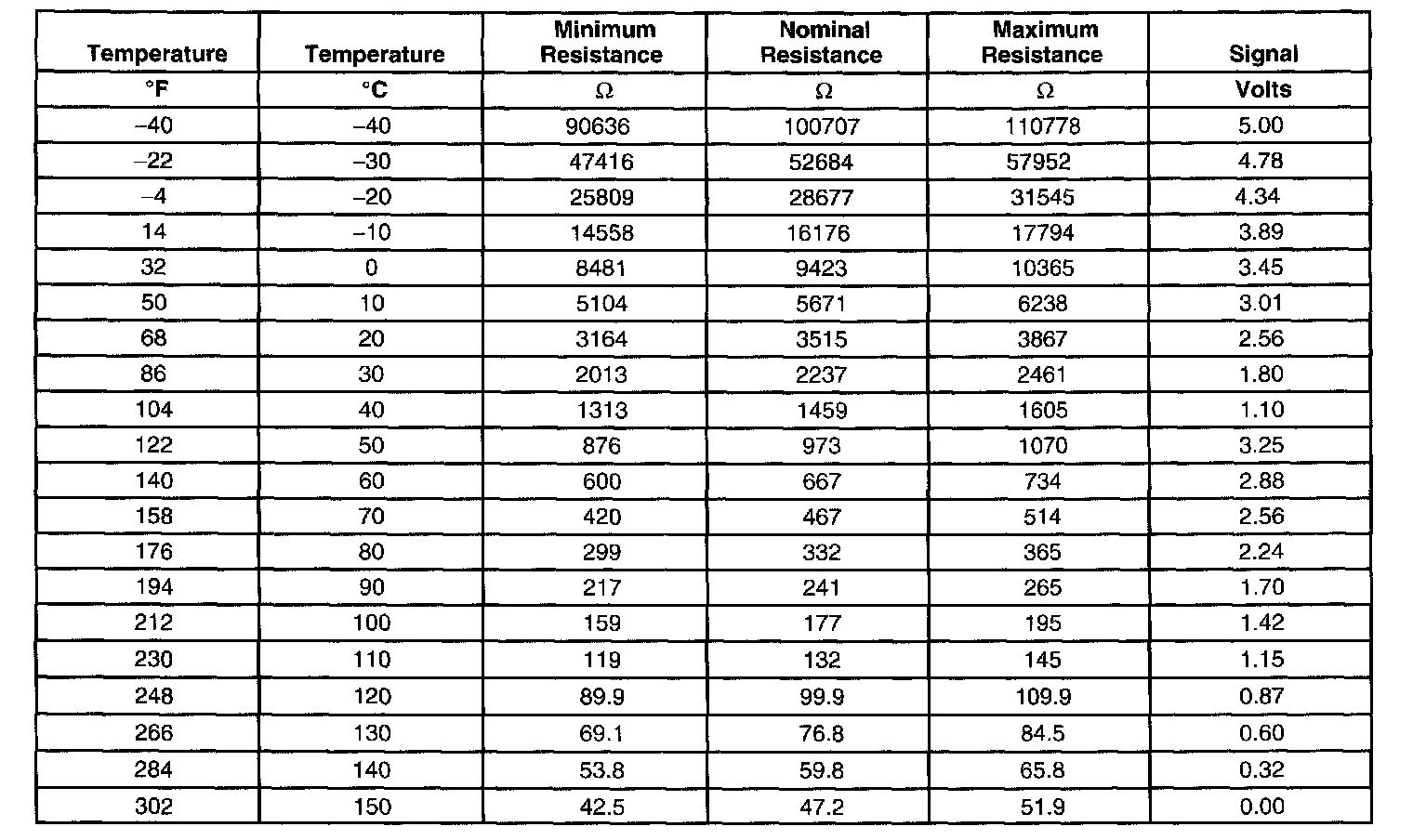

Transmission Fluid Temperature (TFT) Sensor Specifications






Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic

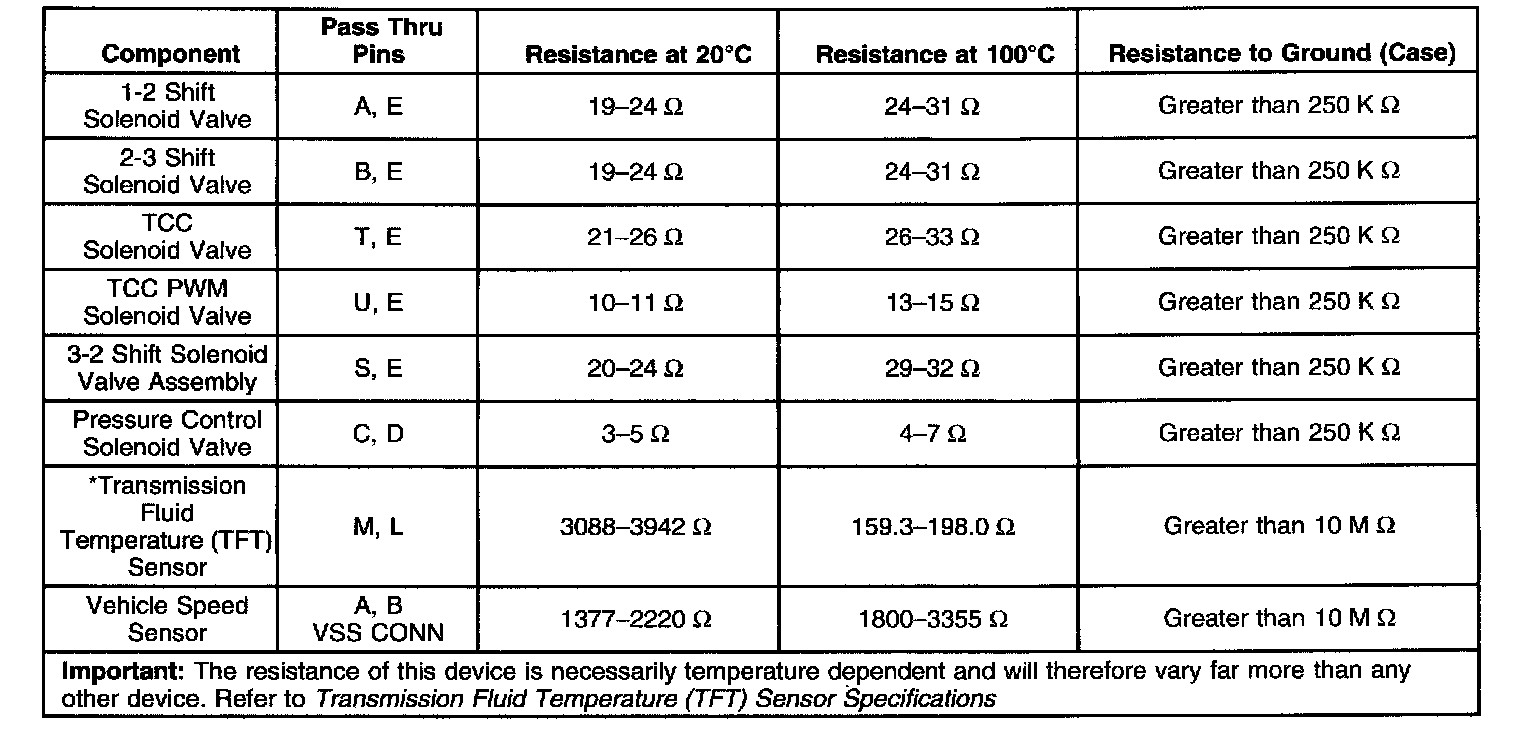

Component Resistence
