Automatic Transmission/Transaxle

DISASSEMBLED VIEWS

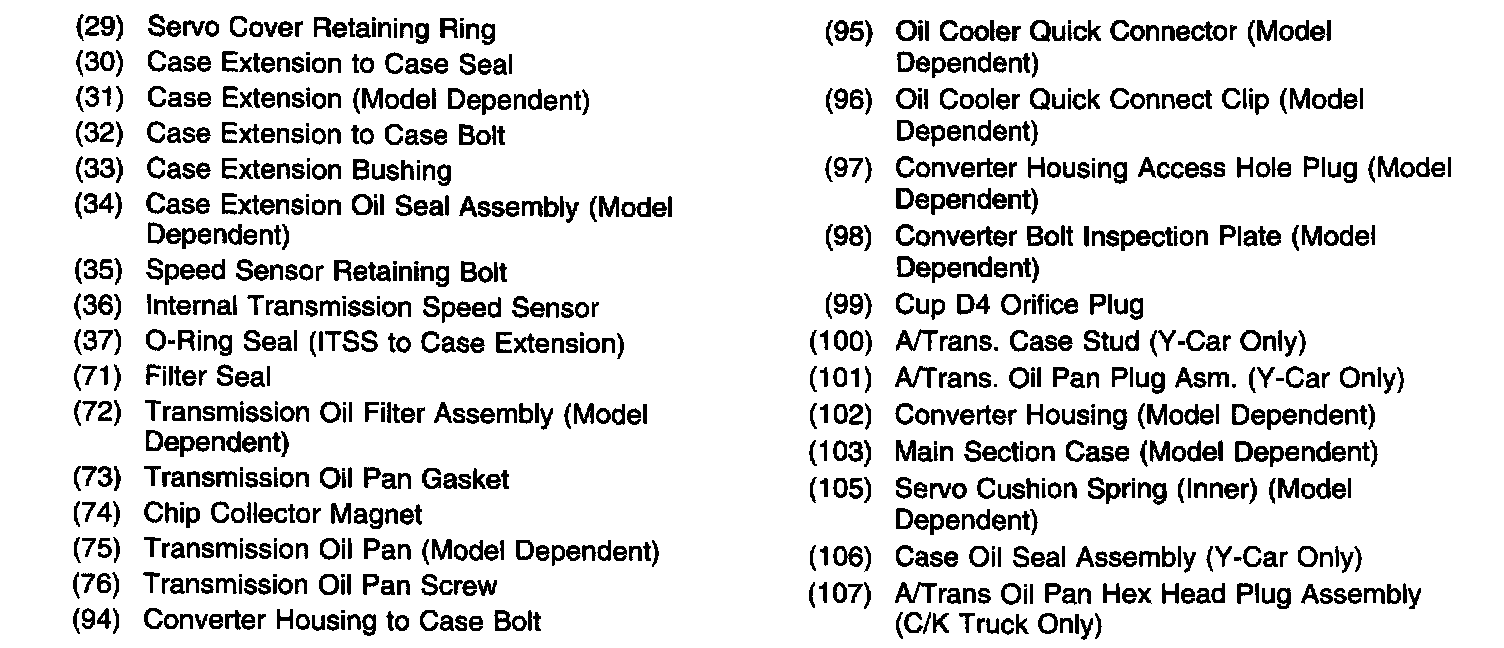

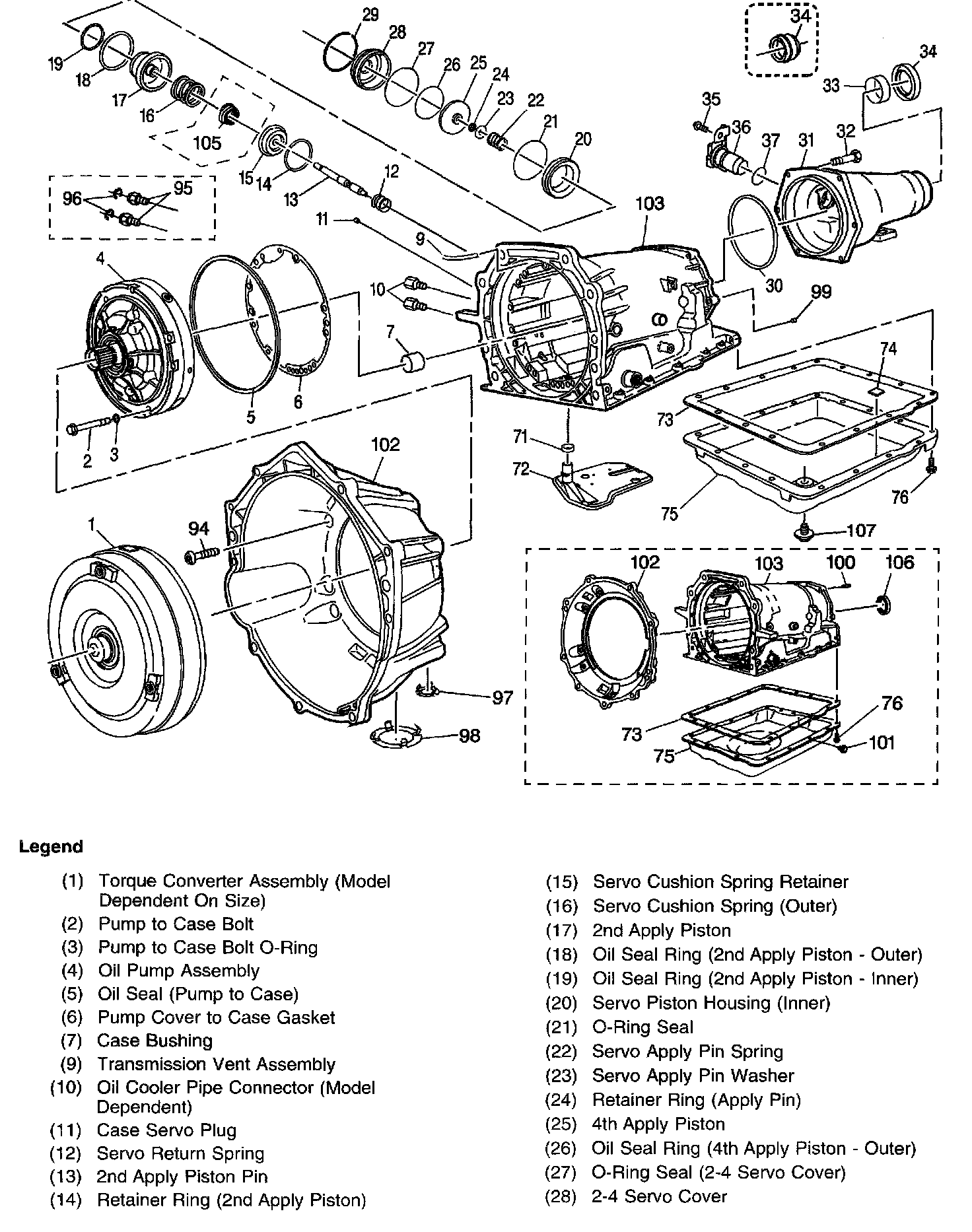

Case and Associated Parts

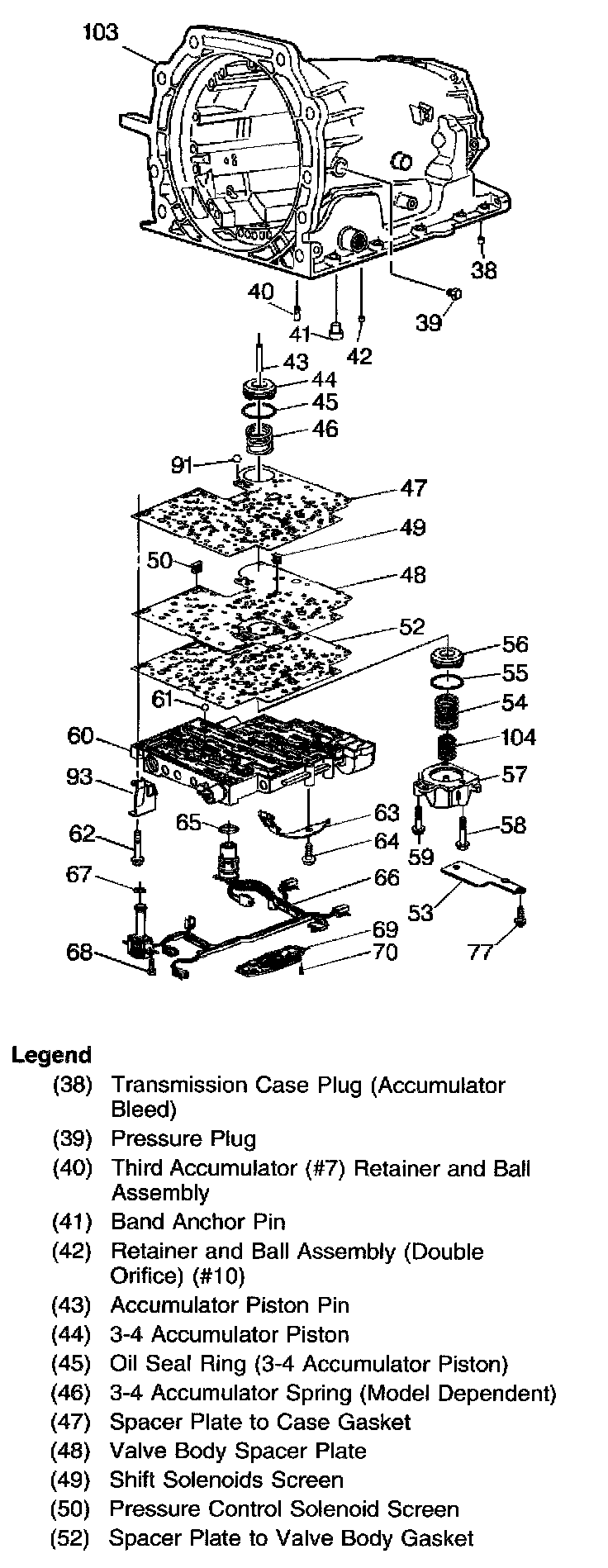

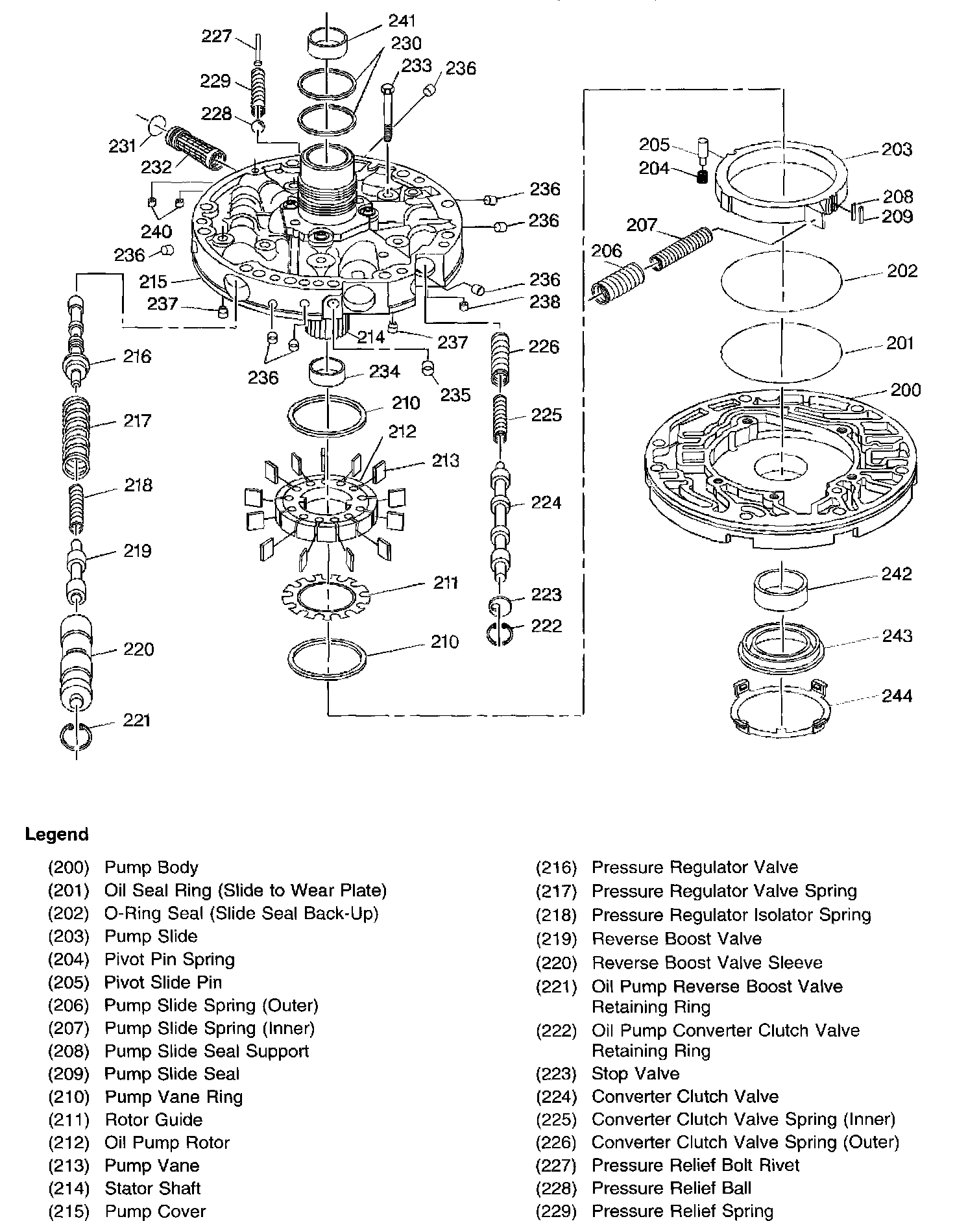

Oil Pump Assembly

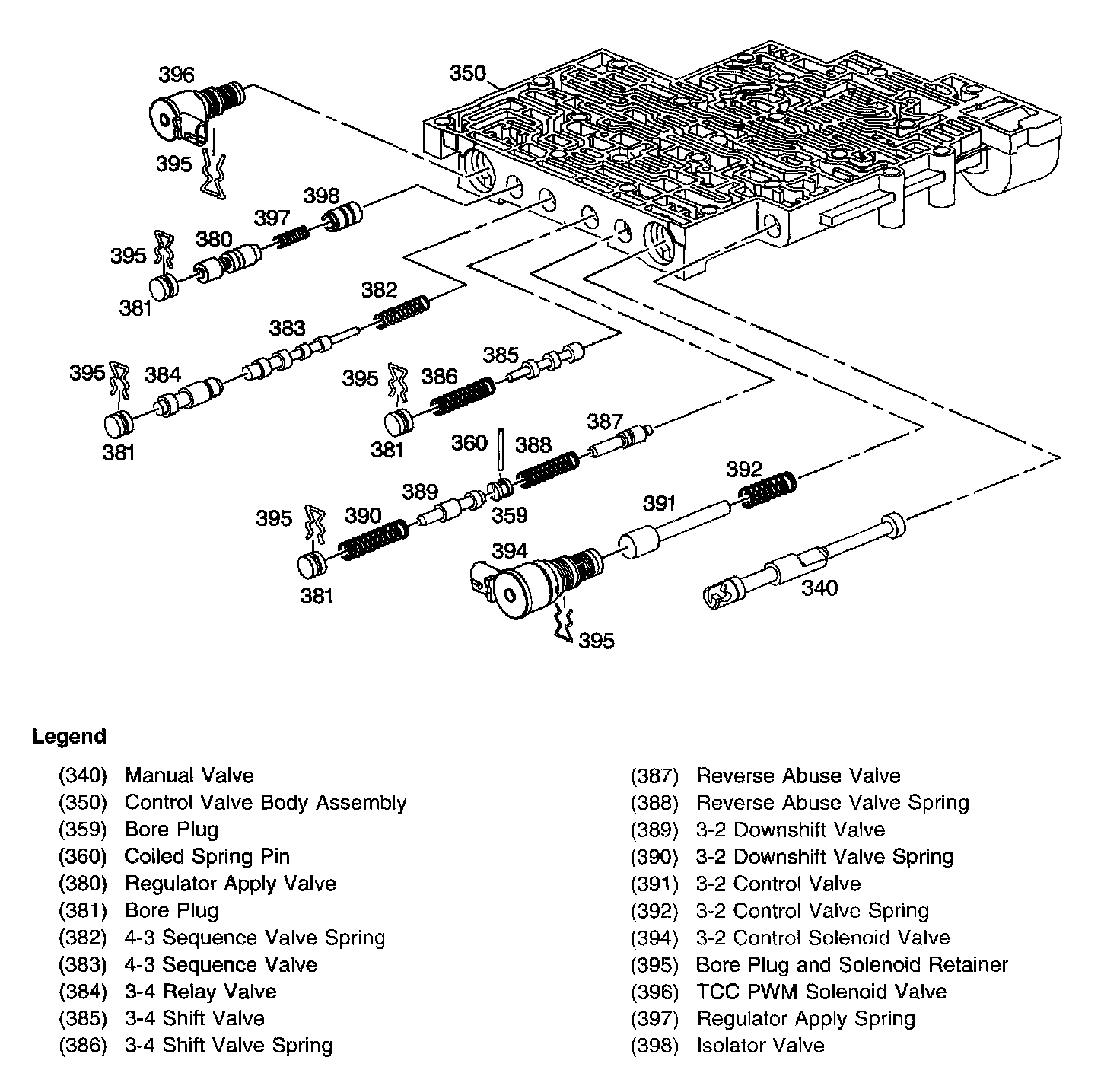

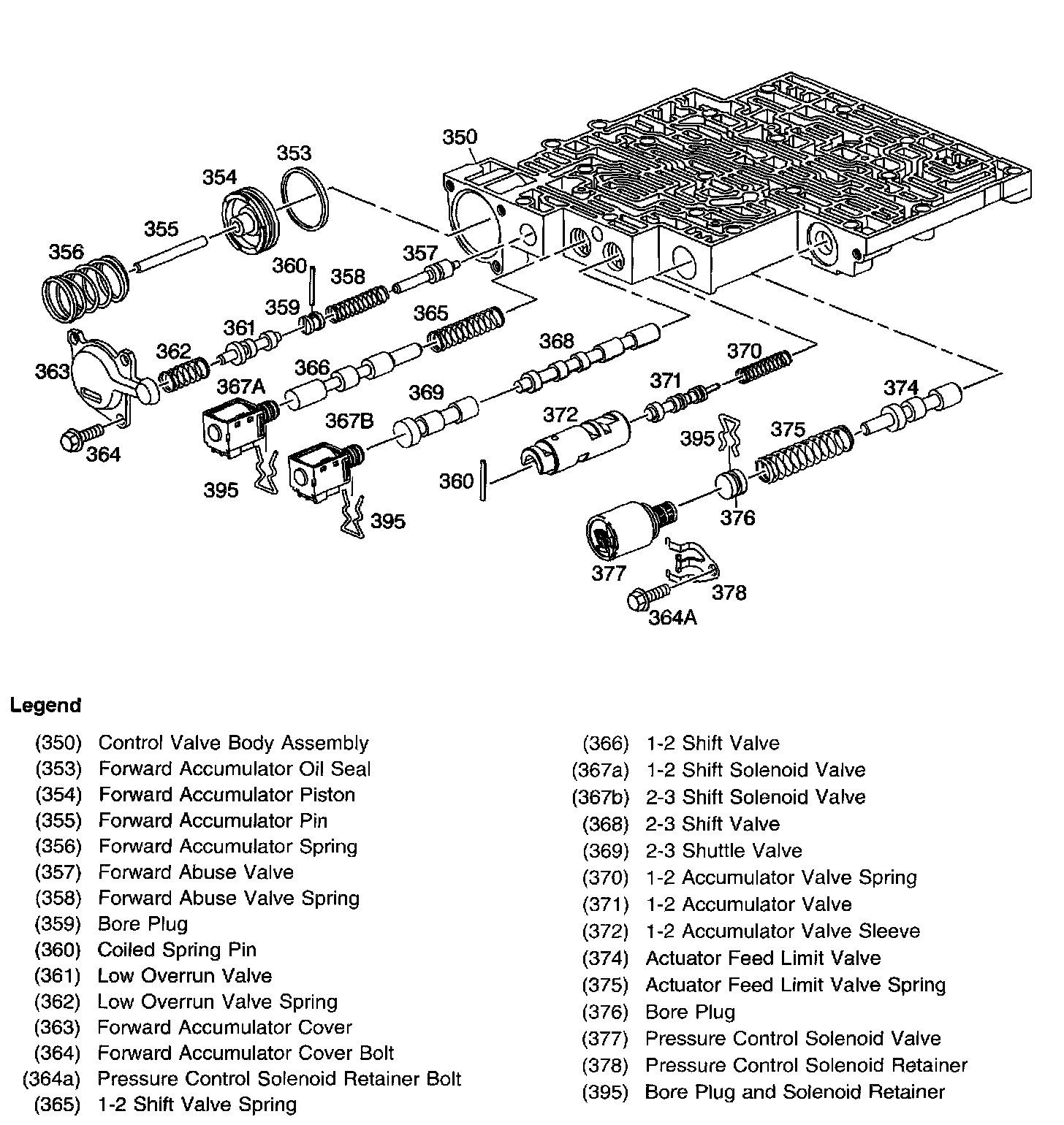

Control Valve Body Assembly

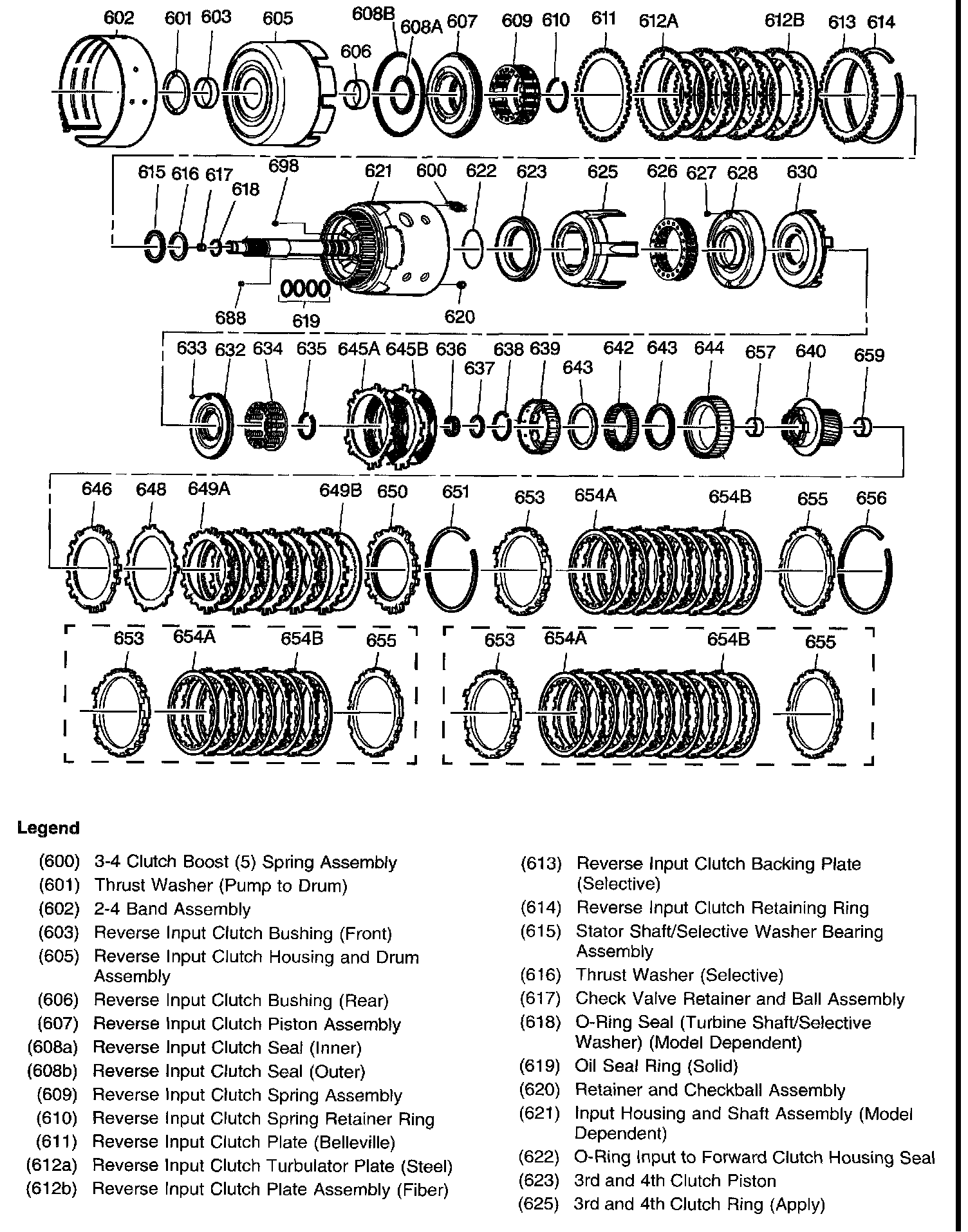

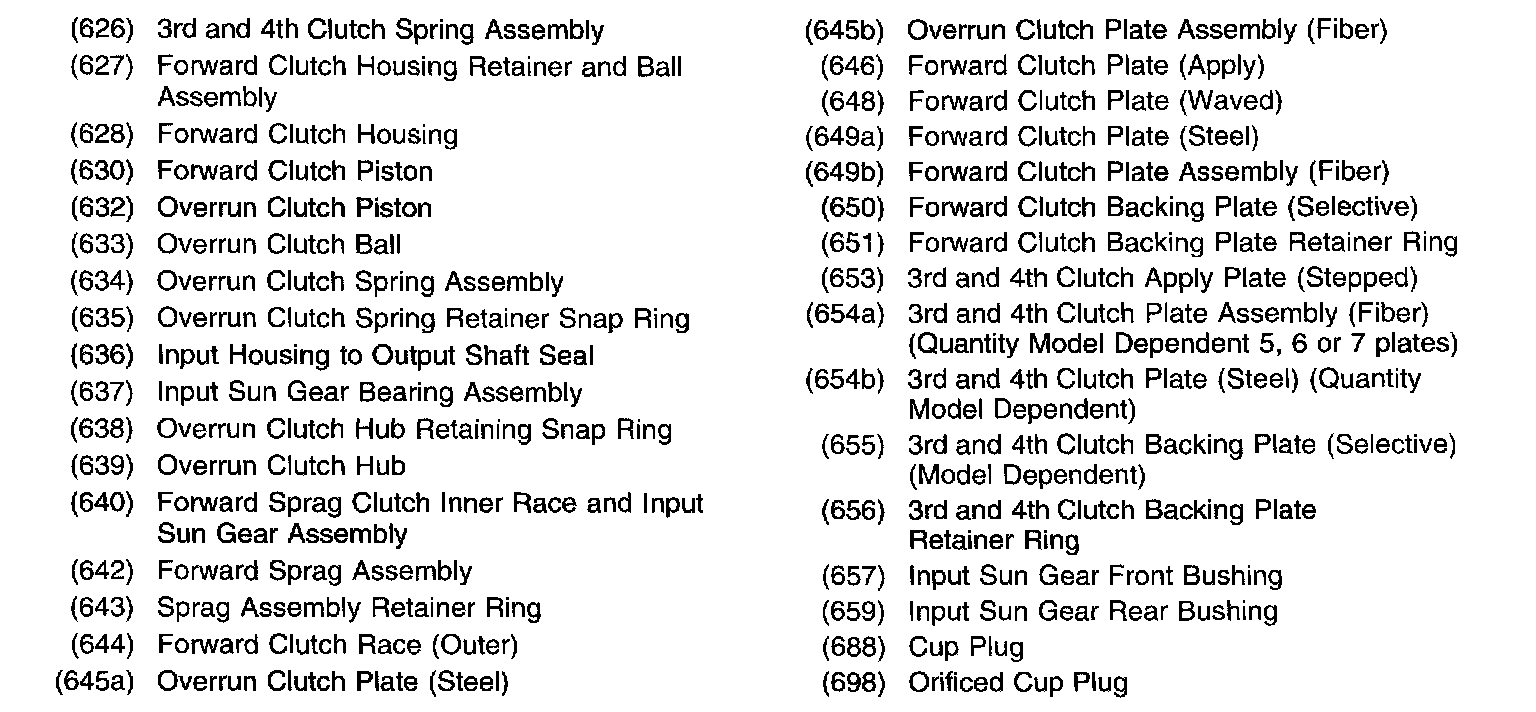

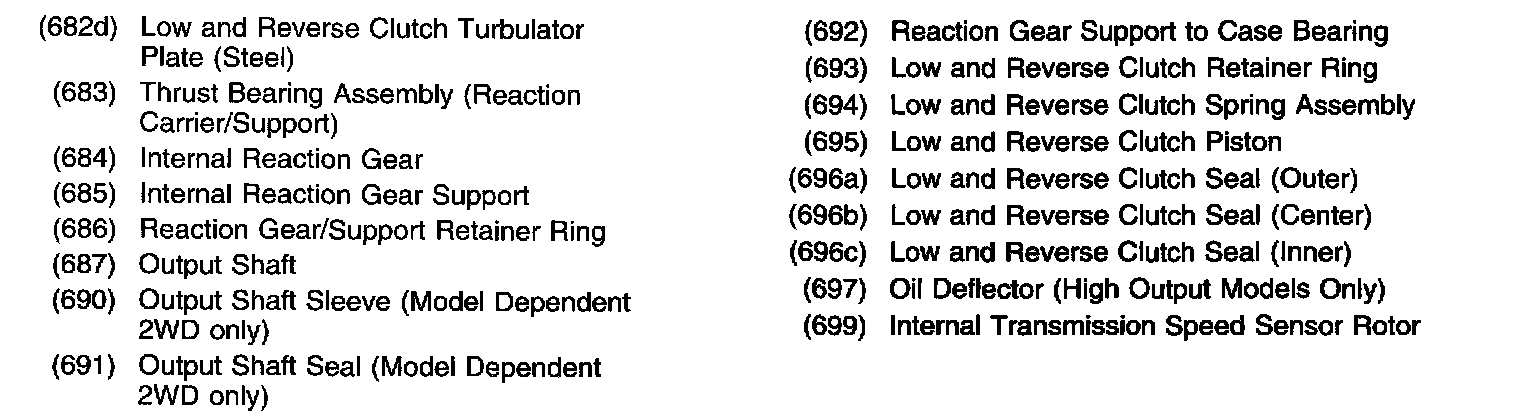

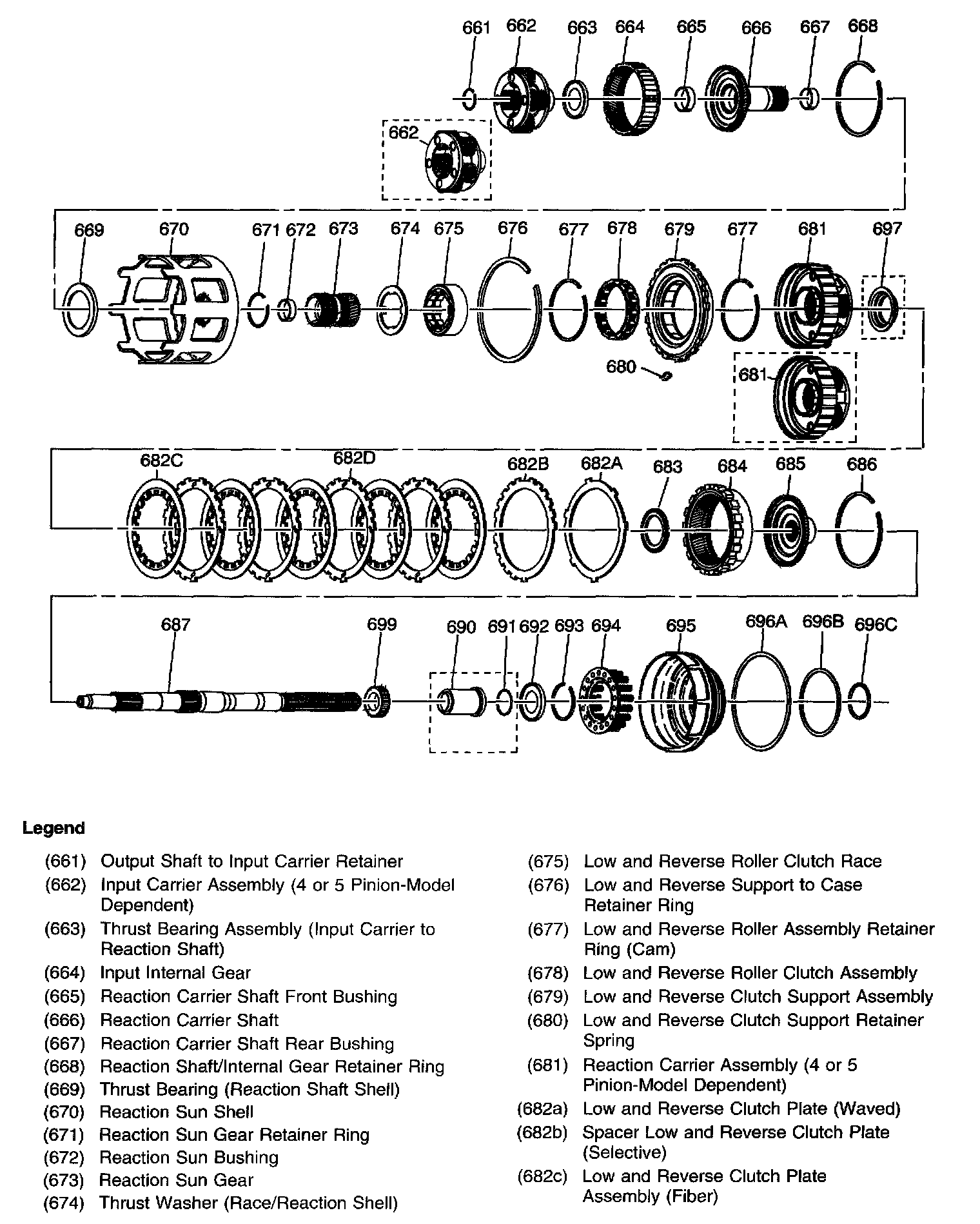

Internal Parts

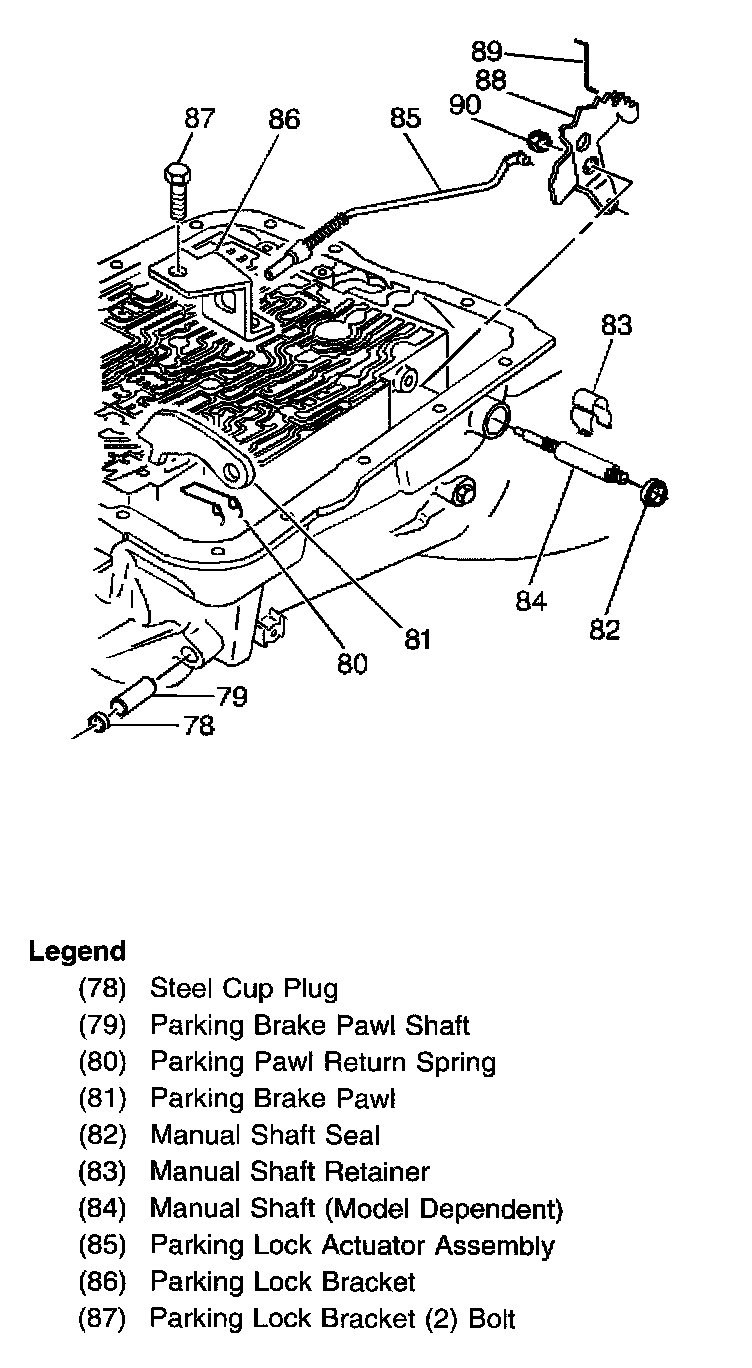

Parking Lock and Manual Shift Shaft Assembly
