Home >> Chevrolet >> 2002 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Module
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

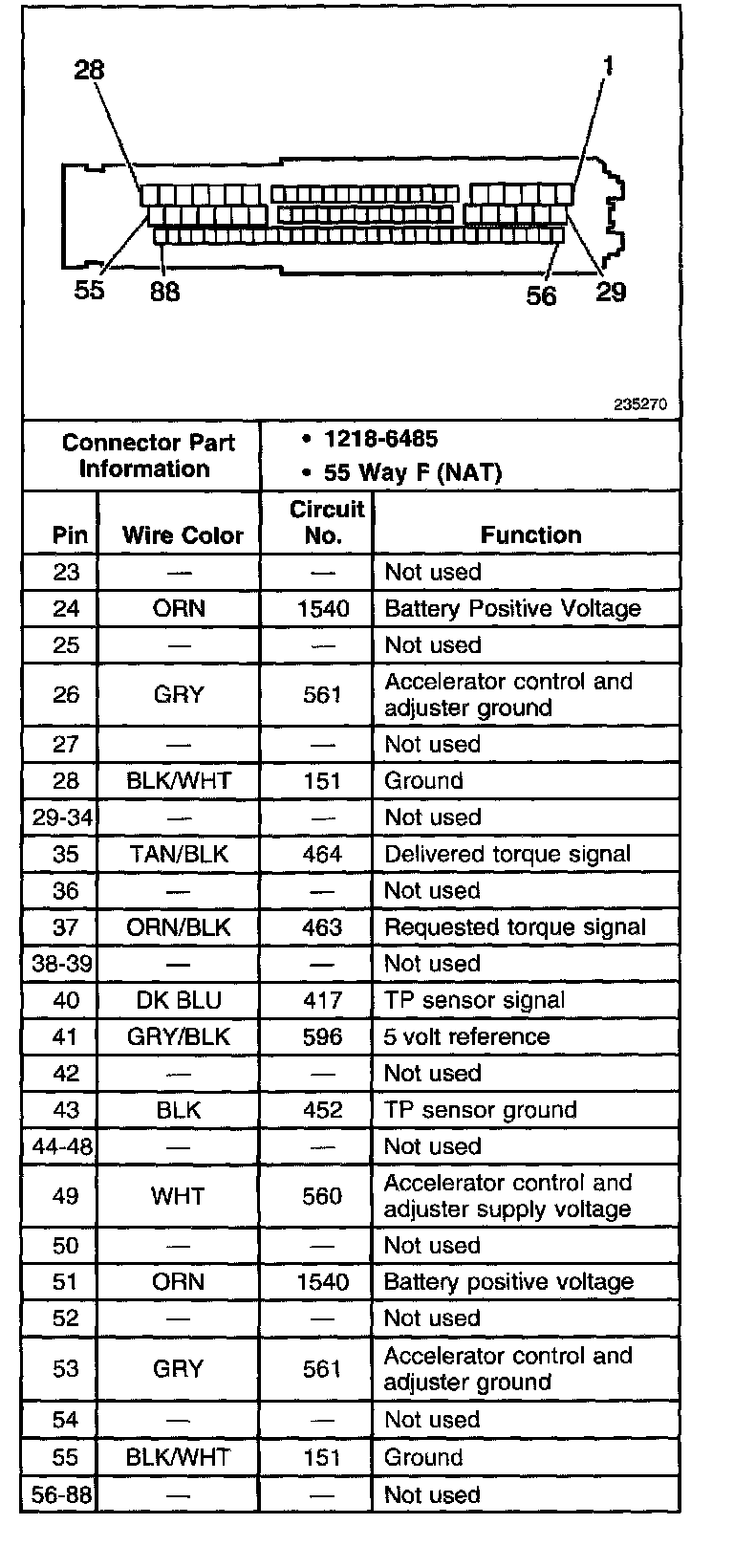

Traction Control Module

Accelerator and Servo Control Module (ASM)





Part 1 of 2





Part 2 of 2
