Installation Procedure

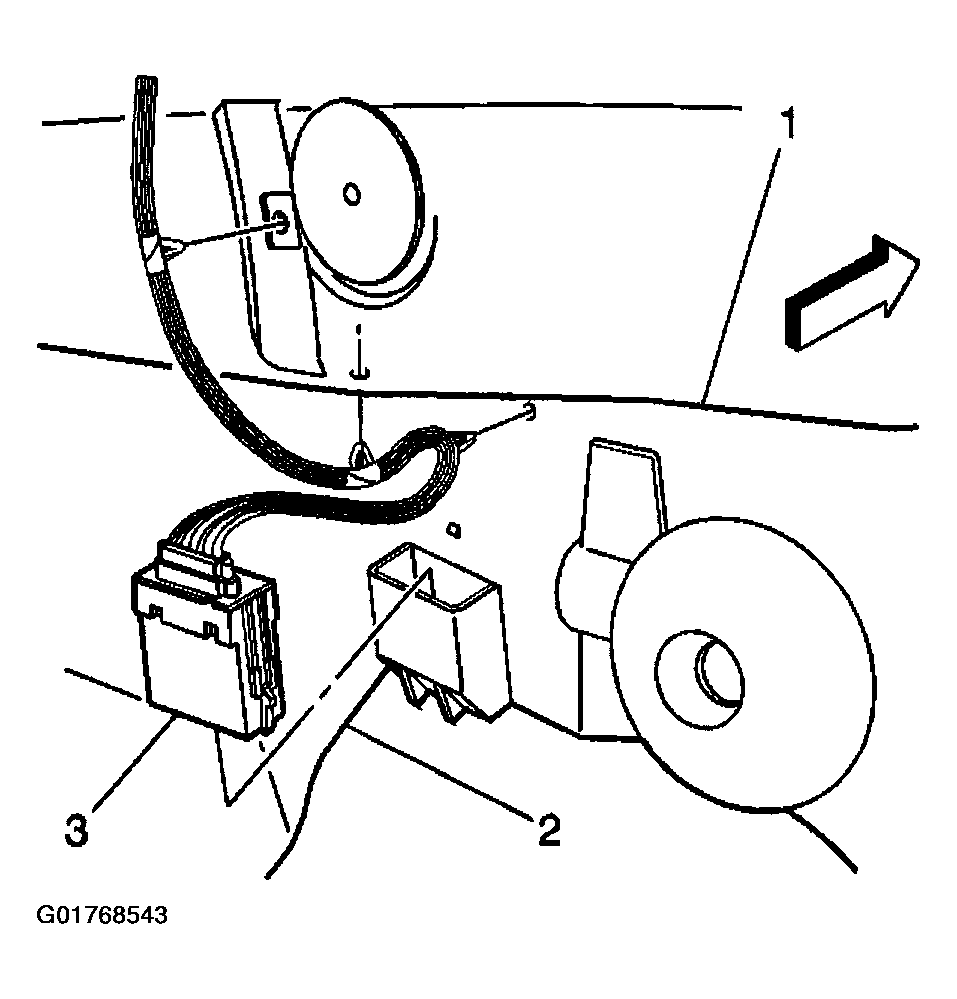

- Connect the wire harness to the power window control module (3).
- Install the power window control module (3) to the molded pocket in the dash mat (1).
- Install the wire harness to the dash mat (1) above the floor tunnel by pushing on the rosebud clips.
- Install the driver side closeout insulator (1). Refer to LOCK ACTUATOR REPLACEMENT - Door .
Courtesy of GENERAL MOTORS CORP.
