System Specifications

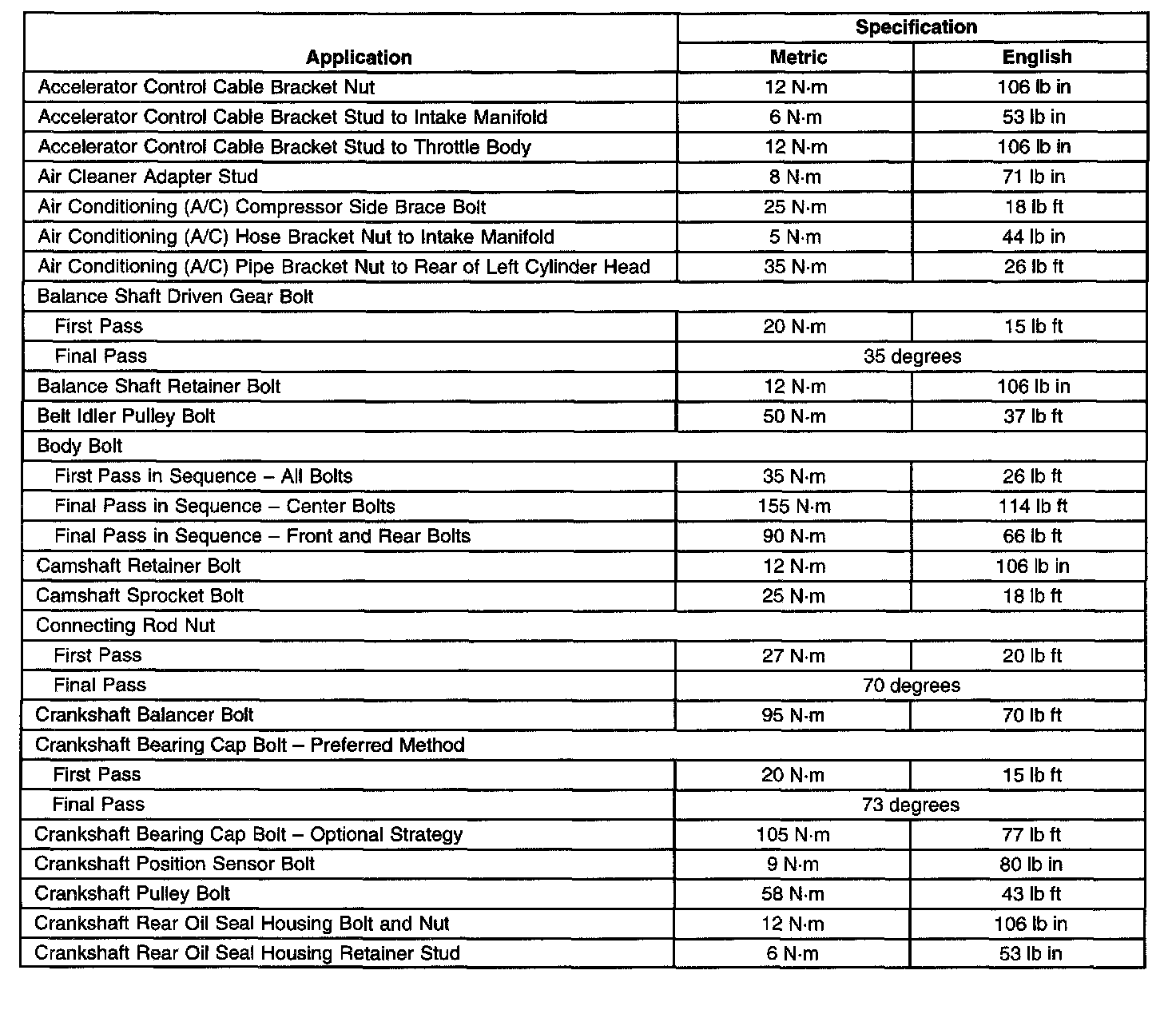

Fastener Tightening Specifications

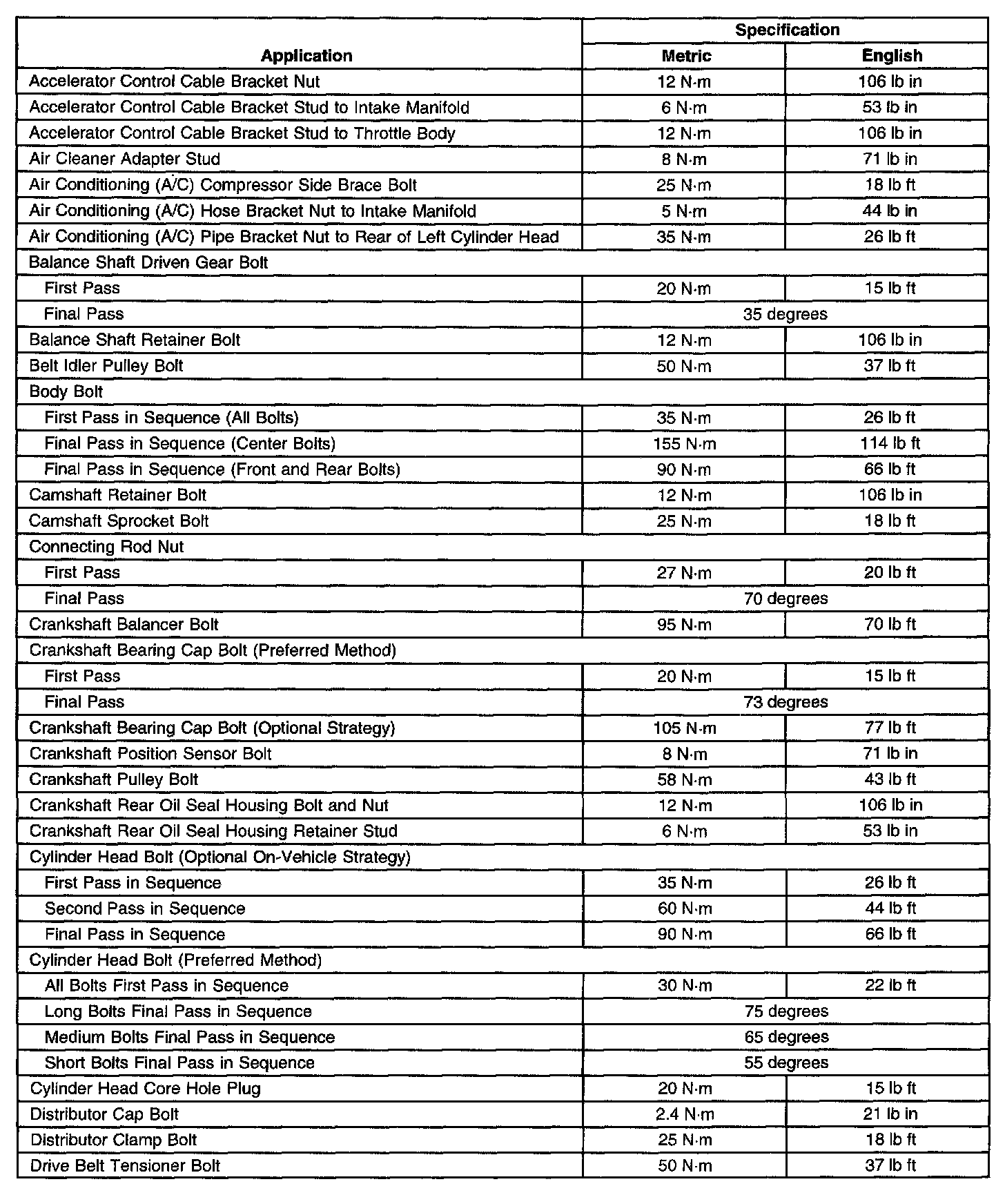

Part 1 of 3

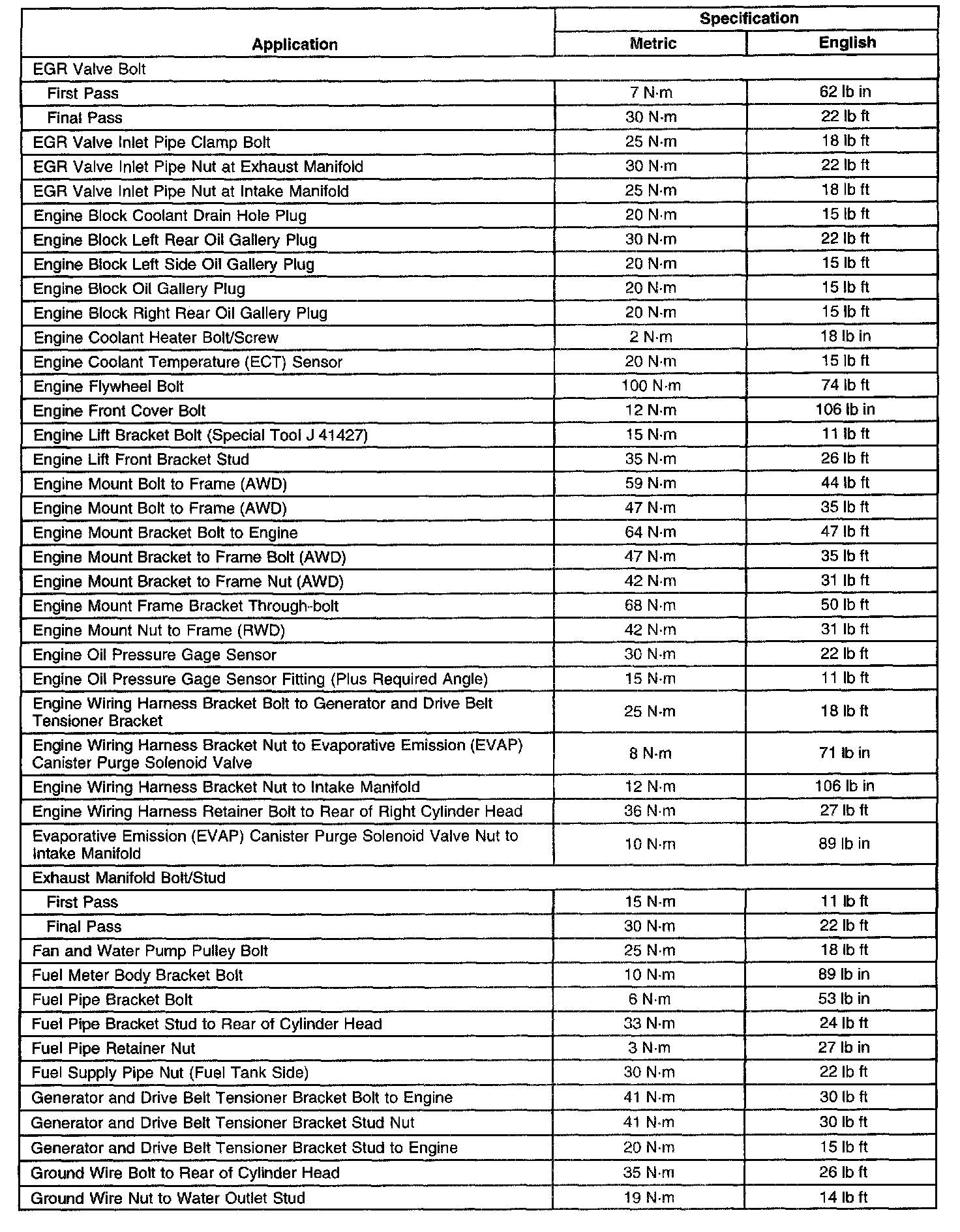

Part 2 of 3

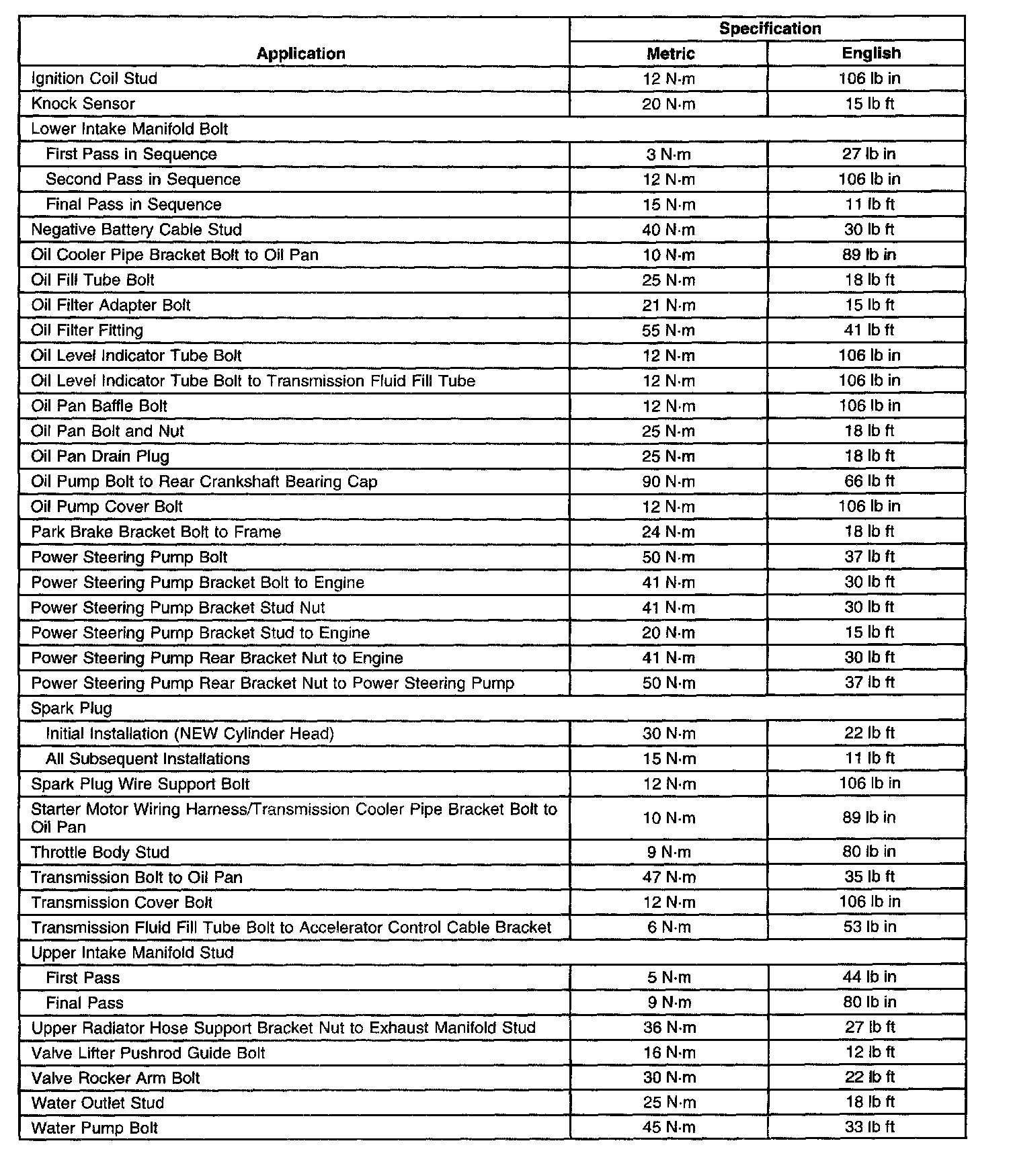

Part 3 of 3

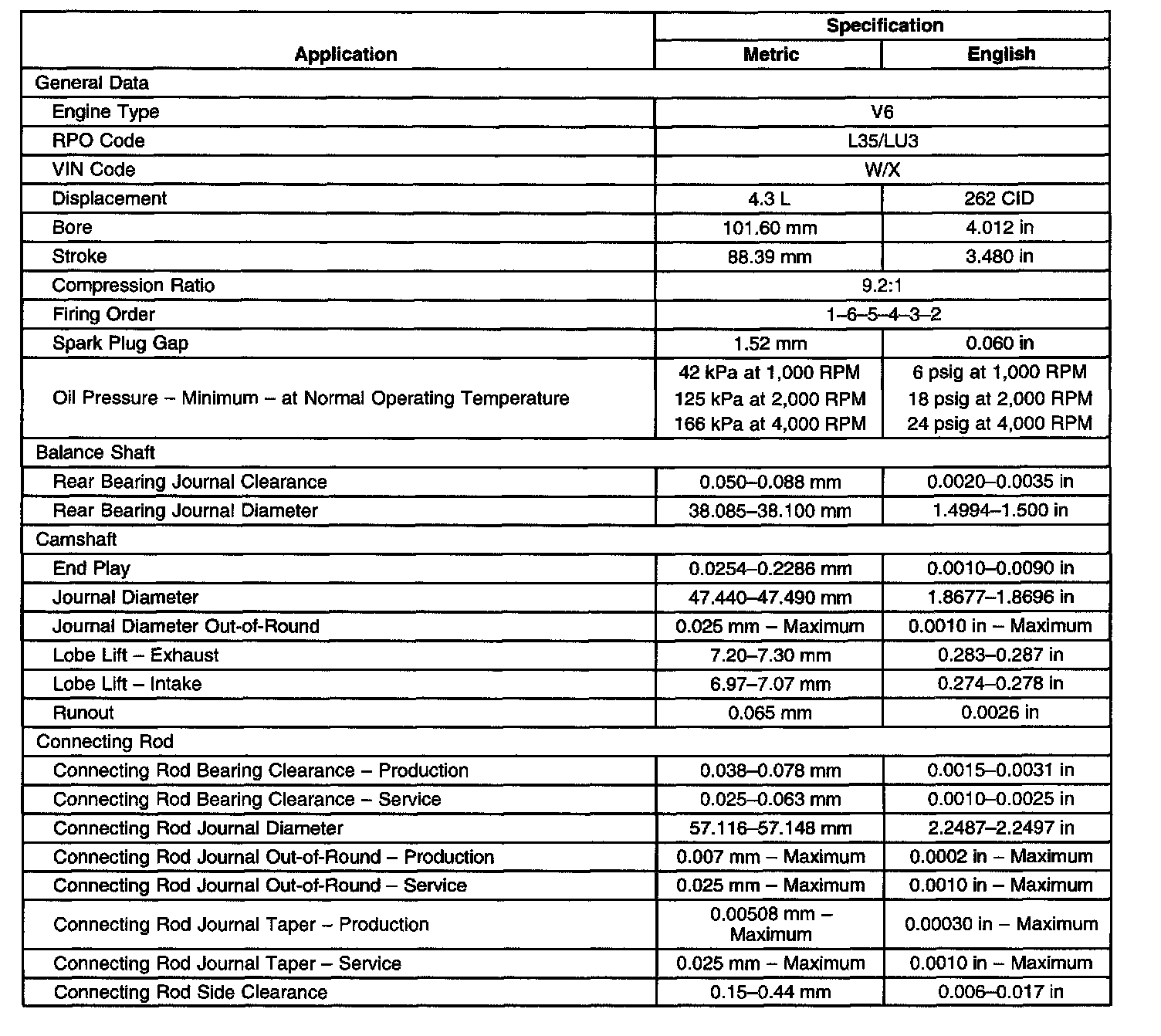

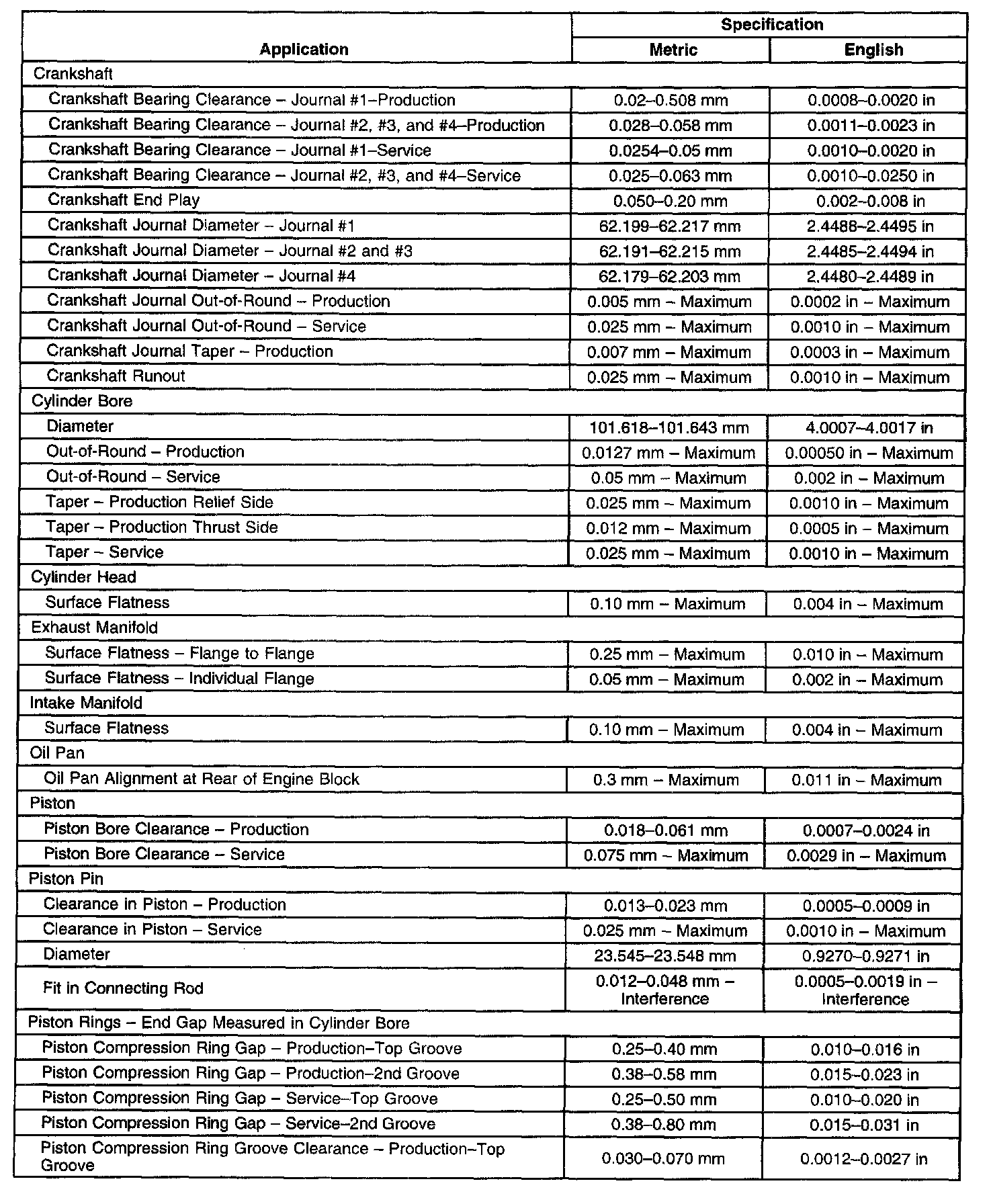

Engine Mechanical Specifications






Unit Repair

Fastener Tightening Specifications

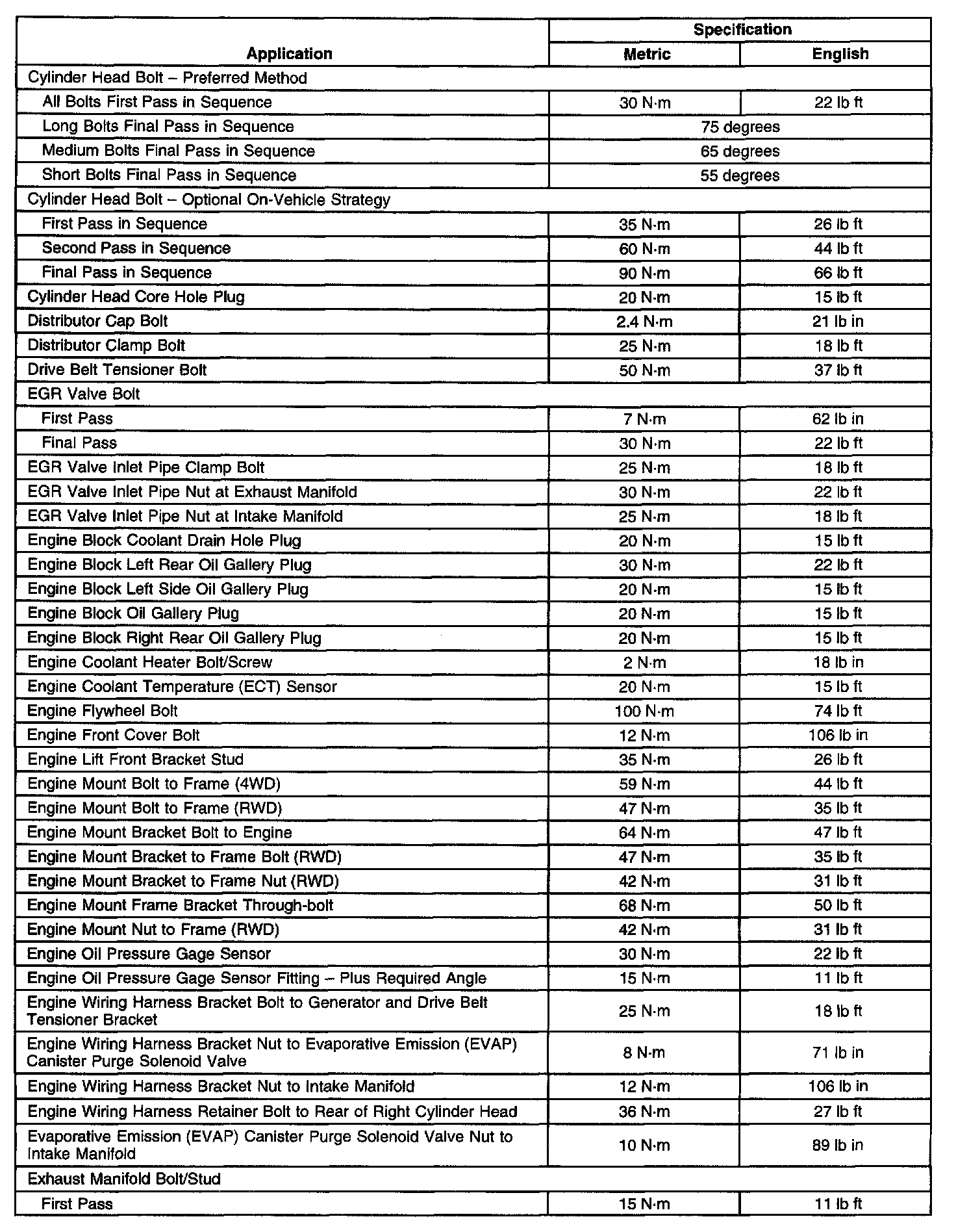

Part 1 of 4

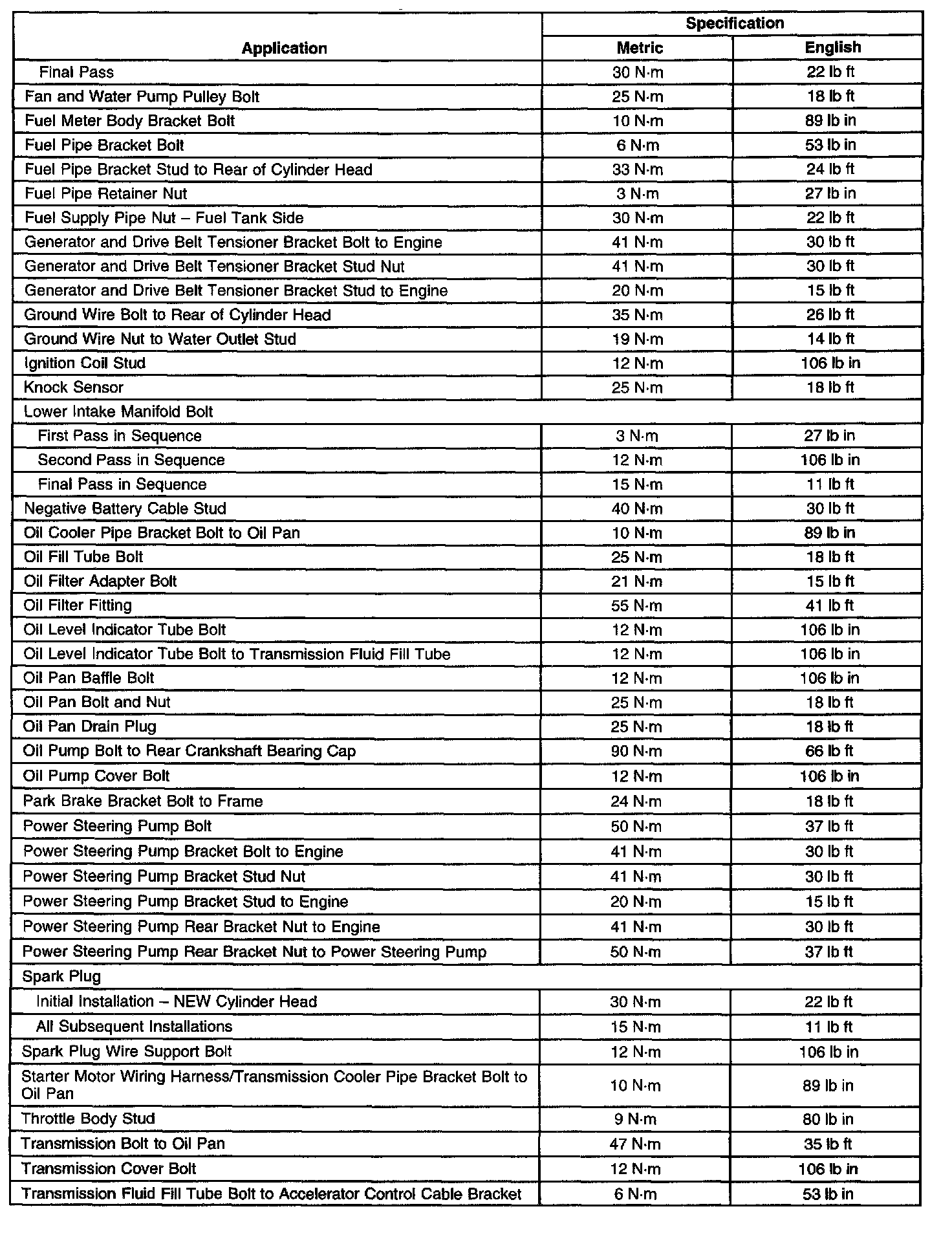

Part 2 of 4





Part 3 of 4





Part 4 of 4

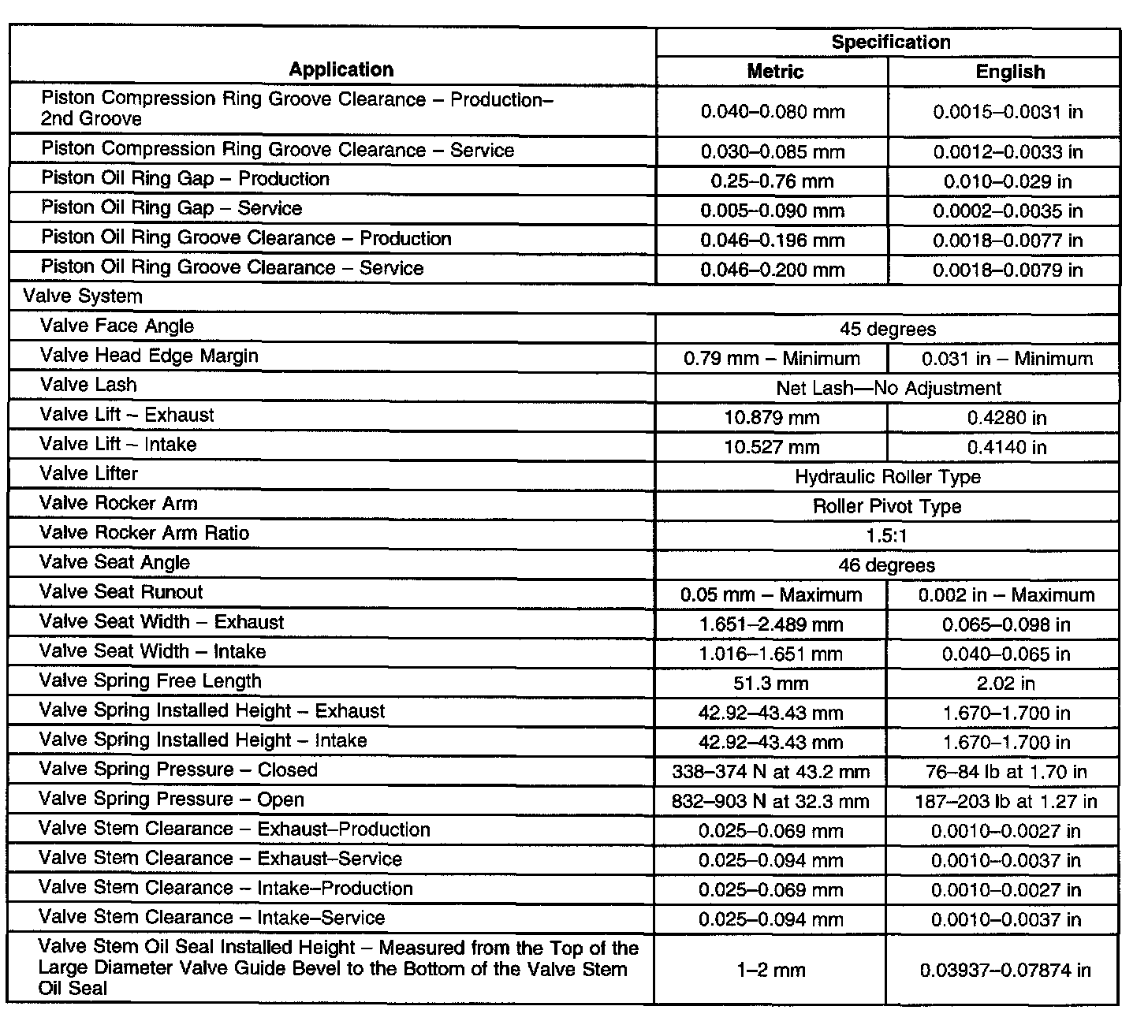

Engine Mechanical Specifications





Part 1 of 3





Part 2 of 3





Part 3 of 3





Engine Flywheel
Refer to: Engine; Overhaul Service and Repair
