System Specifications

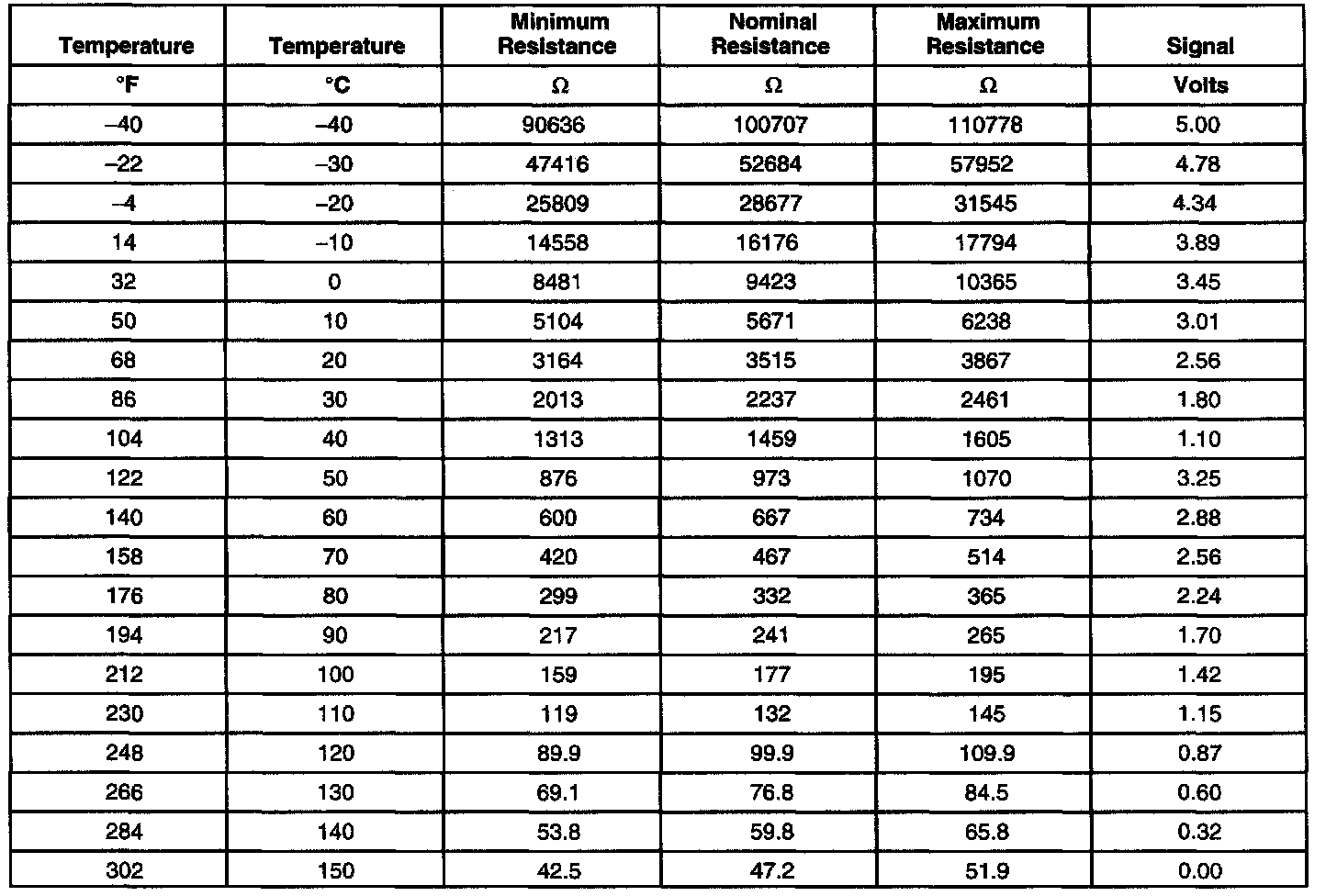

Transmission Fluid Temperature (TFT) Sensor Specifications





Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic





Transmission Range Switch Logic

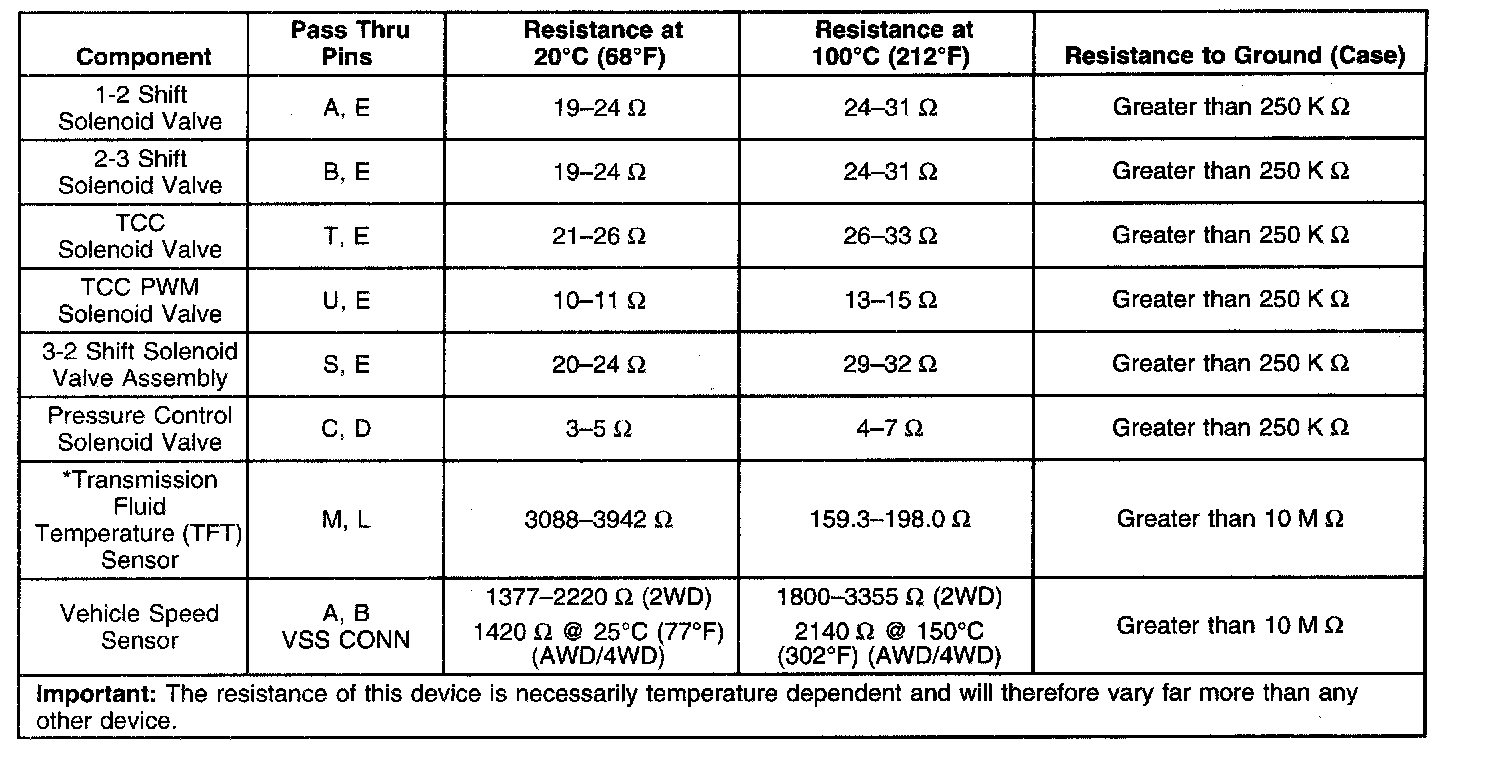

Component Resistance
